Открытый узел

Deck / Railings, Dry Nutrient Attachment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	5MTM000922	1	Grate	-
2	5MTM001017AB	1	Bracket	-
3	5MTM001018AB	1	Bracket	-
4	5MTP002477	2	Bolt	-
5	H99923	17	Lock Nut	3/8"
6	5MTP000106	4	Lock Nut	-
7	5MTP000105	1	Lock Nut	3/8"
8	5MTP000393	4	Bushing	-
9	5MTP000394	1	Spring	-
10	P000099	2	Bolt	-
11	5MTP002476	1	Bolt	-
12	5MTP000444	2	Strap	LGTH = 23"
13	5MTP000445	1	Strap	LGTH = 21"
14	5MTP000447	1	Strap	LGTH = 60"
15	5MTP000457	1	Cable Kit	-
16	5MTP000458	1	Cap	-
17	5MTP000880	2	Bolt	-
18	5MTP000930	2	Bolt	-
19	5MTP000464	1	Clip	-
20	5MTP000465	1	Pin	-
21	5MTP002478	2	Bolt	-
22	5MTP000098	2	Bolt	-
23	5MTP000467	1	Bolt	-
24	5MTW002490	1	Handrail	Folding Deck
25	5MTW000260AB	1	Platform	-
26	5MTW000261AB	2	Support	-
27	5MTW000262AB	1	Handrail	Deck / Ladder Grab
28	5MTW002491	1	Tape	SUB FOR 5MTW000263AB; Rigid Deck
29	5MTP000473	2	Tape	-
30	5MTA002358AB	1	Bracket	SUB FOR 5MTA002059AB
31	5MTM002345AB	1	Bracket Kit	-
32	5MTP000091	4	Bolt	-
33	5MTP000103	4	Lock Nut	-
34	5MTP000111	2	Washer	-
35	5MTP002479	1	U-Bolt	3/8" X 1–5/8" X 4"
36	5MTP000111	1	Washer	3/8"
37	5MTP000199	2	Tape	-
38	5MTP002883	1	Eyebolt	-
39	5MTP002408	1	Strap	-
40	5MTP002884	1	Hook	-

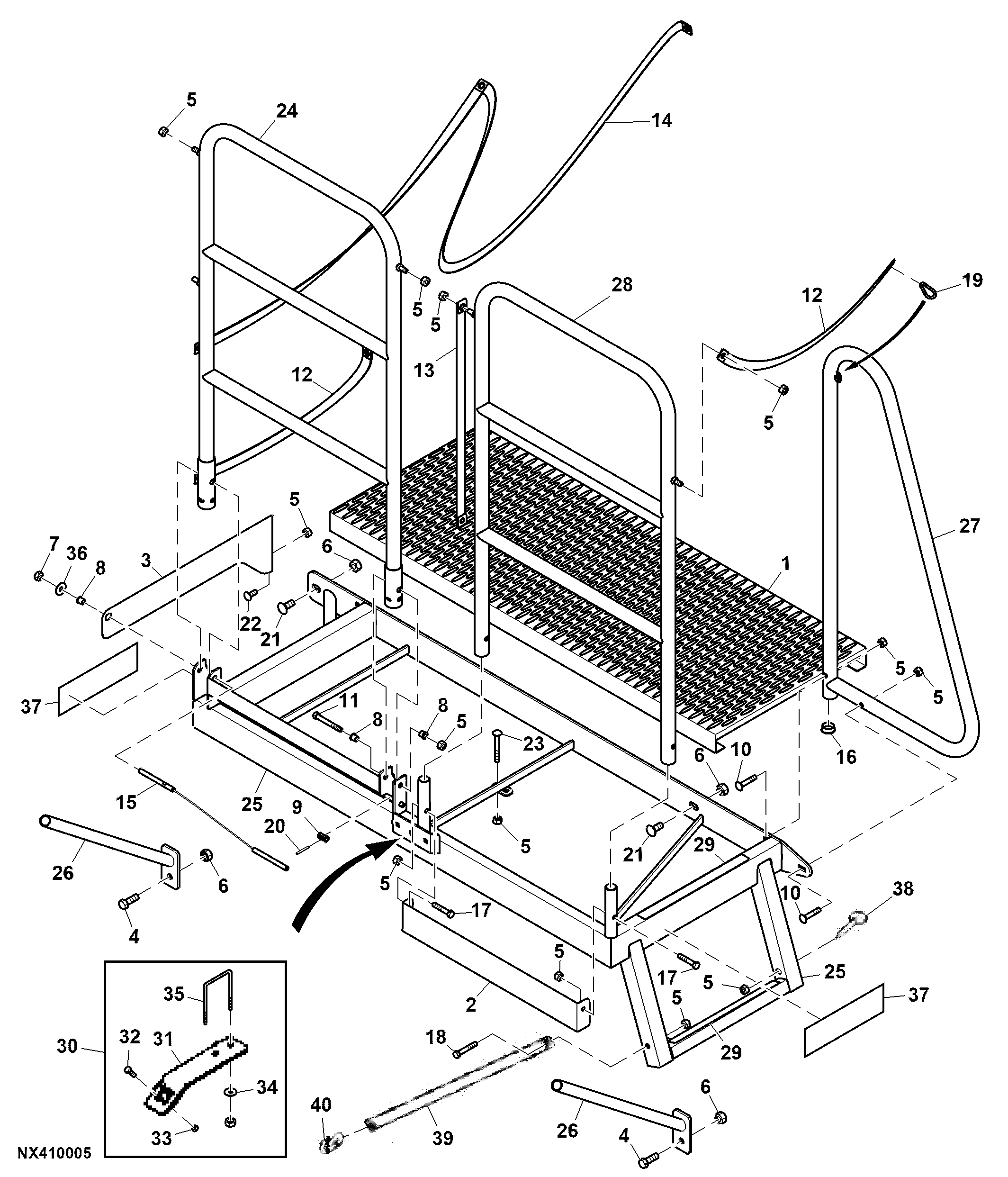

Deck / Railings, Dry Nutrient Attachment

Нет текстового описания
