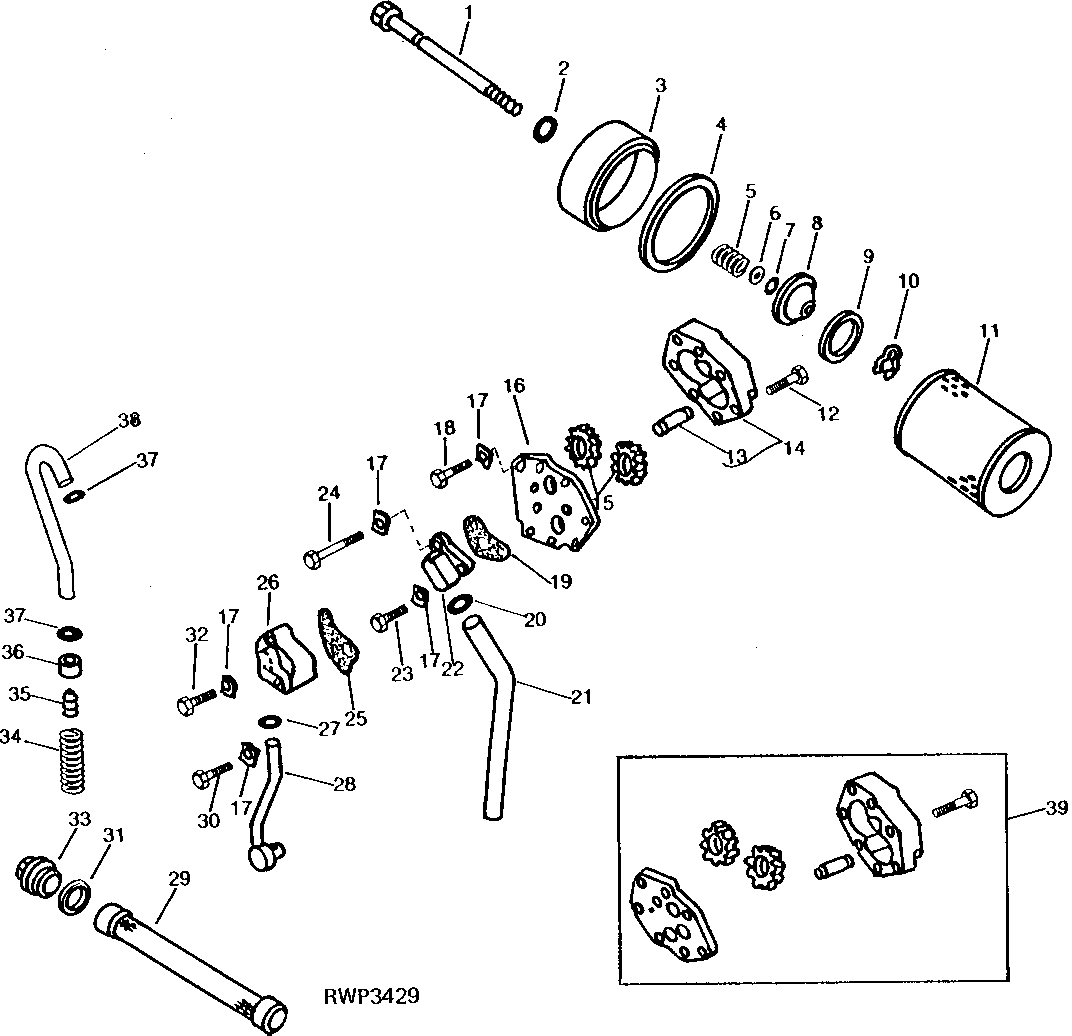

TRANSMISSION OIL FILTER AND OIL PUMP (SYNCRO-RANGE) [02C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54750	1	SCREW	(SUB FOR R26322 OR R39795)
2	R394R	1	O-Ring	-
3	R39794	1	COVER	-
4	R34733	1	WASHER	-
5	R66064	1	SPRING	(SUB FOR R1769R)
6	24H1227	1	Washer	17/32" X 13/16" X 0.060"
7	R394R	1	O-Ring	-
8	R65892	1	RETAINER	(SUB FOR R28593)
9	R28594	1	WASHER	(NO LONGER AVAILABLE)
10	R32507	1	Snap Ring	-
11	AR75603	1	FILTER ELEMENT	(SUB FOR AR28271 OR AR75601)
12	19H1849	2	Cap Screw	5/16" X 1-1/4"
13	R54380	1	Dowel Pin	(SUB FOR R26015 OR T25317)
14	AR32186	1	HOUSING	(MARKED R33426) (NO LONGER AVAILABLE)
15	AR79582	1	GEAR	(SUB FOR AR26942)
16	R33435	1	COVER	(NLA)
17	T13857	6	LOCK PLATE	-
18	19H1913	1	Cap Screw	5/16" X 2-1/4"
19	R33441	1	GASKET	-
20	R56462	1	O-Ring	-
21	R33433	1	OIL TUBE	-
22	R33429	1	PUMP	INLET
23	19H1849	1	Cap Screw	5/16" X 1-1/4"
24	19H1949	1	Cap Screw	5/16" X 2-1/2"
25	R33438	1	GASKET	-
26	R33428	1	PUMP	OUTLET (NLA)
27	A3917R	1	O-Ring	-
28	AR32188	1	OIL LINE	-
29	R53169	1	Screen	(NYLON)
29	AR26375	1	SCREEN	(STEEL)
30	19H1897	1	Cap Screw	5/16" X 3-3/4"
31	A4808R	1	WASHER	-
32	19H3552	1	Cap Screw	5/16" X 1-1/2"
33	R40147	1	FITTING	(SUB FOR A4806R)
34	R26309	1	SPRING	-
35	R26308	1	VALVE	-
36	R26313	1	BUSHING	-
37	R394R	2	O-Ring	-
38	R33432	1	OIL TUBE	-
39	AR33331	1	OIL PUMP	-

TRANSMISSION OIL FILTER AND OIL PUMP (SYNCRO-RANGE) [02C06]
