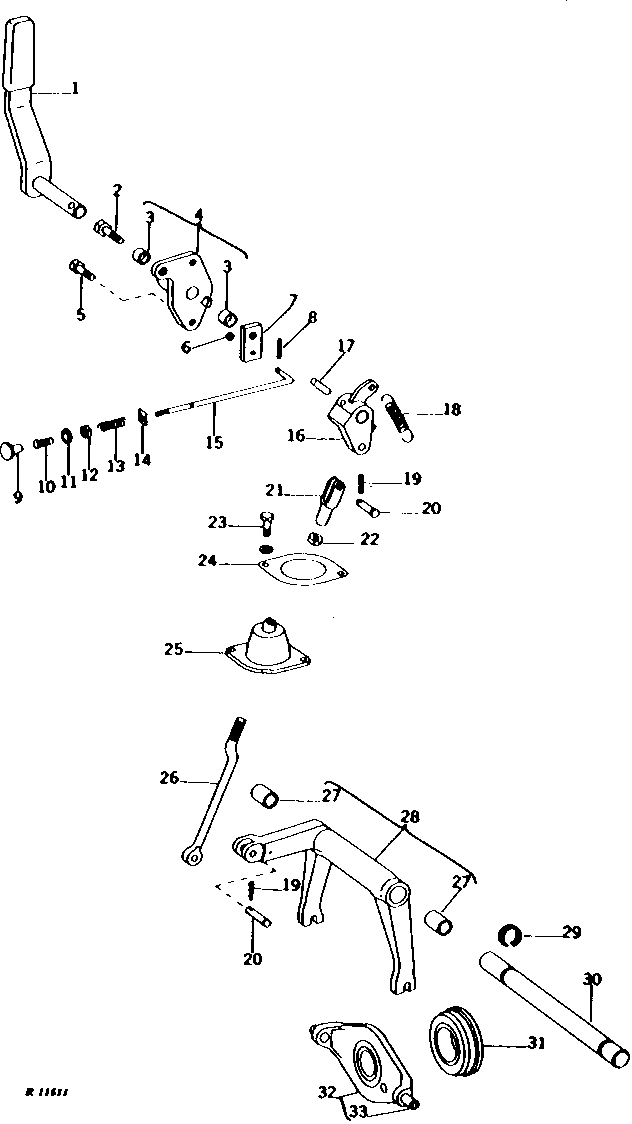

TRANSMISSION DISCONNECT CLUTCH CONTROL (POWER SHIFT) [02B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR34985	1	LEVER	(NLA)
2	19H1815	1	Cap Screw	1/2" X 1-1/4"
3	R27116	2	BUSHING	-
4	AR32130	1	SUPPORT	(MARKED R33149) (NLA)
5	19H2021	2	Cap Screw	3/8" X 5/8"
6	24H1283	1	Washer	7/32" X 1/2" X 0.049"
7	R33892	1	PAWL	(NLA)
8	11M7005	1	Cotter Pin	0.063" X 0.394"
9	R34455	1	KNOB	(NLA)
10	R34454	1	SLEEVE	(NLA)
11	12H310	1	Lock Washer	3/8"
12	14H774	1	Nut	3/8"
13	A4580R	1	Spring	-
14	L31750	1	CLIP	(SUB FOR R27888)
15	R34453	1	HOOK BOLT	-
16	R33153	1	ARM	(NO LONGER AVAILABLE)
17	34H351	1	Spring Pin	3/8" X 1-1/2"
18	R42783	1	EXTENSION SPRING	(SUB FOR R36137)
19	11M7015	2	Cotter Pin	3.200 X 25 MM
20	B178R	2	Pin	(SUB FOR L364T)
21	L300T	1	YOKE	-
22	14H469	1	NUT	7/16"
23	19H2127	2	Cap Screw	5/16" X 7/8"
23	12H303	2	Lock Washer	5/16"
24	R33963	1	STRAP	-
25	R33962	1	BOOT	-
26	R38471	1	ROD	(SUB FOR R38163) (NLA)
27	R27320	2	BUSHING	-
28	AR32140	1	FORK	(MARKED R33195)
29	B169R	2	SNAP RING	-
30	R33194	1	SHAFT	-
31	AM3983T	1	THRUST BEARING	(SUB AR41942, THIS APPLICATION)
32	AR38284	1	CRADLE	(MARKED R38162) (NLA)
33	R35075	2	QUICK LOCK PIN	-

TRANSMISSION DISCONNECT CLUTCH CONTROL (POWER SHIFT) [02B11]

Нет текстового описания
