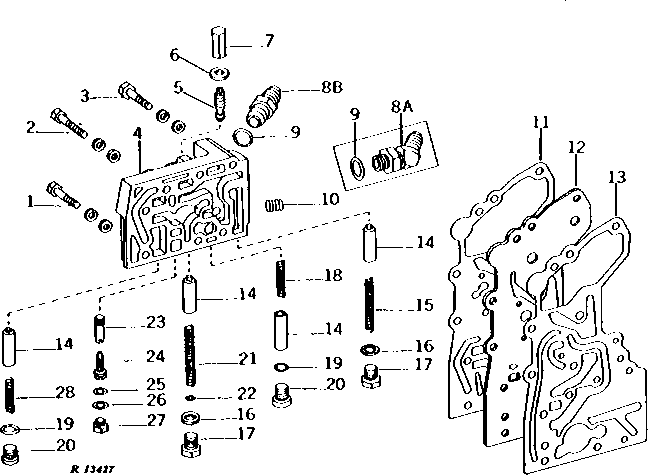

TRANSMISSION CLUTCH REGULATING VALVE (POWER SHIFT) [02B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H293	4	Lock Washer	7/16"
1	24H1325	4	Washer	15/32" X 59/64" X 0.065"
1	19H2055	4	CAP SCREW	7/16" X 2-1/4"
2	19H1828	2	CAP SCREW	7/16" X 4"
2	12H293	2	Lock Washer	7/16"
2	24H1325	2	Washer	15/32" X 59/64" X 0.065"
3	24H1325	1	Washer	15/32" X 59/64" X 0.065"
3	12H293	1	Lock Washer	7/16"
3	19H2055	1	CAP SCREW	7/16" X 2-1/4"
4	AR34850	1	HOUSING	(MARKED R34973)
4	R41404	1	HOUSING	(MARKED R41404 OR R42155) (ALSO ORDER 15H561)
5	R39587	1	SET SCREW	OIL BYPASS
6	F2846R	1	WASHER	-
7	F2847R	1	NUT	-
9	F3171R	1	O-Ring	-
10	15H624	1	Pipe Plug	1/2"
11	R98926	1	GASKET	(SUB FOR R33178, R46816 OR R51573)
12	R33164	1	PLATE	-
13	R94331	1	GASKET	(SUB FOR R33177, R46815 OR T67029)
14	R33162	4	VALVE	(SUB R33259 AND R57559)
15	R39808	1	SPRING	-
16	R1742R	2	WASHER	-
17	R52589	2	FITTING PLUG	(SUB FOR R33163)
18	R28914	1	SPRING	-
19	R26375	2	O-Ring	-
20	R33138	2	Fitting	-
21	R33523	1	SPRING	PRESSURE VALVE
22	R33521	1	Shim	0.76MM (.030")
23	AR47611	1	ORIFICE	(SUB FOR T24533 OR AT19314)
24	R34028	1	Bolt	-
25	R10093	1	O-Ring	-
26	R26286	1	O-Ring	-
27	R27094	1	Drain Plug	-
28	R26686	1	SPRING	-
8A	AR47803	1	ELBOW FITTING	60°, (SUB FOR AR32852)
8B	R27267	1	Fitting	-

TRANSMISSION CLUTCH REGULATING VALVE (POWER SHIFT) [02B21]
