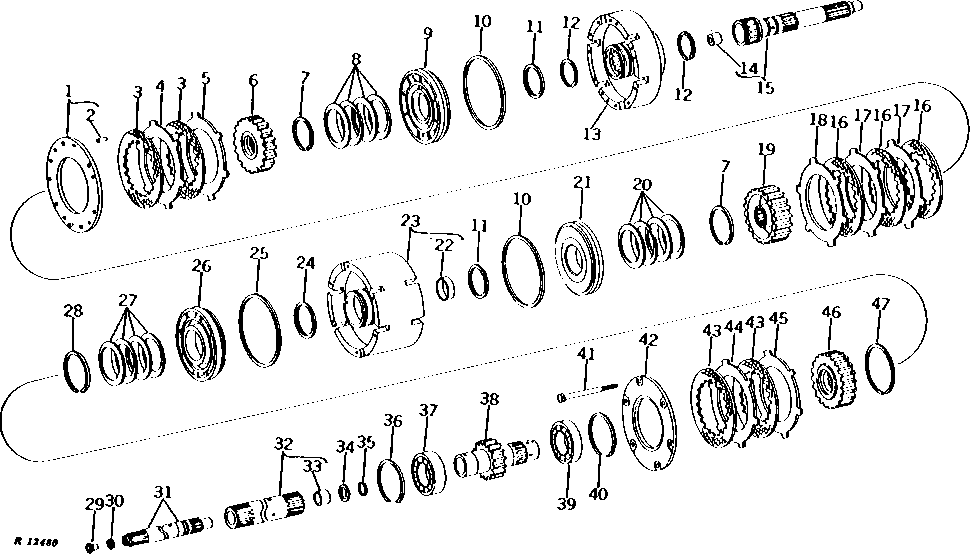

TRANSMISSION CLUTCH PACK (POWER SHIFT) [02B16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR32136	1	PLATE	-
2	R30587	2	Dowel Pin	-
3	RE27995	2	CLUTCH DISK	(SUB FOR R31404 OR RE23000) (SUB RE234307) LOW RANGE
3	RE27995	1	CLUTCH DISK	(SUB FOR R31404 OR RE23000) (SUB RE234307) LOW RANGE
4	R39325	1	CLUTCH PLATE	LOW RANGE, (SUB FOR R32313)
5	R80813	1	Clutch Plate	LOW RANGE, (SUB FOR R33873)
6	R38286	1	HUB	(NO LONGER AVAILABLE)
6	R38391	1	HUB	(NLA)
7	R33247	2	Snap Ring	-
8	R67840	2	Disk Spring	(SUB FOR R33518)
8	R67840	4	Disk Spring	(SUB FOR R33518)
9	R41160	1	PISTON	(ALSO ORDER R120838) (SUB FOR R38175)
9	R41105	1	PISTON	(ALSO ORDER R120838) (SUB FOR R33517)
10	R33059	2	SEALING WASHER	(USE WITH R38175 OR R33517)
10	R120838	2	Packing	(USE WITH R41160 OR R41105)
11	R33246	2	Seal	-
12	R33169	2	Snap Ring	-
13	AR38295	1	DRUM	(MARKED R38233) (NO LONGER AVAILABLE)
13	AR38478	1	DRUM	(MARKED R38389) (SUB R41036, AR42093, R41105 AND R120838)
14	R33168	1	BUSHING	-
15	AR38299	1	SHAFT	(NLA)
16	RE27995	3	CLUTCH DISK	(SUB FOR R31404 OR RE23000) (SUB RE234307) HIGH RANGE
17	R57345	2	Clutch Plate	HIGH RANGE, (SUB FOR R32313)
18	R46391	1	CLUTCH PLATE	HIGH RANGE, (SUB FOR R33873)
19	R38287	1	HUB	(NO LONGER AVAILABLE)
19	R38392	1	HUB	(NLA)
20	R67840	4	Disk Spring	(SUB FOR R33518)
21	R41160	1	PISTON	(ALSO ORDER R120838) (SUB FOR R38175)
22	R33073	1	BUSHING	-
23	AR38479	1	DRUM	(MARKED R38390) (NLA)
23	AR38296	1	DRUM	(MARKED R38234) (NLA)
24	R33246	1	Seal	(A)
25	R33059	1	SEALING WASHER	(A) (USE WITH R38175)
25	R120838	1	Packing	(A) (USE WITH R41160)
26	R41160	1	PISTON	(A) (ALSO ORDER R120838) (SUB FOR R38175)
27	R67840	4	Disk Spring	(A) (SUB FOR R33518)
28	R33247	1	Snap Ring	(A)
29	R34141	1	RETAINER	-
30	R34140	1	Ring	-
31	R33124	1	SHAFT	LOW RANGE DRIVE
31	R41751	1	SHAFT	LOW RANGE DRIVE
32	AR32125	1	SHAFT	HIGH RANGE DRIVE, (SUB AR42093)
32	AR42093	1	SHAFT	HIGH RANGE DRIVE
33	R33109	1	BUSHING	-
34	R33118	1	THRUST WASHER	-
35	R26643	1	Snap Ring	-
36	F1373R	1	Snap Ring	-
37	JD9279	1	Ball Bearing	-
38	R38056	1	SHAFT	PTO DRIVE AND GEAR, (SUB R38393)
38	R38393	1	SHAFT	PTO DRIVE AND GEAR
39	JD9292	1	Ball Bearing	-
40	31415	1	Snap Ring	-
41	19H2729	6	Cap Screw	5/16" X 4-1/4"
41	19H2852	6	Cap Screw	5/16" X 4"
42	R33188	1	Plate	(A)
43	RE27995	2	CLUTCH DISK	(A) (SUB FOR R31404 OR RE23000) (SUB RE234307)
44	R39325	1	CLUTCH PLATE	(A) (SUB FOR R32313)
45	R80813	1	Clutch Plate	(A) (SUB FOR R33873 OR R46391)
46	R38288	1	HUB	(A) PTO CLUTCH (NLA)
47	R33520	1	Snap Ring	(A)

TRANSMISSION CLUTCH PACK (POWER SHIFT) [02B16]
