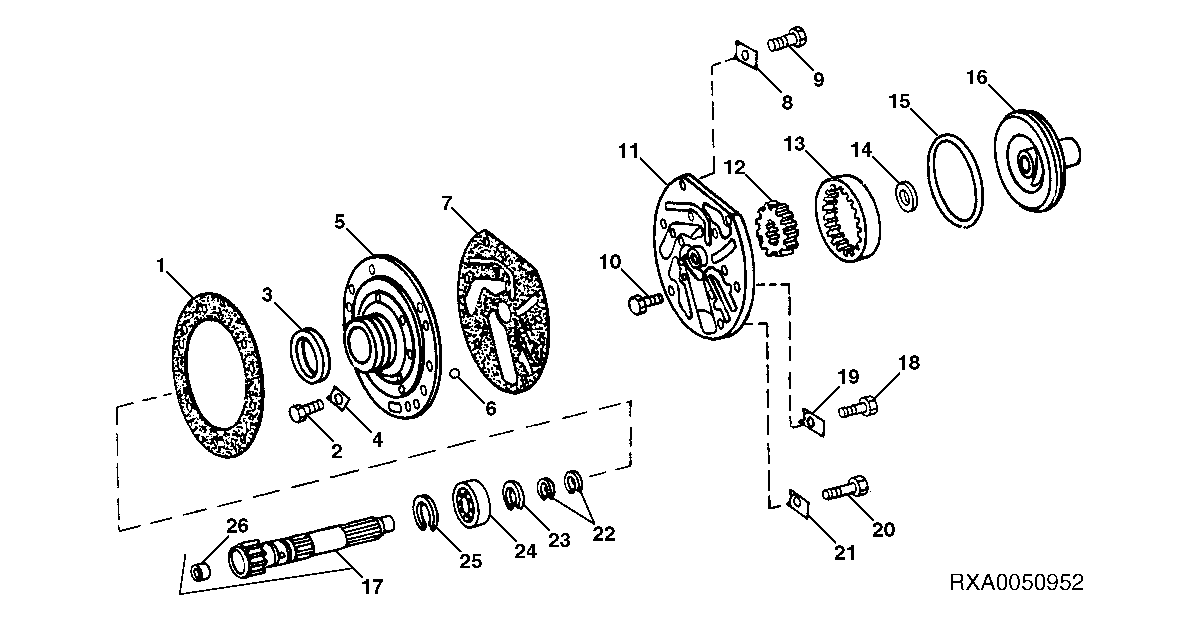

TRANSMISSION CLUTCH OIL PUMP AND MANIFOLD (POWER SHIFT) [02B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R100232	1	GASKET	(SUB FOR R33171, R49294 OR R69585)
2	19H2661	6	Cap Screw	5/16" X 1-3/8"
2	R112874	6	CAP SCREW	-
3	R33167	4	Ring	(.124 WIDE)
4	T13857	6	LOCK PLATE	-
5	R33061	1	MANIFOLD	(.1285" RING GROOVE) (USE WITH AR38295 OR AR38478)
6	R42849	2	Ball	10MM (3/8") (SUB FOR 405R)
7	R100234	1	GASKET	(SUB FOR R33166, R49295, R57915, R69587 OR R70251)
8	R30920	2	PLATE	-
9	19H1732	2	Cap Screw	3/8" X 1-1/4"
10	19H1849	1	Cap Screw	5/16" X 1-1/4"
10	19H1900	1	Cap Screw	5/16" X 3/4"
11	AR90850	1	HOUSING	(MARKED R33133 OR R69589) (SUB FOR AR32127)
12	R31695	1	GEAR	(20.5 MM .809")
13	R27880	1	GEAR	(20.5 MM .809")
14	R34650	1	SEAL	-
15	R39876	1	Packing	-
16	AR48898	1	HOUSING	(MARKED R31692) (SUB FOR AR30795)
17	AR38299	1	SHAFT	(NLA)
18	19H1800	3	Cap Screw	3/8" X 1-1/2"
19	R30959	3	LOCK PLATE	-
20	19H1765	1	Cap Screw	3/8" X 1-3/4"
21	R30958	1	LOCK PLATE	-
22	R26753	2	RING	-
23	F2370R	1	SNAP RING	-
24	JD7145	1	Ball Bearing	-
25	A3815R	1	Snap Ring	-
26	R33168	1	BUSHING	-

TRANSMISSION CLUTCH OIL PUMP AND MANIFOLD (POWER SHIFT) [02B14]
