Открытый узел

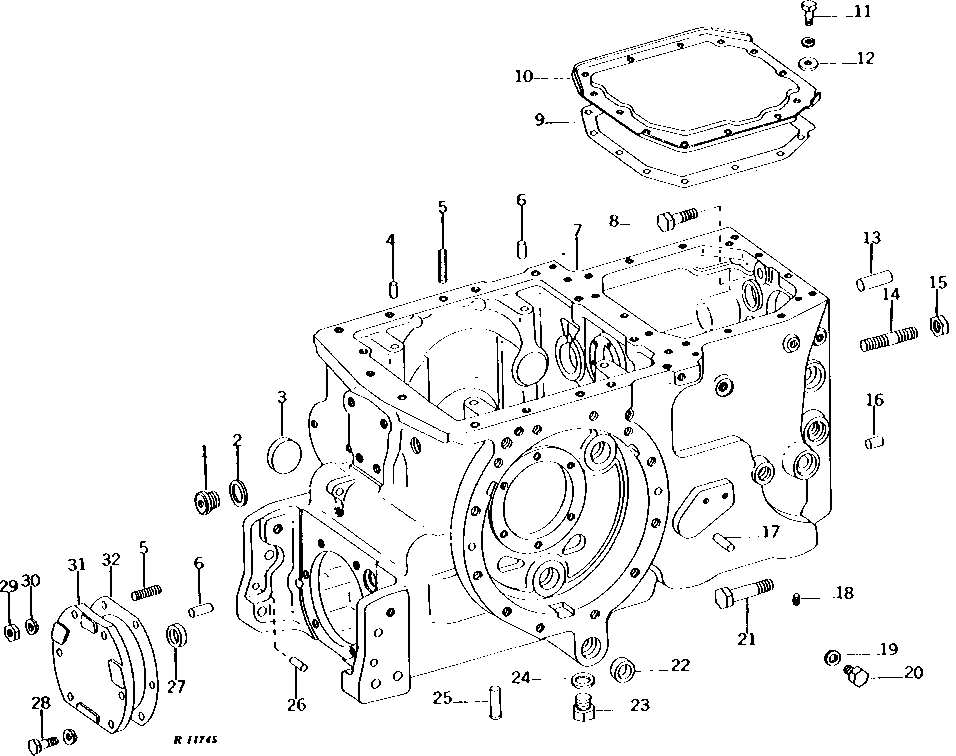

TRANSMISSION CASE AND COVER (SYNCRO-RANGE) [02B22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27483	1	FITTING PLUG	LOAD CONTROL ARM ADJUSTING HOLE
2	H851R	1	WASHER	-
3	R38344	1	Plug	(USE WITH 1000 RPM PTO ONLY OR LESS PTO)
4	R1612R	4	Dowel Pin	-
5	R32101	5	STUD	1/2" X 1-3/4"
6	R48685	4	Dowel Pin	(SUB FOR A120R)
7	AR38411	1	TRANSMISSION CASE	(MARKED R38050) (NO LONGER AVAILABLE)
8	19H2706	2	Cap Screw	5/8" X 2", HS, SAE 8
9	R33714	1	GASKET	-
10	R33713	1	COVER	-
11	19H1731	1	Cap Screw	3/8" X 1", (10 USED GASOLINE) (9 USED DIESEL) (USE WITH DUAL SELECTIVE CONTROL)
11	12H304	13	Lock Washer	3/8"
11	19H1800	1	Cap Screw	3/8" X 1-1/2", (1 USED GASOLINE) (2 USED DIESEL)
11	19H1726	1	Cap Screw	3/8" X 2-1/4", (USE WITH SINGLE SELECTIVE CONTROL)
11	19H1731	1	Cap Screw	3/8" X 1", (11 USED GASOLINE) (10 USED DIESEL) (USE WITH SINGLE SELECTIVE CONTROL)
11	19H1731	1	Cap Screw	3/8" X 1", (12 USED GASOLINE) (11 USED DIESEL) (LESS SELECTIVE CONTROL)
12	A4624R	13	Washer	-
13	A776R	2	Pin	-
14	B2484R	3	STUD	5/8" X 3"
15	14H1039	3	Nut	5/8"
16	R27315	2	Dowel Pin	-
17	T26565	4	Dowel Pin	(SUB FOR C1220R)
18	15H253	1	Pipe Plug	1/8"
19	R51494	1	WASHER	(LESS DIFFERENTIAL LOCK)
20	R27218	1	Fitting Plug	(LESS DIFFERENTIAL LOCK)
21	19H2706	2	Cap Screw	5/8" X 2", HS, SAE 8
21	19H1847	2	Cap Screw	5/8" X 2-1/2"
22	R27018	2	BUSHING	STANDARD
22	R45513	2	BUSHING	0.08MM (.003") OVERSIZE
22	R45514	2	BUSHING	0.15MM (.006") OVERSIZE
22	R46799	2	BUSHING	0.23MM (.009") OS, (SUB AR89132)
23	F3128R	1	DRAIN PLUG	-
24	A4827R	1	Washer	-
25	R31075	1	PIN FASTENER	LOAD CONTROL SHAFT STOP (NLA)
26	34H348	2	Spring Pin	3/8" X 1"
27	R33498	1	PLUG	(USE WITH 1000 RPM PTO ONLY OR LESS PTO)
28	19H3385	4	Cap Screw	1/2" X 1-1/8"
28	12H301	4	Lock Washer	1/2"
29	14H1040	2	Nut	1/2"
30	12H301	2	Lock Washer	1/2"
31	R33489	1	COVER	(LESS PTO)
32	R33337	1	GASKET	-

TRANSMISSION CASE AND COVER (SYNCRO-RANGE) [02B22]
