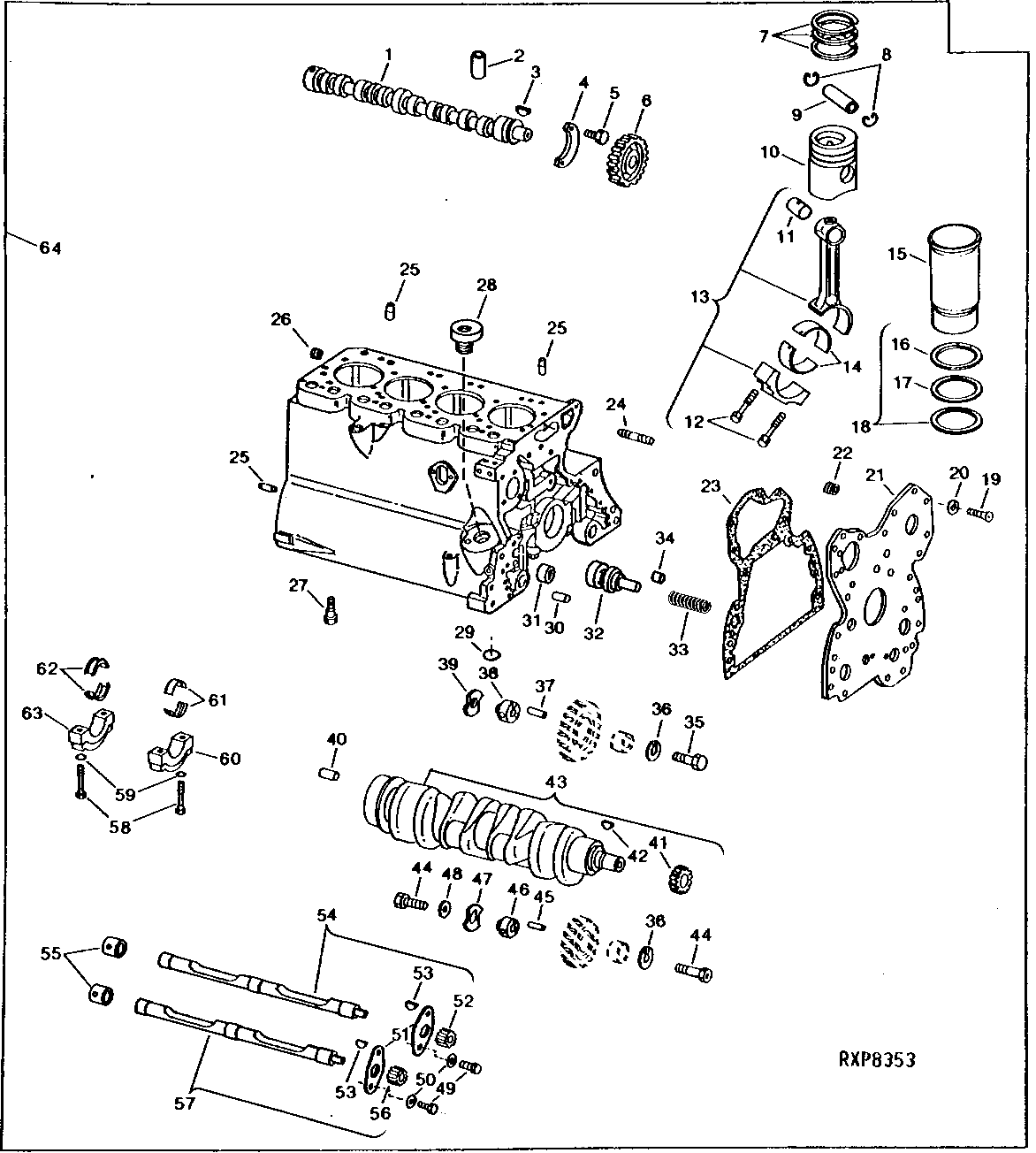

SHORT BLOCK ASSEMBLY (DIESEL) (RE19855) [01B13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R82820	1	CAMSHAFT	-
2	T20073	8	Cam Follower	-
3	T28041	1	Shaft Key	-
4	T20072	1	Plate	-
5	19H218	2	Cap Screw	3/8" X 1"
6	T20070	1	Helical Gear	-
7	AR55760	1	PISTON RING KIT	-
8	M41029	2	Snap Ring	-
9	R125754	1	Piston Pin	(SUB FOR R51731)
10	AR77762	1	PISTON	-
11	R55647	1	BUSHING	-
12	R80033	2	Cap Screw	-
13	RE21076	1	Connecting Rod	-
14	AT21138	8	BEARING	-
15	T32343	4	CYLINDER LINER	-
16	R48768	4	WASHER	-
17	T32344	4	O-RING	-
18	AR71618	4	KIT	-
19	T20166	5	SCREW	-
20	12H324	5	WASHER	3/8"
21	RE16149	1	PLATE	-
22	AT21191	8	SET SCREW	-
22	AT22919	2	SET SCREW	-
23	R131794	1	Gasket	(SUB FOR R90648)
24	T33279	1	STUD	TIMING GEAR PUMP
24	T25701	1	Stud	WATER PUMP
25	R48685	3	Dowel Pin	-
26	15H562	1	Pipe Plug	1"
27	R54802	1	Orifice	-
28	T23435	1	Threaded Nipple	-
29	R75892	1	O-Ring	-
30	R26650	2	Dowel Pin	-
31	R26493	1	Bushing	-
32	R73139	1	Flow Control Hyd. Valve	-
33	R46625	1	SPRING	-
34	T18891	1	Plug	-
35	T26327	1	Screw	-
36	T26326	2	THRUST WASHER	-
37	34H283	1	Spring Pin	3/16" X 1-1/8"
38	T26323	1	SHAFT	(SUB R89824, THIS APPLICATION)
39	T26324	1	THRUST WASHER	-
40	R48685	1	Dowel Pin	-
41	T20094	1	Helical Gear	-
42	26H72	1	Shaft Key	-
43	AT18030	1	CRANKSHAFT	-
44	T26325	2	SCREW	-
45	34H286	1	Spring Pin	3/16" X 1-1/2"
46	T26323	1	SHAFT	(SUB R89824, R100105, 19H3011, 14H865, THIS APPLICATION)
47	T26324	1	THRUST WASHER	-
48	R76126	1	Washer	-
49	19H2021	4	Cap Screw	3/8" X 5/8"
50	12H304	4	Lock Washer	3/8"
51	R58007	2	Plate	(SUB FOR T20193)
52	T20133	1	GEAR	-
53	T28041	2	Shaft Key	-
54	AR61352	1	BALANCER SHAFT	L.H.
55	R57160	2	BUSHING	-
56	T20130	1	GEAR	-
57	AR61351	1	BALANCER SHAFT	R.H.
58	T23474	2	Cap Screw	-
59	T20168	2	Washer	-
60	R65215	4	Bearing Cap	-
61	AT21140	8	Bearing	-
62	AT21139	2	BEARING	-
63	R79089	1	Cap	-
64	RE19855	1	SHORT BLOCK ASSEMBLY	(ALSO ORDER T22720, R81513, R92425 AND (18) R53223)

SHORT BLOCK ASSEMBLY (DIESEL) (RE19855) [01B13]

Нет текстового описания
