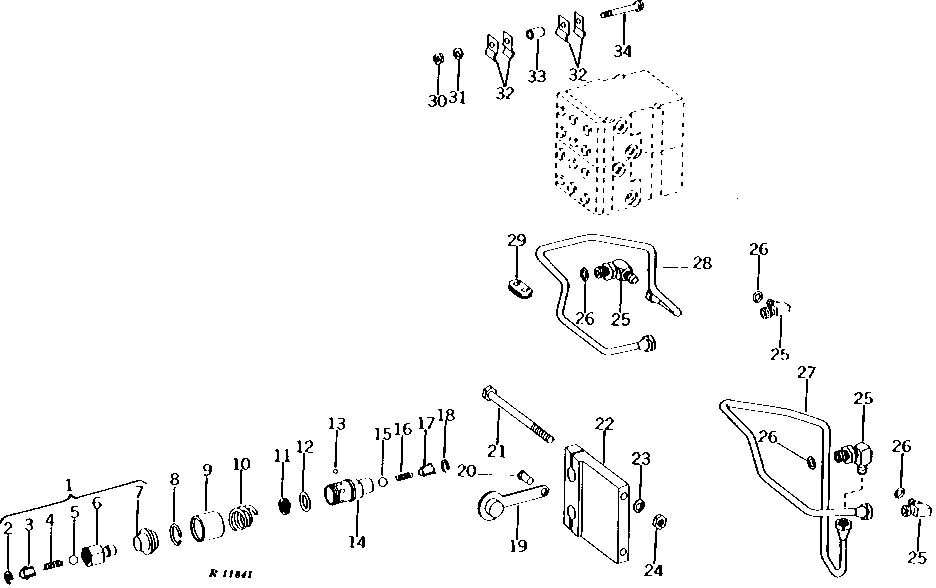

RIGHT-HAND DUEL FRONT OUTLET WITH COUPLERS (SINGLE OR DUAL SELECTIVE CONTROL) [02G11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR47643	1	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)
1	AR30210	1	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
2	R59633	2	WEAR RING	(SUB FOR R28204)
3	R28085	2	GUIDE	(SUB AR93819 OR AR93820, APPL)
4	R28084	2	SPRING	-
5	D2361R	2	Ball	13MM (1/2")
6	R27430	1	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
6	R45630	1	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
7	R28006	2	CAP	-
8	R32356	2	SNAP RING	-
9	R32355	2	SLEEVE	(SUB RE15361)
10	R32354	2	SPRING	(SUB RE15361)
11	R26485	2	BACK-UP RING	-
12	R495R	2	O-Ring	-
13	400R	12	Ball	6MM (1/4")
14	R32353	2	SOCKET OUTLET	(SUB RE15361)
15	D2361R	2	Ball	13MM (1/2")
16	R28084	2	SPRING	-
17	R28085	2	GUIDE	(SUB RE15361)
18	R59633	2	WEAR RING	(SUB FOR R28204)
19	R32419	2	COVER	(SUB R80324)
20	A5748R	2	SCREW	(SUB 37H92)
21	08H4732	2	CAP SCREW	3/8" X 6-3/4"
22	AR31673	1	BRACKET	(MARKED R32418) (NLA)
23	12H304	2	Lock Washer	3/8"
24	14H1076	2	Nut	3/8"
25	AR31674	4	Fitting	90°
26	R26375	4	O-Ring	-
27	AR38332	1	OIL LINE	TO FRONT COUPLER, LOWER, R.H. (NLA)
28	AR38331	1	OIL LINE	TO FRONT COUPLER, UPPER, R.H. (NLA)
29	R26418	1	GROMMET	-
30	14H786	1	Nut	1/4"
31	12H302	1	Lock Washer	1/4"
32	R27720	4	CLAMP	-
33	28H1697	1	Spacer	3/8" X 3/4"
34	19H2334	1	Cap Screw	1/4" X 2-1/2"

RIGHT-HAND DUEL FRONT OUTLET WITH COUPLERS (SINGLE OR DUAL SELECTIVE CONTROL) [02G11]
