RIGHT-HAND AND LEFT-HAND PARALLEL DUAL FRONT OUTLET WITH COUPLERS (SINGLE OR DUAL SELECTIVE CONTROL) [02G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

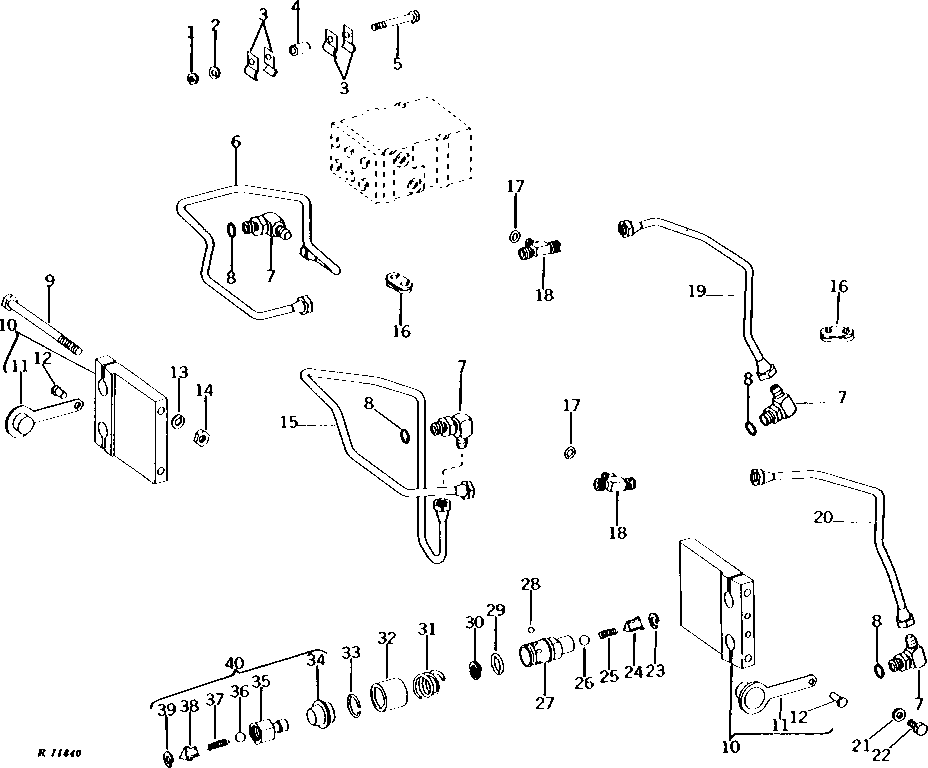

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H786	1	Nut	1/4"
2	12H302	1	Lock Washer	1/4"
3	R27720	4	CLAMP	-
4	28H1697	1	Spacer	3/8" X 3/4"
5	19H2334	1	Cap Screw	1/4" X 2-1/2"
6	AR38331	1	OIL LINE	TO FRONT COUPLER, UPPER, R.H. (NLA)
7	AR31674	1	Fitting	90°
8	R26375	4	O-Ring	-
9	08H4732	4	CAP SCREW	3/8" X 6-3/4"
10	AR31673	1	BRACKET	(MARKED R32418) (NLA)
11	R32419	4	COVER	-
12	A5748R	4	SCREW	(SUB 37H92)
13	12H304	4	Lock Washer	3/8"
14	14H1076	4	Nut	3/8"
15	AR38332	1	OIL LINE	TO FRONT COUPLER, LOWER, R.H. (NLA)
16	R26418	2	GROMMET	-
17	R26375	2	O-Ring	-
18	AR32667	2	TEE FITTING	-
19	AR38333	1	OIL LINE	TO FRONT COUPLER, UPPER, L.H. (NO LONGER AVAILABLE)
20	AR38334	1	OIL LINE	TO FRONT COUPLER, LOWER, L.H. (NO LONGER AVAILABLE)
21	24H1136	1	Washer	11/32" X 11/16" X 0.065", COWL TO CONTROL SUPPORT
22	19H1813	1	CAP SCREW	5/16" X 5/8", COWL TO CONTROL SUPPORT
23	R59633	4	WEAR RING	(SUB FOR R28204)
24	R28085	4	GUIDE	(SUB RE15361)
25	R28084	4	SPRING	-
26	D2361R	4	Ball	13MM (1/2")
27	R32353	4	SOCKET OUTLET	-
28	400R	24	Ball	6MM (1/4")
29	R495R	4	O-Ring	-
30	R26485	4	BACK-UP RING	-
31	R32354	4	SPRING	-
32	R32355	4	SLEEVE	-
33	R32356	4	SNAP RING	-
34	R28006	4	CAP	-
35	R27430	2	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
35	R45630	2	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
36	D2361R	4	Ball	13MM (1/2")
37	R28084	4	SPRING	-
38	R28085	4	GUIDE	(SUB AR93819 OR AR93820, APPL)
39	R59633	4	WEAR RING	(SUB FOR R28204)
40	AR30210	2	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
40	AR47643	2	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)

RIGHT-HAND AND LEFT-HAND PARALLEL DUAL FRONT OUTLET WITH COUPLERS (SINGLE OR DUAL SELECTIVE CONTROL) [02G09]
