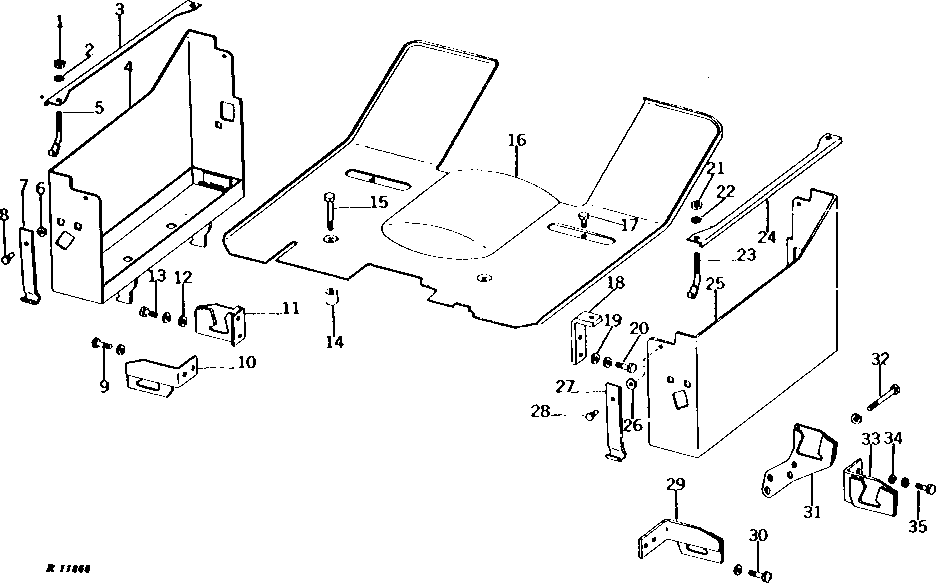

PLATFORM AND BATTERY BOXES [02J07]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H786	2	Nut	(A) 1/4"
2	24H1287	2	Washer	(A) 9/32" X 5/8" X 0.065"
3	R40423	1	CLAMP	(A)
4	AR40208	1	BATTERY BOX	-
5	R30805	2	HOOK BOLT	(A)
6	24H1283	2	Washer	(A) 7/32" X 1/2" X 0.049"
7	R27084	1	CLAMP	(A) FRONT
7	R34958	1	LATCH	(A) REAR
8	R27085	2	RIVET	(A)
9	19H2284	2	Cap Screw	(A) 3/8" X 7/8"
9	12H304	2	Lock Washer	(A) 3/8"
10	AR32503	1	SUPPORT	(A) (B) (NLA)
10	AR32480	1	SUPPORT	(A) (C) (NO LONGER AVAILABLE)
11	AR32399	1	SUPPORT	(A) (B) (NO LONGER AVAILABLE)
11	AR32478	1	SUPPORT	(A) (C) (NLA)
12	R1870R	2	Washer	(A) (SUB R57696)
13	19H1731	2	Cap Screw	(A) 3/8" X 1"
13	12H304	2	Lock Washer	(A) 3/8"
14	28H1530	1	Bushing	(2 USED POWER SHIFT) (4 USED SYNCRO-RANGE)
15	19H1733	1	CAP SCREW	3/8" X 2-1/2", (2 USED POWER SHIFT) (4 USED SYNCRO-RANGE)
16	AR40226	1	PLATFORM	(B) (NO LONGER AVAILABLE)
16	AR32849	1	PLATFORM	(WITH CAB) (NO LONGER AVAILABLE)
16	AR38247	1	PLATFORM	(C) (NO LONGER AVAILABLE)
17	19H2021	2	Cap Screw	(B) 3/8" X 5/8"
18	R40466	2	SUPPORT	(B) (NLA)
19	A147R	1	WASHER	(B) R.H. (LESS ROCKSHAFT)
20	19H1731	1	Cap Screw	(B) 3/8" X 1" L.H.
20	R34583	1	CAP SCREW	(B) R.H.
20	12H304	2	Lock Washer	(B) 3/8"
21	14H786	2	Nut	1/4"
22	24H1287	2	Washer	9/32" X 5/8" X 0.065"
23	R30805	2	HOOK BOLT	-
24	R40423	1	CLAMP	-
25	AR40207	1	BATTERY BOX	-
26	24H1283	2	Washer	7/32" X 1/2" X 0.049"
27	R34958	1	LATCH	REAR
27	R27084	1	CLAMP	FRONT
28	R27085	2	RIVET	-
29	AR32479	1	SUPPORT	-
30	19H2284	2	Cap Screw	3/8" X 7/8"
30	12H304	2	Lock Washer	3/8"
31	AR34396	1	SUPPORT	(B) (NLA)
32	19H3175	2	Cap Screw	(B) 3/8" X 3-5/8", HS, SAE 8
32	12H304	2	Lock Washer	(B) 3/8"
33	AR32477	1	SUPPORT	(C)
34	R1870R	2	Washer	(C) (SUB R57696)
35	19H1731	2	Cap Screw	(C) 3/8" X 1"
35	12H304	2	Lock Washer	(C) 3/8"
