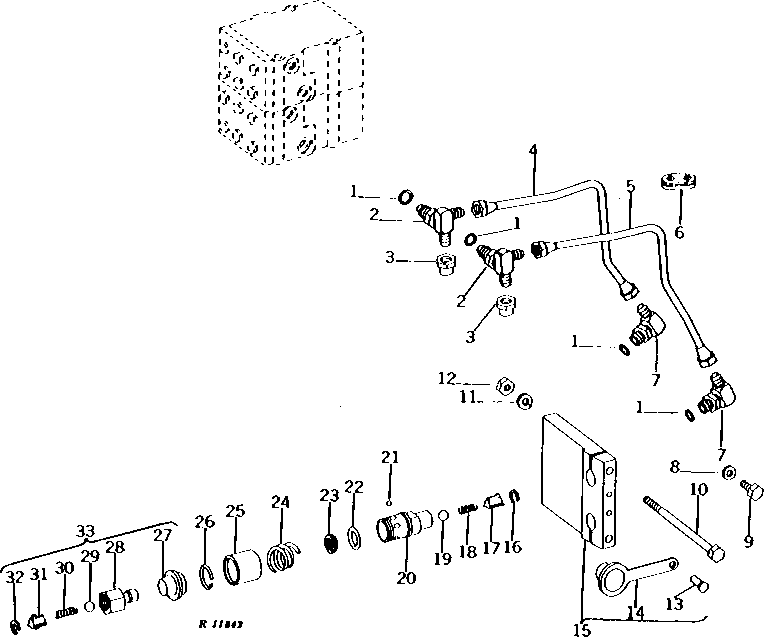

LEFT-HAND DUAL FRONT OUTLET WITH COUPLERS (DUAL SELECTIVE CONTROL) [02G13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	4	O-Ring	-
2	AR38337	2	Tee Fitting	-
3	R39783	2	Fitting	-
4	AR38335	1	OIL LINE	TO FRONT COUPLER, UPPER, L.H. (NO LONGER AVAILABLE)
5	AR38336	1	OIL LINE	TO FRONT COUPLER, LOWER, L.H. (NO LONGER AVAILABLE)
6	R26418	1	GROMMET	-
7	AR31674	2	Fitting	90°
8	24H1136	1	Washer	11/32" X 11/16" X 0.065", COWL TO CONTROL SUPPORT
9	19H1813	1	CAP SCREW	5/16" X 5/8", COWL TO CONTROL SUPPORT
10	08H4732	2	CAP SCREW	3/8" X 6-3/4"
11	12H304	2	Lock Washer	3/8"
12	14H1076	2	Nut	3/8"
13	A5748R	2	SCREW	(SUB 37H92)
14	R32419	2	COVER	(SUB R80324)
15	AR31673	1	BRACKET	(MARKED R32418) (NLA)
16	R59633	2	WEAR RING	(SUB FOR R28204)
17	R28085	2	GUIDE	(SUB RE15361)
18	R28084	2	SPRING	-
19	D2361R	2	Ball	13MM (1/2")
20	R32353	2	SOCKET OUTLET	(SUB RE15361)
21	400R	12	Ball	6MM (1/4")
22	R495R	2	O-Ring	-
23	R26485	2	BACK-UP RING	-
24	R32354	2	SPRING	(SUB RE15361)
25	R32355	2	SLEEVE	(SUB RE15361)
26	R32356	2	SNAP RING	-
27	R28006	2	CAP	-
28	R27430	1	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
28	R45630	1	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
29	D2361R	2	Ball	13MM (1/2")
30	R28084	2	SPRING	-
31	R28085	2	GUIDE	(SUB AR93819 OR AR93820, APPL)
32	R59633	2	WEAR RING	(SUB FOR R28204)
33	AR30210	1	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
33	AR47643	1	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)
