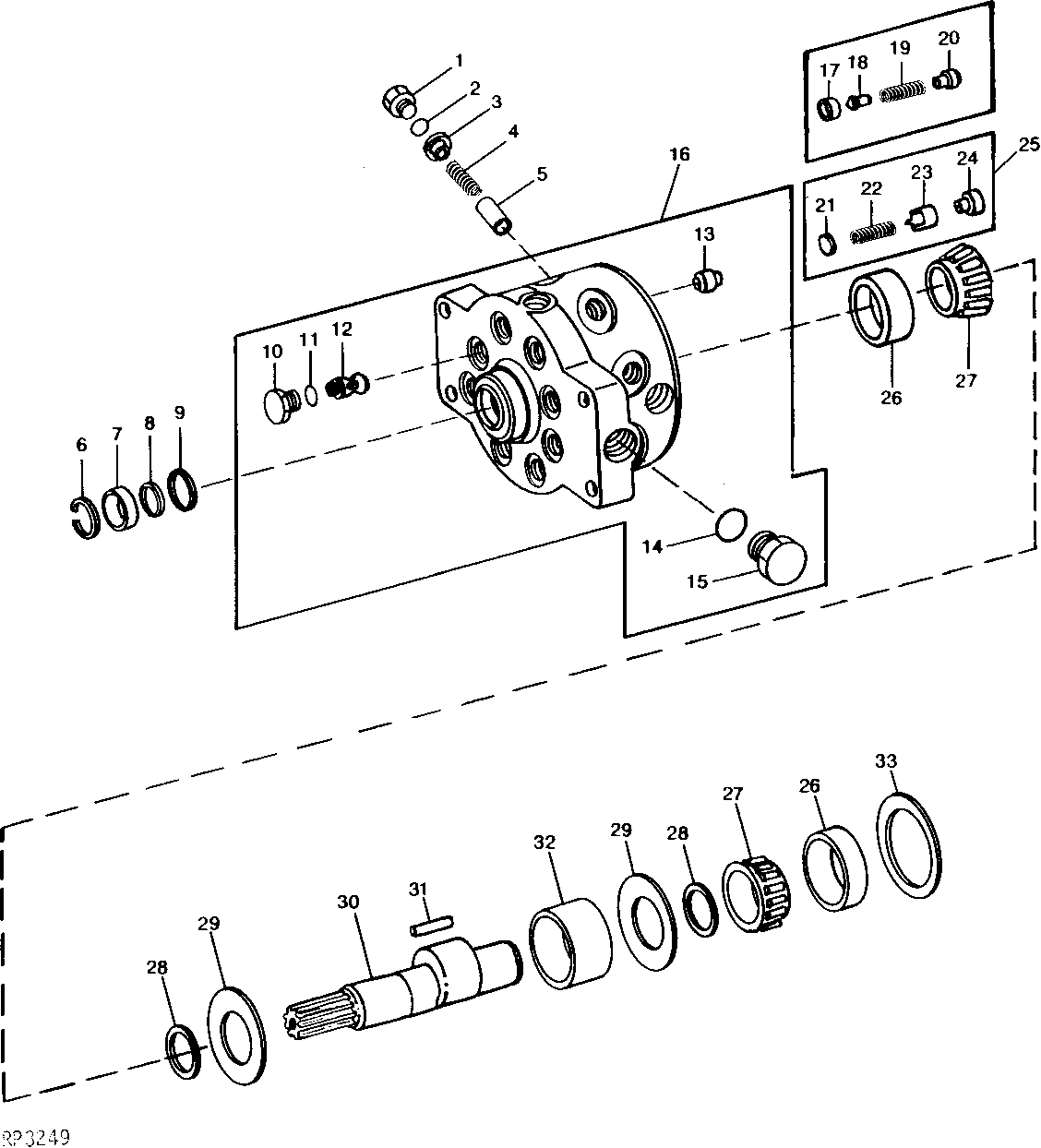

HYDRAULIC PUMP 39 CM3 (2.4 IN.3) (REPLACEMENT PUMP LESS SERIAL PLATE) [02F03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	8	Fitting	-
2	R495R	8	O-Ring	(SUB R56463 AND AR101236, THIS APPLICATION)
2	R56463	8	O-Ring	-
3	R56749	8	DUST SHIELD	(SUB FOR AR101236)
4	R62372	8	Spring	(AR76762 NLA) (SUB FOR AR33821 OR AR55186)
5	R27150	8	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR52224)
8	R56753	1	SHIM	-
9	R39729	1	O-RING	-
10	R78293	8	FITTING	(SUB FOR R27148 OR R44823)
11	R27149	8	O-Ring	-
12	AR53301	8	VALVE	(SUB FOR AR26758)
13	R105583	8	Valve Seat Insert	-
14	U13639	1	O-Ring	(USE WITH R34354 OR R45228)
14	F3171R	1	O-Ring	(USE WITH R45227)
15	R39741	1	Drain Plug	(USE WITH R34354 OR R45228)
15	R27175	1	Drain Plug	(USE WITH R45227)
16	AR47580	1	HOUSING	(MARKED R34347 OR R34354) (ALSO ORDER (8) RE23382 AND (8) R78293) (SUB AR97872) (ALSO ORDER AT33033, R39741, P47908, U13639 AND F3171R) (SUB FOR AR39696 AND AR47170)
16	AR47580	1	HOUSING	(MARKED R45227 OR R45228) (SUB AR97872) (ALSO ORDER AT33033, R39741, P47908, U13639 AND F3171R) (SUB FOR AR39696 OR AR47170)
17	R27155	8	WASHER	-
18	R27154	8	POPPET	-
19	R38531	8	SPRING	-
20	R27157	8	GUIDE	-
21	R49297	8	DISK	-
22	R39228	8	SPRING	-
23	R48738	8	GUIDE	(SUB FOR R39174)
24	R83508	8	Stop	(SUB FOR R39175 OR R49298)
25	RE23382	8	Valve	(SUB FOR AR39026, AR52099, AR52785 OR AR96613)
26	JD8223	2	Bearing Cup	-
27	JD8192	2	BEARING CONE	-
28	R34349	2	WASHER	-
29	R60732	2	WASHER	(SUB FOR R42467)
30	R39843	1	Shaft	-
31	R27145	36	NEEDLE ROLLER	-
32	R45874	1	BEARING RACE	-
33	R27478	1	SHIM	0.15MM (.006")
33	R27479	1	SHIM	0.25MM (.010")
..	AR39695	1	Hydraulic Pump	(SUB AR97872) (ALSO ORDER AT33033, R39741, P47908, U13639 AND F3171R)
..	AR90459	1	Hydraulic Pump	(SUB AR97872) (ALSO ORDER AT33033, R39741, P47908, U13639 AND F3171R) (SUB FOR AR39695)

HYDRAULIC PUMP 39 CM3 (2.4 IN.3) (REPLACEMENT PUMP LESS SERIAL PLATE) [02F03]
