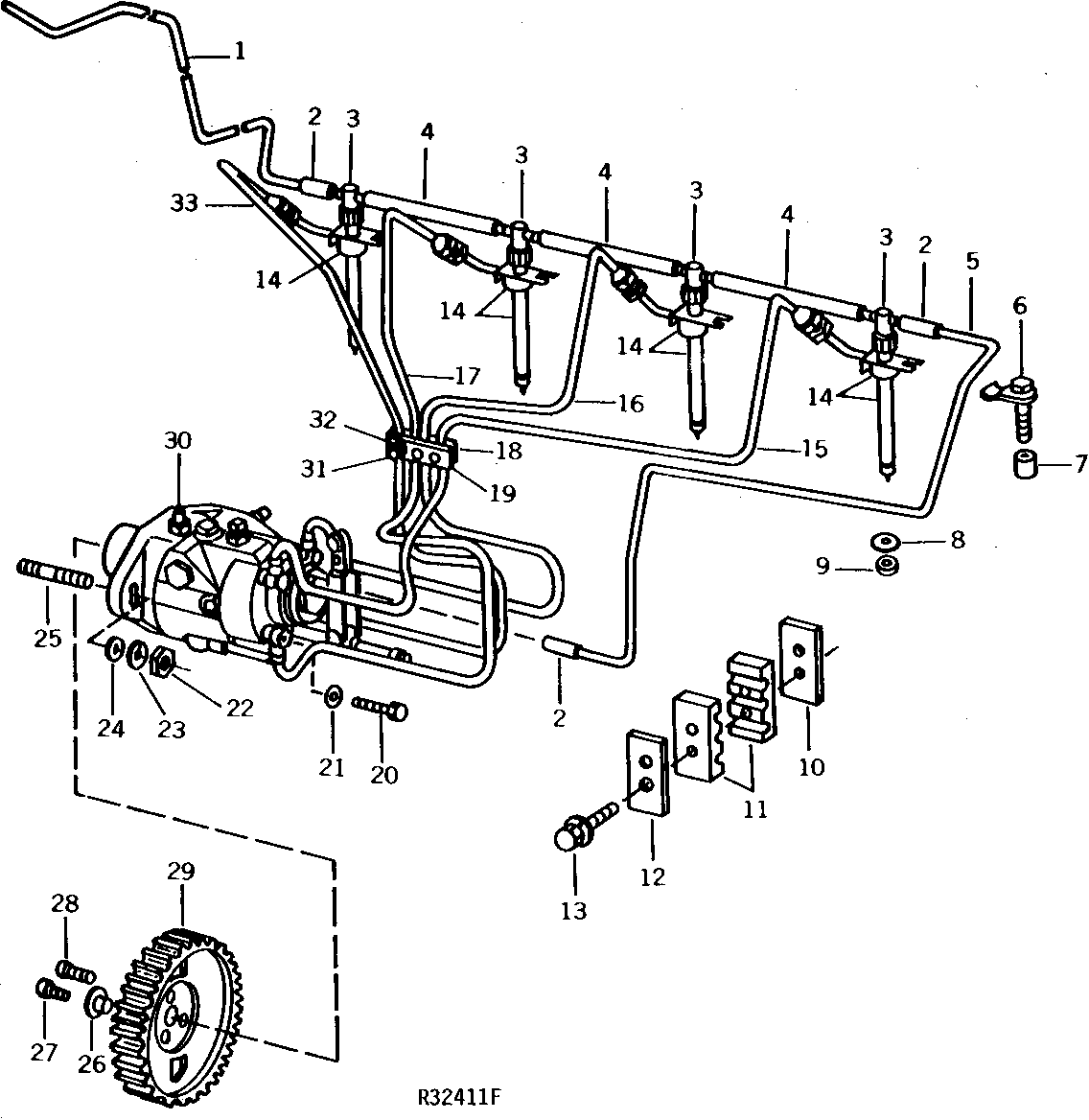

FUEL INJECTION PUMP AND FUEL PIPES (ENGINE SERIAL NO. 106892- ) [01E20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R38109	1	OIL TUBE	LEAK-OFF, (NOT AS ILLUSTRATED)
2	-	3	Part 2	44MM (1-3/4") (MAKE FROM R68281) (SUB FOR T27466 OR AT32064)
3	AT27622	4	CAP	LEAK-OFF
4	-	3	Part 4	113MM (4-7/16") (MAKE FROM R68281) (SUB FOR T27465 OR AT32064)
5	T29534	1	FUEL LINE	LEAK-OFF (NO LONGER AVAILABLE)
6	R34760	4	CLAMP	-
7	R34761	4	SPACER	-
8	R34764	4	WASHER	-
9	R48000	4	Seal	(SUB FOR R34767)
10	R61145	1	Strap	-
11	R59297	2	Half Clamp	-
12	R59298	1	Strap	-
13	AR76704	2	SCREW	-
14	AT30299	4	INJECTION NOZZLE	(SUB FOR AT25502) (SUB AR89564 OR SE500822) (REMANUFACTURED)
15	AT23466	1	FUEL LINE	NO. 4
16	AT23465	1	FUEL LINE	NO. 3
17	AT23464	1	FUEL LINE	NO. 2
18	T23463	1	STRAP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
19	T23462	1	CLAMP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
20	R41680	4	SCREW	-
21	T20055	8	WASHER	-
22	14H785	2	Nut	5/16"
23	12H303	2	Lock Washer	5/16"
24	24H1685	2	Washer	11/32" X 47/64" X 0.083"
25	T25813	2	STUD	-
26	T26496	1	ROUND RETAINER	(A)
27	19H2948	1	SCREW	1/4" X 0.380"
28	T26497	1	SCREW	(A)
29	T24772	1	GEAR	(48 TEETH)
30	AT22628	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. CDC431-6DG, CDC431-9DG AND CDC431-14DG) (SUB AR69819, AT30145 AND T31123) (ALSO ORDER AR69810, AR50896, AR50897, AT27620 AND R48127)
30	AT29734	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. CBC431-15AL) (SUB AR69819) (ALSO ORDER AR69810, AR50897, AR50896, AT27620 AND R48127)
31	21H1162	5	SCREW	0.190" X 5/8"
32	12H246	5	LOCK WASHER	0.190"
33	AT23463	1	FUEL LINE	NO. 1
..	AR34368	1	PLUG	-

FUEL INJECTION PUMP AND FUEL PIPES (ENGINE SERIAL NO. 106892- ) [01E20]
