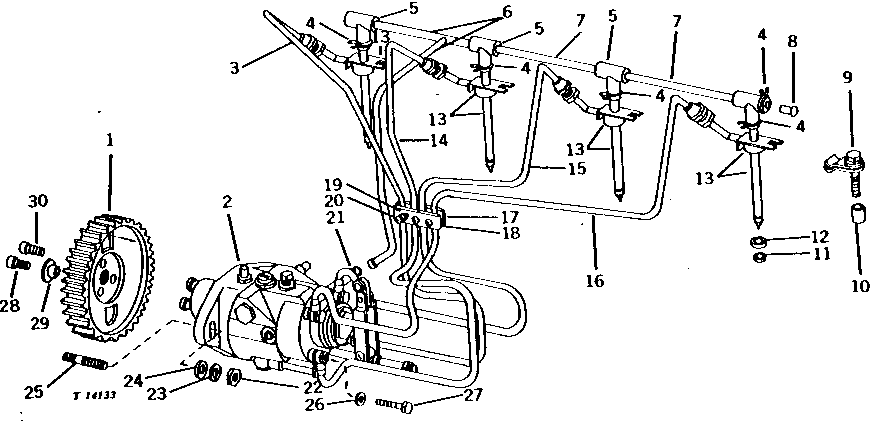

FUEL INJECTION PUMP AND FUEL PIPES (ENGINE SERIAL NO. 088893-106891) [01E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T24772	1	GEAR	(48 TEETH)
2	AT22628	1	FUEL INJECTION PUMP	(ROOSA-MASTER NOS. CDC431-6DG, CDC431-9DG AND CDC431-14DG) (SUB AR69819, AT30145, T31123, T26496 AND T26497) (ALSO ORDER AR69810, AR50896, AR50897, AT27620 AND R48127)
2	AT29734	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. CBC431-15AL) (SUB AR69819) (ALSO ORDER AR69810, AR50896, AR50897, AT27620 AND R48127)
3	AT23463	1	FUEL LINE	NO. 1
4	R34766	12	Clamp	-
5	T23425	4	BOOT	-
6	AT21845	1	FUEL LINE	LEAK-OFF
7	T23422	2	TUBE	-
8	16H644	1	RIVET	1/4" X 1/2"
9	R34760	4	CLAMP	-
10	R34761	4	SPACER	-
11	R48000	4	Seal	(SUB FOR R34767)
12	R34764	4	WASHER	-
13	AT18064	4	INJECTION NOZZLE	(SUB AR89564 OR SE500822) (REMANUFACTURED)
13	AT30299	4	INJECTION NOZZLE	(SUB FOR AT25502) (SUB AR89564 OR SE500822) (REMANUFACTURED)
14	AT23464	1	FUEL LINE	NO. 2
15	AT23465	1	FUEL LINE	NO. 3
16	AT23466	1	FUEL LINE	NO. 4
17	T23463	1	STRAP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
18	T23462	1	CLAMP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
19	12H246	3	LOCK WASHER	0.190"
20	21H1162	3	SCREW	0.190" X 5/8"
21	-	1	Part 23	48MM (1-7/8") LEAK-0FF, (MAKE FROM R68281) (SUB FOR T24773 OR AT32064)
22	14H785	2	Nut	5/16"
23	12H303	2	Lock Washer	5/16"
24	24H1685	2	Washer	11/32" X 47/64" X 0.083"
25	T25813	2	STUD	-
26	T20055	8	WASHER	-
27	R41680	4	SCREW	-
28	19H2948	1	SCREW	1/4" X 0.380"
29	T26496	1	ROUND RETAINER	(A)
30	T26497	1	SCREW	(A)
..	AR34368	1	PLUG	-

FUEL INJECTION PUMP AND FUEL PIPES (ENGINE SERIAL NO. 088893-106891) [01E18]
