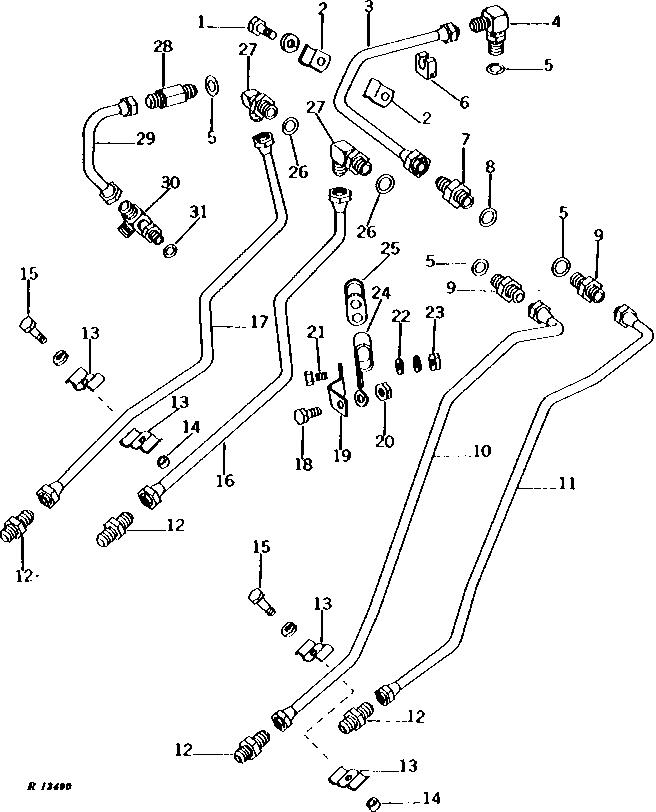

FRONT SELECTIVE CONTROL OIL LINES [02G07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8"
1	19H1936	1	Cap Screw	3/8" X 3/4"
2	R27539	2	CLAMP	-
3	AR26765	1	OIL LINE	PRESSURE
4	AT32332	1	Elbow Fitting	90°, (SUB FOR AR26763)
5	R26375	4	O-Ring	-
6	R26989	1	GROMMET	(NLA)
7	R31665	1	Fitting	-
8	R26906	1	O-Ring	-
9	R36426	2	Fitting	-
10	AR38313	1	OIL LINE	R.H. INNER
11	AR38312	1	OIL LINE	R.H. OUTER
12	R27095	1	Fitting	(2 USED SINGLE SELECTIVE CONTROL) (4 USED DUAL SELECTIVE CONTROL)
13	R27491	1	Clamp	(2 USED SINGLE SELECTIVE CONTROL) (4 USED DUAL SELECTIVE CONTROL)
14	R21483	1	WASHER	(1 USED SINGLE SELECTIVE CONTROL) (2 USED DUAL SELECTIVE CONTROL)
15	19H2552	1	CAP SCREW	3/8" X 1-1/8", (1 USED SINGLE SELECTIVE CONTROL) (2 USED DUAL SELECTIVE CONTROL)
15	12H304	1	Lock Washer	3/8", (1 USED SINGLE SELECTIVE CONTROL) (2 USED DUAL SELECTIVE CONTROL)
16	AR38307	1	OIL LINE	L.H. INNER, (WITH DUAL SELECTIVE CONTROL AND AR38036 L.H. DUAL FRONT OUTLET) (NO LONGER AVAILABLE)
16	AR38475	1	LINE	(A) L.H. INNER (NLA)
17	AR38474	1	OIL LINE	(A) L.H. OUTER
17	AR38306	1	OIL LINE	L.H. OUTER, (WITH DUAL SELECTIVE CONTROL AND AR38036 L.H. DUAL FRONT OUTLET) (NO LONGER AVAILABLE)
18	19H1813	1	CAP SCREW	(A) 5/16" X 5/8"
19	R38384	1	BRACKET	(A) (NLA)
20	14H785	1	Nut	(A) 5/16"
20	12H303	1	Lock Washer	(A) 5/16"
21	19H1936	1	Cap Screw	(A) 3/8" X 3/4"
22	24M7096	1	Washer	(A) 10.500 X 18 X 1.600 MM
23	14H1076	1	Nut	(A) 3/8"
23	12H304	1	Lock Washer	(A) 3/8"
24	R28733	1	CLAMP	(A)
25	R28734	1	GROMMET	(A)
26	R26375	2	O-Ring	(A)
27	AR31674	2	Fitting	(A) 90°
28	R28717	1	FITTING	-
29	AR26766	1	OIL LINE	RETURN
30	AR26767	1	TEE FITTING	TO STEERING VALVE
31	R26286	1	O-Ring	-

FRONT SELECTIVE CONTROL OIL LINES [02G07]
