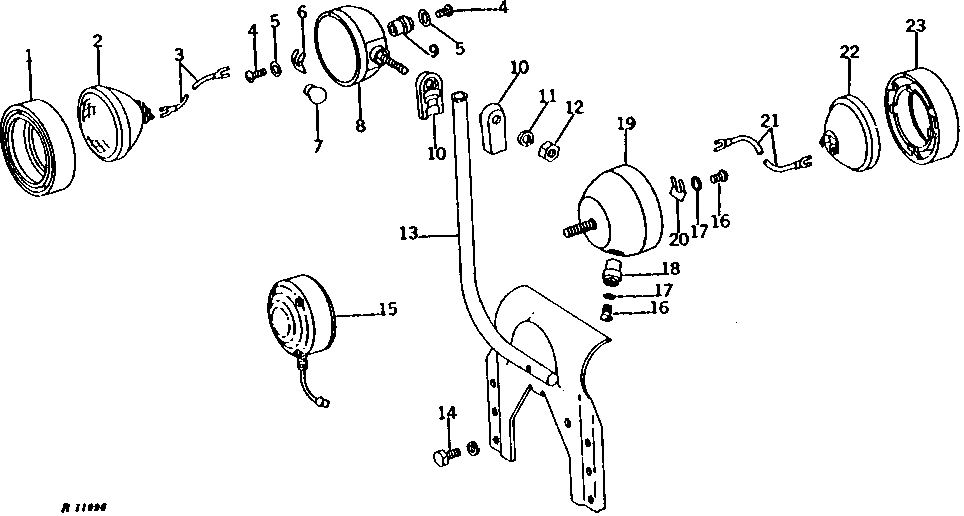

FRONT AND REAR LAMP PARTS AND REAR LAMP SUPPORT [01H11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	1	BEZEL	(C)
1	R30182	1	BEZEL	(B)
2	AR77324	1	LAMP	(USE WITH AR77326)
2	AR21737	1	BULB	(SUB AR77324, AD2062R AND AR77325)
3	-	2	Part 5	165MM (6-1/2") (MAKE FROM R66319 AND (2) R32016)
4	21H1293	4	SCREW	0.164" X 5/16"
5	12M7084	4	Lock Washer	0.169"
6	A2899R	2	SPRING	(C)
7	AR86969	1	BULB	(A) 15 C.P. (USE WITH AT16288) (SUB FOR AR21739)
7	AD2062R	1	Bulb	(A) 32 C.P. (USE WITH AR77326)
8	AR55888	1	SOCKET	(USE WITH AT16288)
8	AR77325	1	SOCKET	(USE WITH AR77326)
8	AR77326	1	FLOODLAMP	FLOOD AND TAIL, (SUB FOR AT16288)
9	R30181	2	PLATE	(B)
9	AA3495R	2	SUPPORT	(C)
10	R27460	2	ELEC. CONNECTOR ACCESSORY	-
11	12H301	1	Lock Washer	1/2"
12	14H1040	1	Nut	1/2" HS, SAE 8
13	AR26755	1	SUPPORT	-
14	19H1936	2	Cap Screw	3/8" X 3/4"
14	12H304	2	Lock Washer	3/8"
15	AT23467	1	LAMP	WARNING, (SUB FOR AR38456)
15	AD2062R	1	Bulb	32 C.P.
15	R42666	1	LENS	AMBER
15	R42667	1	LENS	RED
16	21H1293	2	SCREW	0.164" X 5/16"
17	12M7084	2	Lock Washer	0.169"
18	R30181	1	PLATE	(B)
18	AA3495R	1	SUPPORT	(C)
19	AT13381	2	HEADLIGHT	(A) (R AND H)
19	AT13380	2	FLOODLAMP	(A) (R) (FENDER LAMP ONLY)
20	A2899R	1	SPRING	(C)
21	-	1	Part 33	165MM (6-1/2") (MAKE FROM R66319 AND (2) R32016)
22	AF3892R	1	Bulb	(A) (R AND H)
22	AR21059	1	HEADLIGHT	(A) (R) (FENDER LAMP ONLY)
22	RE285628	1	FLOODLAMP	LED LAMP, FLOOD PATTERN.
22	RE285629	1	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
23	R30182	1	BEZEL	(B)
23	R31250	1	BEZEL	(C)
