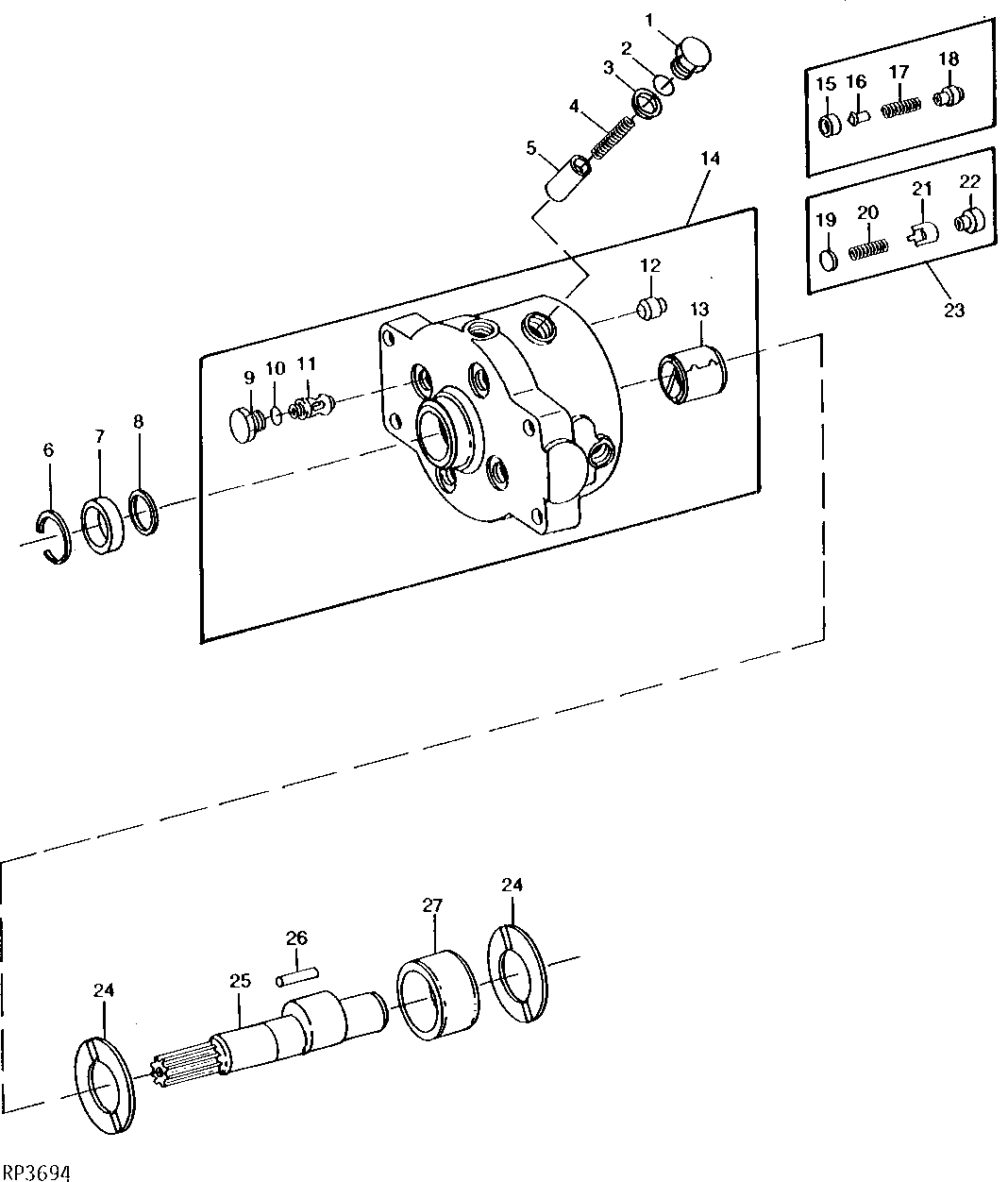

FOUR PISTON HYDRAULIC PUMP 24.5 CM3 (1.5 IN.3) (LESS SERIAL PLATE) [02E22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	4	Fitting	(SUB FOR R34353)
2	R495R	4	O-Ring	(SUB (4) R56463 AND AR101236)
3	R56749	4	DUST SHIELD	(SUB FOR AR101236)
4	AR76761	1	SPRING	(SET OF 4) (SUB FOR AR40452)
5	R27150	4	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR52224)
8	R39729	1	O-RING	-
9	R78293	4	FITTING	(SUB FOR R27148 OR R44823)
10	R27149	4	O-Ring	-
11	AR53301	4	VALVE	(INLET) (SUB FOR AR26758)
12	R105583	4	Valve Seat Insert	-
13	R38036	1	BUSHING	-
14	AR38885	1	HOUSING	(MARKED R38561)
14	AR38850	1	HOUSING	(MARKED R38561) (SUB AR38885 AND (4) RE23382)
14	AR38219	1	HOUSING	(MARKED R38035) (SUB AR38885 AND (4) RE23382)
15	R27155	4	WASHER	-
16	R27154	4	POPPET	-
17	R38531	4	SPRING	(SUB FOR R27156)
18	R27157	4	GUIDE	-
19	R49297	4	DISK	-
20	R39228	4	SPRING	-
21	R48738	4	GUIDE	(SUB FOR R39174)
22	R83508	4	Stop	(SUB FOR R39175, R49298 OR R72886)
23	RE23382	4	Valve	(OUTLET) (SUB FOR AR39026, AR52099, AR52785 OR AR96613)
24	R38038	2	THRUST WASHER	-
25	R38037	1	SHAFT	-
26	R27145	36	NEEDLE ROLLER	-
27	R45874	1	BEARING RACE	-
..	AR38217	1	HYDRAULIC PUMP	(SUB AR97872) (ALSO ORDER AR38926, AT33033, R39741, P47908, U13639 AND F3171R)

FOUR PISTON HYDRAULIC PUMP 24.5 CM3 (1.5 IN.3) (LESS SERIAL PLATE) [02E22]
