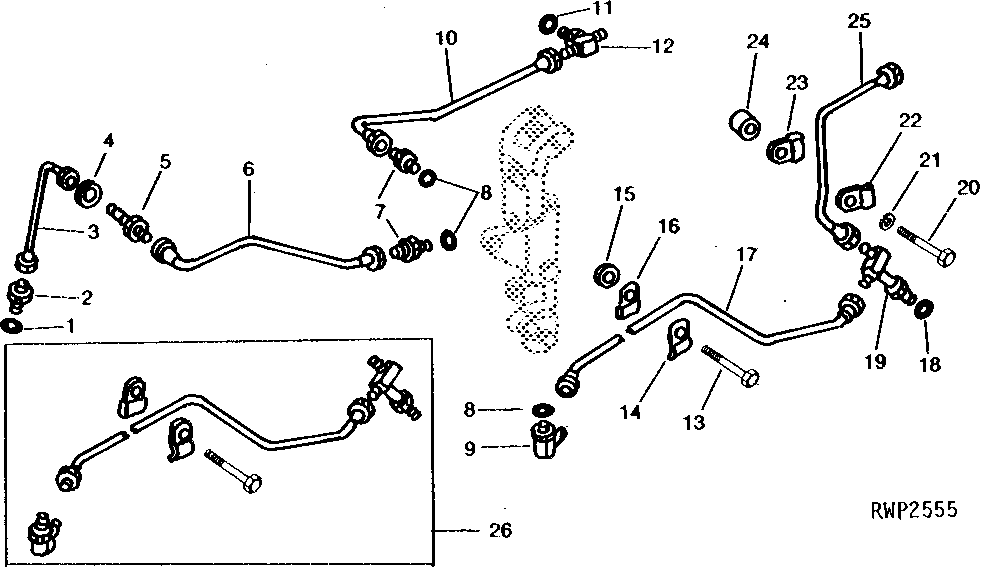

DIFFERENTIAL LOCK VALVE OIL PIPES (SYNCRO-RANGE) [02D14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30903	1	O-Ring	-
2	R39597	1	ADAPTER FITTING	-
3	AR42613	1	OIL LINE	INNER, (SUB FOR AR33967)
4	T16911	1	SHIM	-
5	AR34569	1	FITTING	-
6	AR34568	1	OIL LINE	OUTER (ROW-CROP)
6	AR39823	1	LINE	OUTER (HI-CROP) (NLA)
7	R27272	2	Fitting	-
8	R26286	3	O-Ring	-
9	AT32333	1	ELBOW FITTING	90°, (SUB FOR AR26771)
9	AR40475	1	ELBOW FITTING	90°
10	AR39792	1	LINE	(NLA)
11	R26287	1	O-Ring	-
12	AR39795	1	Tee Fitting	-
13	19H2128	1	CAP SCREW	3/8" X 3"
13	19H1944	1	Cap Screw	3/8" X 2-3/4"
14	R42357	1	CLAMP	(SUB FOR R27545)
14	R31654	1	CLAMP	-
15	A147R	1	WASHER	-
16	R34819	1	PLATE	-
16	R31655	1	STRAP	-
17	AR33971	1	LINE	(SUB AR40602)
17	AR40477	1	OIL LINE	-
18	R26287	1	O-Ring	-
19	AR39679	1	TEE FITTING	(SUB AR40602)
19	AR40472	1	TEE FITTING	-
20	19H2661	1	Cap Screw	5/16" X 1-3/8"
21	12H303	1	Lock Washer	5/16"
22	R31654	1	CLAMP	-
23	R31655	1	STRAP	-
24	28H3381	1	Spacer	3/8" X 5/8"
25	AR39678	1	OIL LINE	LOWER
26	AR40602	1	LINE	BRAKE VALVE TO DIFFERENTIAL LOCK VALVE

DIFFERENTIAL LOCK VALVE OIL PIPES (SYNCRO-RANGE) [02D14]
