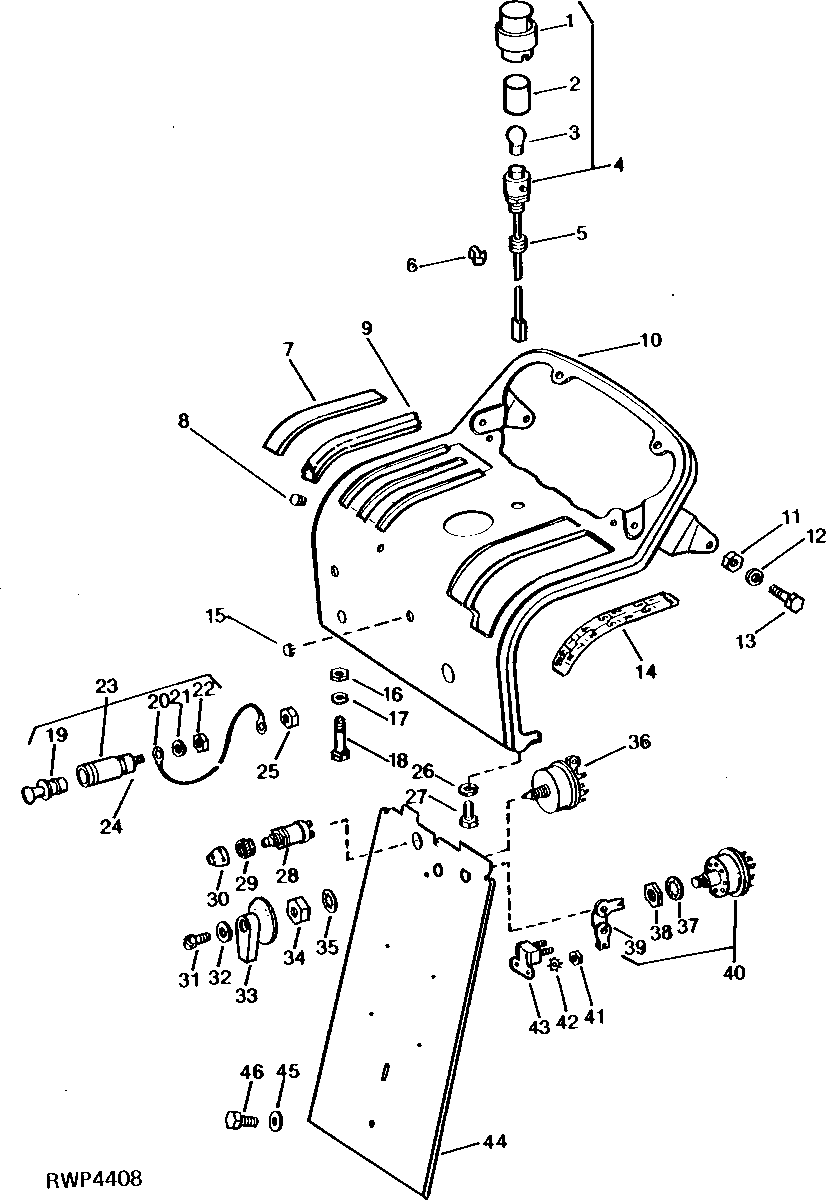

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP [02K19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40192	1	COVER	-
2	R28792	1	LENS	-
3	AT12948	1	BULB	6 C.P.
4	AR33479	1	LAMP	DASH
5	A3411R	1	Grommet	-
6	F2084R	1	CLIP	-
7	R27361	1	ISOLATOR	(1 USED LESS ROCKSHAFT) (2 USED LESS SELECTIVE CONTROL)
8	R27983	1	Plug	(LESS ROCKSHAFT)
9	AR91941	1	STOP	(NLA)
10	AR34962	1	INSTRUMENT PANEL	(A) (ALSO ORDER R27361) (SUB FOR AR34960) (NLA)
10	AR68197	1	INSTRUMENT PANEL	(B) (SUB FOR AR34959)
11	14H1076	2	Nut	3/8"
12	12H304	2	Lock Washer	3/8"
13	19H1936	2	Cap Screw	3/8" X 3/4"
14	R40504	1	LABEL	SHIFT, (SUB FOR R34533)
14	R40676	1	LABEL	SHIFT
14	R40505	1	LABEL	SHIFT PARK, (SUB FOR R34534)
15	M42229	1	PLUG	(GASOLINE) (SUB FOR R32234 OR T11708)
16	14H1076	1	Nut	3/8"
17	12H304	1	Lock Washer	3/8"
18	19H1765	1	Cap Screw	3/8" X 1-3/4"
19	AR60937	1	Electrical Lighter	(SUB FOR AA5787R)
20	AR94130	1	WIRING LEAD	-
21	12M7084	1	Lock Washer	0.169"
22	14H605	1	Nut	0.164"
23	AR48643	1	ELECTRICAL LIGHTER	(12-VOLT) (SUB FOR AR34556)
24	AR30394	1	CIRCUIT BREAKER	-
25	14H631	1	Nut	0.190"
26	12H304	1	Lock Washer	3/8"
27	19H1936	1	Cap Screw	3/8" X 3/4", (GASOLINE)
27	19H1732	1	Cap Screw	3/8" X 1-1/4", (DIESEL)
28	R39554	1	Switch	STARTER, (ALSO ORDER AR47374) (SUB FOR AR47373)
29	R21157	1	NUT	(SUB AR47374)
30	AR47374	1	Cap	(SUB FOR R39549)
31	21H1299	1	SCREW	0.164" X 3/8"
32	12H315	1	Lock Washer	0.164"
33	R27963	1	KNOB	LIGHT SWITCH, (SUB AT65316)
34	A4655R	1	Nut	-
35	12H292	1	Lock Washer	1/2"
36	AR41288	1	SWITCH	LIGHT, (SUB FOR R39551)
37	12M7038	1	Lock Washer	0.650"
38	T15969	1	Nut	-
39	A4700R	1	KEY	-
40	AR39505	1	ROTARY SWITCH	KEY
41	14H631	4	Nut	0.190"
42	12M7060	4	Washer	0.209"
43	AR28403	1	CIRCUIT BREAKER	-
44	AR38289	1	COVER	(A) (NO LONGER AVAILABLE)
44	AR38288	1	COVER	(B) (NO LONGER AVAILABLE)
45	24H1305	1	Washer	13/32" X 13/16" X 0.065"
46	19H1936	1	Cap Screw	3/8" X 3/4"

CONTROL SUPPORT COVER, SWITCHES, DASH, AND DASH LAMP [02K19]
