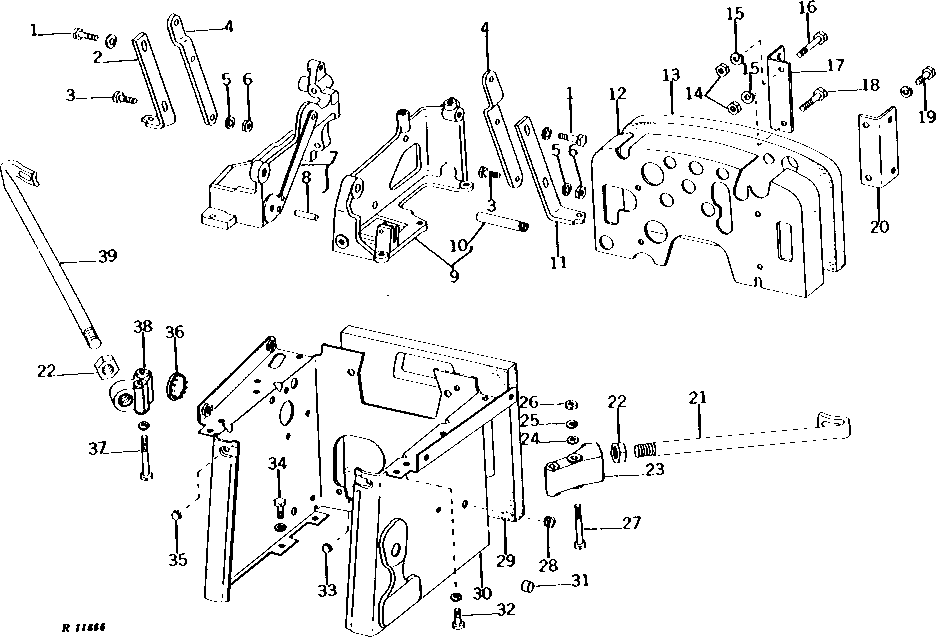

CONTROL SUPPORT AND ASSOCIATED PARTS [02K17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	2	Lock Washer	3/8"
1	19H2552	2	CAP SCREW	3/8" X 1-1/8"
2	R31231	1	SUPPORT	HOOD
3	19H1731	2	Cap Screw	3/8" X 1"
4	R31229	2	SUPPORT	DASH (NLA)
5	12H310	2	Lock Washer	3/8"
6	14H1076	2	Nut	3/8"
7	AR38044	1	BRACKET	STEERING VALVE, (MARKED R38125) (NLA)
8	H826R	1	DOWEL PIN	-
9	AR38320	1	BRACKET	(A) STEERING VALVE, (MARKED R38191) (NLA)
9	AR38500	1	BRACKET	(A) STEERING VALVE, (MARKED R38191) (NLA)
9	R38189	1	BRACKET	(B) (NLA)
10	R33601	1	PIN FASTENER	(A) TRANSMISSION CONTROL LEVER
10	R41510	1	PIN FASTENER	(A) TRANSMISSION CONTROL LEVER
11	R31230	1	SUPPORT	HOOD (NLA)
12	AR34927	1	ISOLATOR	(NO LONGER AVAILABLE)
13	R56059	1	PAD	(SUB FOR R34562)
14	14H1076	2	Nut	(D) 3/8"
15	12H304	2	Lock Washer	(D) 3/8"
16	19H1726	1	Cap Screw	(D) 3/8" X 2-1/4"
17	R26895	1	ANGLE	(D) DASH SUPPORT (NLA)
18	19H1765	1	Cap Screw	(D) 3/8" X 1-3/4"
19	12H304	2	Lock Washer	3/8"
19	19H2284	2	Cap Screw	3/8" X 7/8"
20	R26895	1	ANGLE	DASH SUPPORT (NLA)
21	R27941	1	SUPPORT	(C) LAMP
22	C985R	2	NUT	(C)
23	R38341	1	BRACKET	(C) (NLA)
24	24H1305	2	Washer	(C) 13/32" X 13/16" X 0.065"
25	12H304	2	Lock Washer	(C) 3/8"
26	14H1076	2	Nut	(C) 3/8"
27	19H1944	2	Cap Screw	(C) 3/8" X 2-3/4"
28	R34811	2	GROMMET	-
29	R38146	1	FOAM PAD	(NO LONGER AVAILABLE)
30	AR38216	1	SUPPORT	(NO LONGER AVAILABLE)
31	F2030R	1	BUSHING	PTO CLUTCH LEVER SHAFT
32	19H1731	1	Cap Screw	3/8" X 1", (5 USED SYNCRO-RANGE) (6 USED POWER SHIFT)
32	12H304	1	Lock Washer	3/8", (5 USED SYNCRO-RANGE) (6 USED POWER SHIFT)
33	R28473	1	Plug	(DIESEL)
34	19H1936	6	Cap Screw	3/8" X 3/4"
34	12H304	6	Lock Washer	3/8"
35	R28473	1	Plug	(B)
36	R20513	1	PLUG	(B)
37	19H1944	2	Cap Screw	(C) 3/8" X 2-3/4"
37	12H304	2	Lock Washer	(C) 3/8"
38	R34743	1	BRACKET	(C) (NLA)
39	R33767	1	SUPPORT	(C) LAMP (NLA)

CONTROL SUPPORT AND ASSOCIATED PARTS [02K17]
