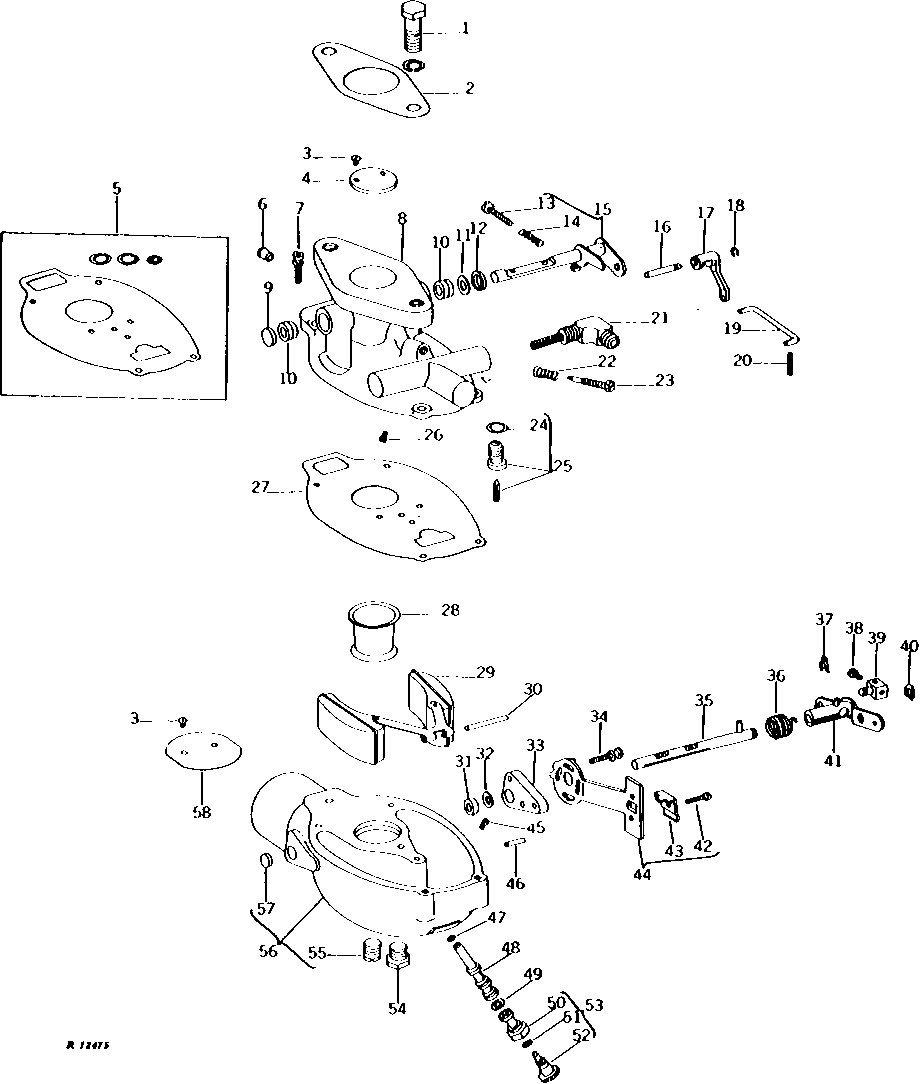

CARBURETOR (MARVEL-SCHEBLER TSX-894, 905 OR 9055L) (GASOLINE) (ENGINE SERIAL NO. -045638) [01E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	2	Lock Washer	3/8"
1	19H1731	2	Cap Screw	3/8" X 1"
2	T10079	1	GASKET	-
3	15-483	4	SCREW	-
4	R56747	1	ACCELERATOR	(SUB FOR 14-273)
5	AR56086	1	GASKET KIT	(SUB FOR 16-654)
6	B17682	1	PLUG	IDLE DRILL HOLE
7	15-A85	4	SCREW	NO. 12 X 3/4"
8	AT23016	1	HOUSING	(SUB RE19402)
9	R10300	1	PLUG	-
10	T23531	2	NEEDLE BEARING	(SUB JD8867)
11	R10194	1	PACKING	-
12	R10182	1	ROUND RETAINER	-
13	T27410	1	SCREW	-
14	R10104	1	SPRING	-
15	AT25819	1	SHAFT	(SUB FOR AT22992)
16	T25147	1	PIN FASTENER	-
17	T25158	1	LEVER	FAST IDLE CAM
18	R31935	1	Snap Ring	(SUB FOR T25148)
19	T25149	1	PIN	-
20	11M7075	2	Cotter Pin	1.200 X 12 MM
21	T23528	1	STRAINER	-
22	24-340	1	SPRING	-
23	43-33	1	NEEDLE	IDLE ADJUSTING
24	R10170	1	GASKET	-
25	AT25491	1	VALVE	(ALSO ORDER T23532 AND T23536) (SUB FOR AT17437)
26	49-101L	1	NOZZLE	-
27	16-A41	1	GASKET	-
28	T23525	1	VENTURI	(SUB R61642)
29	30-739	1	FLOAT	-
30	R10211	1	SHAFT	-
31	R10186	1	SEAL	CHOKE SHAFT
32	R10187	1	SHIM	-
33	-	1	Part 34	(NOT REQUIRED)
34	T23522	2	SCREW	-
35	AT22990	1	SHAFT	CHOKE
36	T23523	1	SPRING	-
37	R10185	1	Spring Locking Pin	-
38	21H971	1	SCREW	0.164" X 5/16"
39	R10184	1	SWIVEL	-
40	T23529	1	Snap Ring	-
41	AT22989	1	LEVER	-
42	15-A295	1	SCREW	-
43	R10188	1	CLIP	-
44	AT22993	1	BRACKET	-
45	T25157	1	NOZZLE	-
46	34H242	1	Spring Pin	1/8" X 7/16"
47	16-456	1	GASKET	-
48	T719T	1	NOZZLE	MAIN
49	16-47	1	GASKET	-
50	T16310	1	PLUG	-
51	T17951	1	O-Ring	(SUB FOR R27490)
52	AT23014	1	NEEDLE	(NO LONGER AVAILABLE)
53	AT23015	1	NEEDLE	-
54	R10160	1	PIPE PLUG	-
55	99-4	1	PIPE PLUG	3MM (1/8")
56	AT21353	1	HOUSING	(SUB RE19402)
57	R10150	1	PLUG	-
58	T23524	1	CHOKE	-
..	AT21848	1	CARBURETOR	(SUB RE19402)
..	AR52589	1	KIT	CARBURETOR REPAIR, (SUB FOR AT22995)
