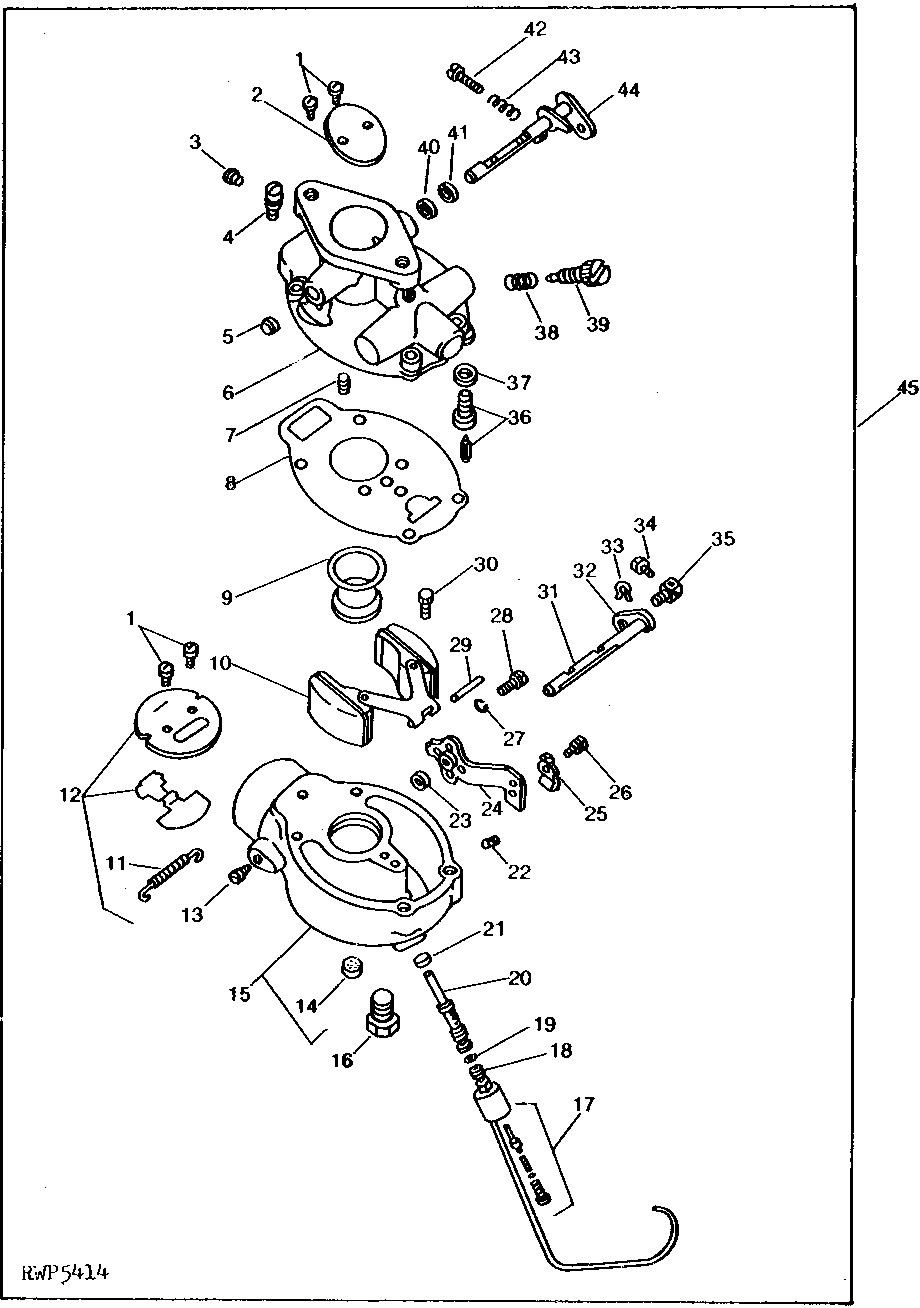

CARBURETOR (MARVEL-SCHEBLER NO. TSXU-963) [01E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15-483	4	SCREW	-
2	14-273	1	ACCELERATOR	-
3	B17682	1	PLUG	-
4	15-A85	4	SCREW	-
5	R10198	1	PLUG	-
5	T23531	1	NEEDLE BEARING	-
6	-	1	Part 7	(SUB RE19402 AND RE19408)
7	49-101L	1	NOZZLE	-
8	16-A41	1	GASKET	-
9	R61642	1	VENTURI	-
10	30-739	1	FLOAT	-
11	H22551	1	SPRING	-
12	AR102785	1	CHOKE	-
13	T16106	1	SET SCREW	(NO LONGER AVAILBLE)
14	95-78	1	STRAINER	-
15	AT14777	1	HOUSING	(NO LONGER AVAILABLE)
16	R10160	3	PIPE PLUG	-
17	AT31442	1	FLOW CONTROL HYD. VALVE	-
18	AR67706	1	SOLENOID	-
19	16-47	1	GASKET	-
20	T719T	1	NOZZLE	-
21	16-456	1	GASKET	-
22	R75968	1	INJECTION NOZZLE	(NO LONGER AVAILABLE)
23	44-38	1	PACKING	-
24	-	1	Part 25	(NO LONGER AVAILABLE)
25	R10188	1	CLIP	-
26	21H1299	1	SCREW	0.164" X 3/8"
27	12M7084	1	Lock Washer	0.169"
28	15-A295	2	SCREW	-
29	R10211	1	SHAFT	-
30	37H99	2	Screw	0.100" X 1/4"
31	R75967	1	SHAFT	-
32	AR66031	1	LEVER	-
33	R10185	1	Spring Locking Pin	-
34	21H971	1	SCREW	0.164" X 5/16"
35	-	1	Part 36	(NO LONGER AVAILABLE)
36	AT14476	1	SEAT	-
37	R10170	1	GASKET	-
38	24-340	1	SPRING	-
39	43-33	1	NEEDLE	IDLE ADJUSTING
40	44-68	2	PACKING	-
40	T23531	1	NEEDLE BEARING	-
41	55-261	2	RETAINER	-
42	21H977	1	SCREW	0.164" X 3/4"
43	R10104	1	SPRING	-
44	AR102781	1	SHAFT	-
45	AR62244	1	CARBURETOR	COMPLETE, (SUB RE19402 AND RE19408)
..	AR102783	1	KIT	ADAPTER, (INCLUDED IN AR62244)
..	AR102784	1	KIT	REPAIR, (INCLUDED IN AR62244)

CARBURETOR (MARVEL-SCHEBLER NO. TSXU-963) [01E06]
