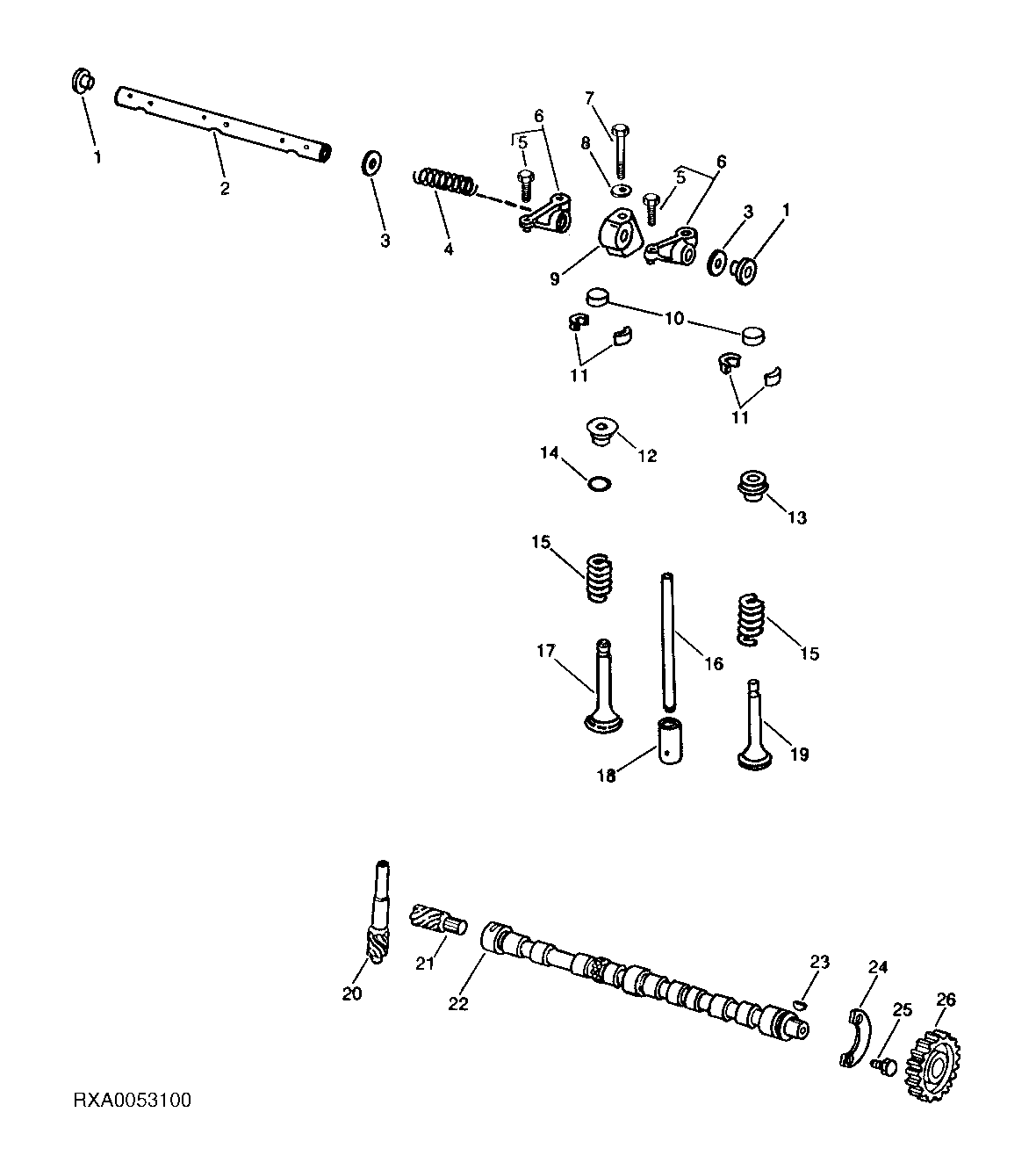

CAMSHAFT, ROCKER ARMS, VALVES AND GEAR [01B08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54565	2	Plug	(SUB FOR T23469)
2	R54987	1	SHAFT	(ALSO ORDER (2) R54565) (SUB FOR T23470)
3	T20316	2	Washer	-
4	T20314	3	Spring	-
5	-	8	Part 5	(SUB RE31973)
6	RE19031	8	ROCKER ARM	(SUB FOR AT22665, AT18129 OR AT31250) (SUB RE31973)
7	19H1733	4	CAP SCREW	3/8" X 2-1/2"
8	24M7106	4	Washer	10 X 18 X 2.500 MM, (SUB FOR T23594)
9	T20315	4	SUPPORT	-
10	T20129	8	Cap	(A)
11	T20077	16	Retainer	-
12	T20169	4	CAP	(B)
12	T20176	4	RETAINER	(A) (SUB RE11410)
13	T20287	4	ROTATOR	(B)
13	T20176	4	RETAINER	(A) (SUB RE11410)
14	R27976	4	O-Ring	(B)
15	R26125	8	Spring	-
16	T20297	8	PIN	(B)
16	T20310	8	PIN	(A) (SUB R82896)
17	R57336	4	INTAKE VALVE	(A) 0.76MM (.030") OS STEM, (SUB FOR T23548) (NLA)
17	R57334	4	INTAKE VALVE	(A) 0.38MM (.015") OVERSIZE STEM, (SUB FOR T23547) (SUB R79629)
17	T26176	4	INTAKE VALVE	(B) 0.38MM (.015") OVERSIZE STEM
17	R57332	4	INTAKE VALVE	(A) 0.08MM (.003") OVERSIZE STEM, (SUB FOR T23546) (SUB R79628)
17	T26177	4	INTAKE VALVE	(B) 0.76MM (.030") OVERSIZE STEM
17	T26175	4	INTAKE VALVE	(B) 0.08MM (.003") OVERSIZE STEM
17	T25466	4	INTAKE VALVE	(B) STANDARD STEM
17	R52251	4	INTAKE VALVE	(A) STD STEM, (SUB FOR T20174) (SUB R79623)
18	T20073	8	Cam Follower	-
19	R57333	4	EXHAUST VALVE	(A) 0.08MM (.003") OS STEM, (SUB FOR T23549) (SUB R79625)
19	R57337	4	EXHAUST VALVE	(A) 0.76MM (.030") OS STEM, (SUB FOR T23551) (NLA)
19	R57335	4	EXHAUST VALVE	(A) 0.38MM (.015") OVERSIZE STEM, (SUB FOR T23550) (SUB R79626)
19	R52252	4	EXHAUST VALVE	(A) STANDARD STEM, (SUB FOR T20175) (SUB R79624)
19	T26180	4	EXHAUST VALVE	(B) 0.76MM (.030") OVERSIZE STEM
19	T26179	4	EXHAUST VALVE	(B) 0.38MM (.015") OVERSIZE STEM
19	T26178	4	EXHAUST VALVE	(B) 0.08MM (.003") OVERSIZE STEM
19	T25467	4	EXHAUST VALVE	(B) STANDARD STEM
20	T22536	1	Gear	SPEED-HOUR METER DRIVE
21	T22535	1	Shaft	SPEED-HOUR METER DRIVE
22	AT20830	1	Camshaft	(MARKED T20013) (SUB R81514 AND R82820)
23	26H72	1	Shaft Key	1/8" X 5/8"
24	T20072	1	Plate	-
25	19H1731	2	Cap Screw	3/8" X 1"
26	T20070	1	Helical Gear	(48 TEETH)

CAMSHAFT, ROCKER ARMS, VALVES AND GEAR [01B08]
