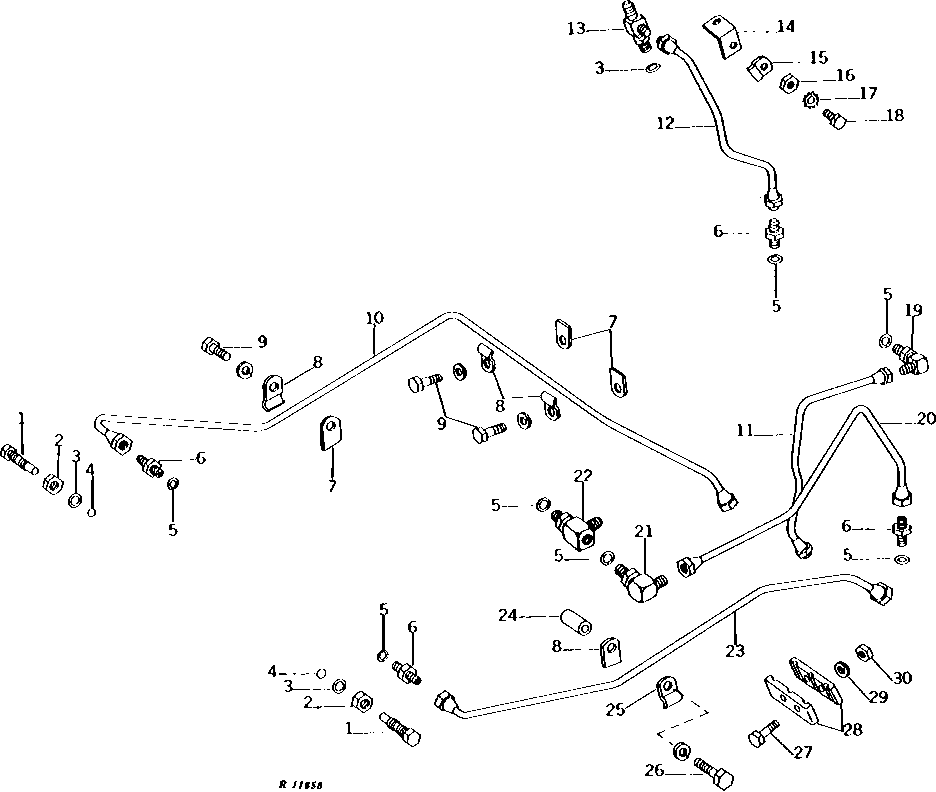

BRAKE OIL LINES (SYNCRO-RANGE) [02E02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27906	2	FITTING PLUG	BLEED VALVE
2	R27296	2	Nut	-
3	R26286	3	O-Ring	-
4	R42849	2	Ball	10MM (3/8") (SUB FOR 405R)
5	R26287	7	O-Ring	-
6	R27527	4	ADAPTER FITTING	-
7	R31655	3	STRAP	-
8	R31654	4	CLAMP	-
9	19H1936	3	Cap Screw	3/8" X 3/4"
9	12H304	3	Lock Washer	3/8"
10	AR26848	1	OIL LINE	L.H.
11	AR32239	1	OIL LINE	(A) LOWER PRESSURE
11	AR39678	1	OIL LINE	(B) LOWER PRESSURE
12	AR38321	1	OIL LINE	UPPER PRESSURE
13	AR30762	1	Tee Fitting	(SUB FOR AR39668)
14	R34651	1	BRACKET	-
15	R31654	1	CLAMP	-
16	14H785	1	Nut	5/16"
17	12M7032	1	Lock Washer	0.331"
18	19H1813	1	CAP SCREW	5/16" X 5/8"
19	AR26746	1	Elbow Fitting	90°, (SUB FOR AT32335)
20	AR39791	1	OIL LINE	RETURN
21	AR26746	1	Elbow Fitting	(A) 90°, (SUB FOR AT32335)
21	AR39795	1	Tee Fitting	(B)
22	AR33988	1	TEE FITTING	-
23	AR33970	1	OIL LINE	R.H.
24	28H1497	1	Bushing	3/8" X 1-1/2"
25	R31655	1	STRAP	(A)
25	R34819	1	PLATE	(B)
26	19H1944	1	Cap Screw	3/8" X 2-3/4"
26	12H304	1	Lock Washer	3/8"
27	19H1849	2	Cap Screw	(A) 5/16" X 1-1/4"
28	R36086	2	CLAMP	(A)
29	12H303	2	Lock Washer	(A) 5/16"
30	14H785	2	Nut	(A) 5/16"

BRAKE OIL LINES (SYNCRO-RANGE) [02E02]
