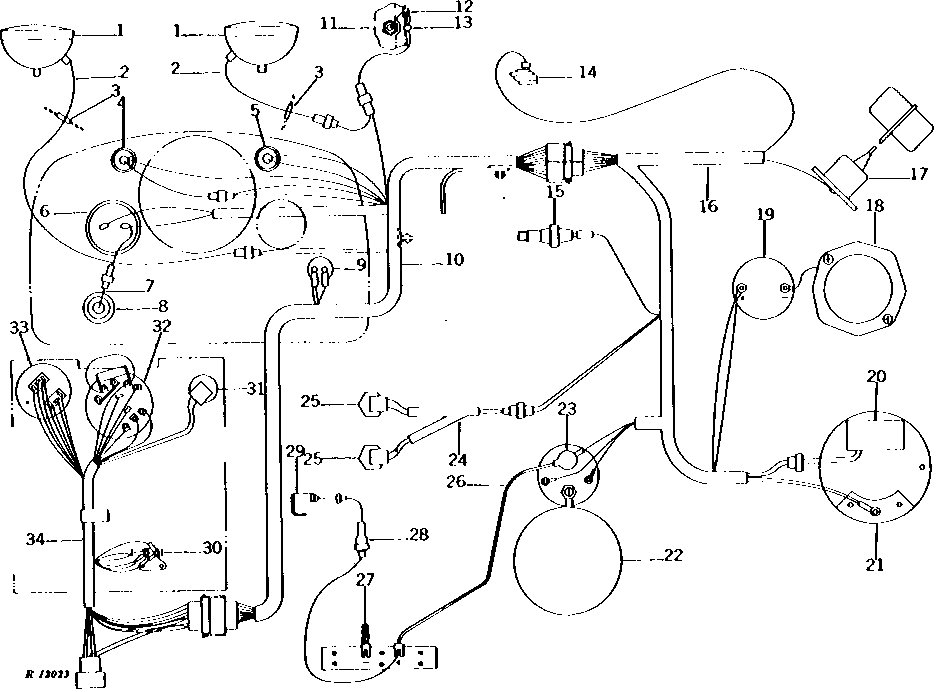

ALTERNATOR, IGNITION, AND STARTING MOTOR WIRING (GASOLINE) [01G06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	D2865R	2	WASHER	(B) (SUB 24H1111)
1	AT13381	2	HEADLIGHT	(A) (B) SIDE
1	14H1040	2	Nut	(B) 1/2"
1	12H301	2	Lock Washer	(B) 1/2"
2	-	2	Part 5	(B) 686MM (27") SIDE LAMP, (MAKE FROM R66319, R32016, R32027 AND AR65005)
3	R26941	2	Grommet	(B)
4	AR27944	1	LAMP	ENGINE OIL PRESSURE INDICATOR, (SUB AT48674, AR55694, AT44165 AND R30378)
5	AT14699	1	INDICATOR LAMP	ALTERNATOR
6	R34262	1	GAUGE	FUEL
7	-	1	Part 10	305MM (12") (MAKE FROM R66319, R32018, R32027 AND AR65005)
8	AR48643	1	ELECTRICAL LIGHTER	(A) (SUB FOR AR34556)
9	AR21823	1	SWITCH	HORN, (SUB FOR AR20235)
10	14H1076	1	Nut	3/8"
10	14H1076	1	Nut	3/8"
10	24H1302	1	Washer	13/32" X 11/16" X 0.035"
10	B1828R	1	Bushing	-
10	R34557	1	Clamp	INSTRUMENT HARNESS TO L.H. REAR DASH TO CONTROL SUPPORT
10	19H2873	1	CAP SCREW	3/8" X 2-3/4"
10	28H1495	1	Spacer	3/8" X 1"
10	24H1302	1	Washer	13/32" X 11/16" X 0.035"
10	R34557	1	Clamp	INSTRUMENT HARNESS TO CONTROL SUPPORT
10	AR47686	1	WIRING HARNESS	INSTRUMENT, (SUB FOR R39641 OR AR44953)
10	12H304	1	Lock Washer	3/8"
11	AR33479	1	LAMP	DASH
12	A3411R	1	Grommet	-
13	F2084R	1	CLIP	-
14	AT39043	1	High Note Horn	(A) (LOW NOTE) (SUB FOR R11276)
15	AR27977	1	TOUCH SWITCH	ENGINE OIL PRESSURE
15	AR45694	1	WIRING LEAD	-
16	AR38195	1	WIRING HARNESS	ENGINE, (SUB AR38873)
16	R44302	9	Tie Band	(SUB FOR R27457)
16	R32320	1	Clip	-
17	AR38269	1	SENDER	FUEL GAUGE
18	AT21351	1	IGNITION DISTRIBUTOR	(PRESTOLITE NO. IBT-4101U)
19	AT14385	1	ELECTRICAL COIL	(PRESTOLITE)
20	AR78298	1	VOLTAGE REGULATOR	(A) (MOTOROLA MODEL NO. R3JD1-B) (SUB FOR AR38459 OR AR52927)
21	AR38458	1	ALTERNATOR	(A) (MOTOROLA MODEL NO. RA12NJD453-S) (SUB TY24306)
21	TY24306	1	ALTERNATOR	(REMANUFACTURED) (354 AMP) (SUB FOR AR38458 OR TY1427)
22	AR91813	1	STARTER MOTOR	(DELCO-REMY NO. 1107339) (SUB FOR AT18025) (SUB TY6706)
22	TY6706	1	STARTER MOTOR	(REMANUFACTURED) (SUB FOR AR91813 OR TY6639)
23	R30964	1	Cover	STARTER TERMINAL
24	AR38418	1	WIRING HARNESS	(ORDER AR38872 OR AR38873) (POWER SHIFT) NEUTRAL START SWITCH TO ENGINE HARNESS
24	R33823	1	WIRING HARNESS	(SYNCRO-RANGE) NEUTRAL START SWITCH TO ENGINE HARNESS
24	A5172R	1	CLIP	(POWER SHIFT)
25	RE38390	1	SWITCH	NEUTRAL START (1 USED SYNCRO-RANGE) (2 USED POWER SHIFT) (SUB FOR R36265, AR85323, AR89691 OR AT85153)
26	AR45923	1	BATTERY CABLE	POSITIVE, R.H. (SUB FOR AR38359)
26	R27533	1	Grommet	-
26	T13814	1	Clamp	-
26	24H1302	1	Washer	13/32" X 11/16" X 0.035"
26	B1828R	1	Bushing	-
27	AR26622	1	GROUND CABLE	NEGATIVE, R.H.
27	24M7096	1	Washer	10.500 X 18 X 1.600 MM
28	AR26756	1	WIRING LEAD	WITH FUSE
28	R44302	1	Tie Band	(SUB FOR R27457)
29	AR26571	1	SOCKET	ELECTRICAL OUTLET
29	21H1301	2	SCREW	0.190" X 1/2"
29	12M7060	2	Washer	0.209"
29	14H778	2	Nut	0.190"
29	AR40710	1	PLUG	(SUB FOR AA5691R) (FI)
29	AA5692R	1	ELEC. CONNECTOR TERMINAL	-
30	AR28403	1	CIRCUIT BREAKER	-
31	R39554	1	Switch	STARTER, (SUB FOR AR47373)
32	AR41288	1	SWITCH	LIGHT, (SUB R39551)
33	AR39505	1	ROTARY SWITCH	KEY
34	AR47685	1	WIRING HARNESS	SWITCH, (SUB FOR R39555 OR AR44952)
..	AT66865	1	Lubricant	0.15L (5.3 OZ) TUBE, ELECTRICAL, (SUB FOR AR94760)
