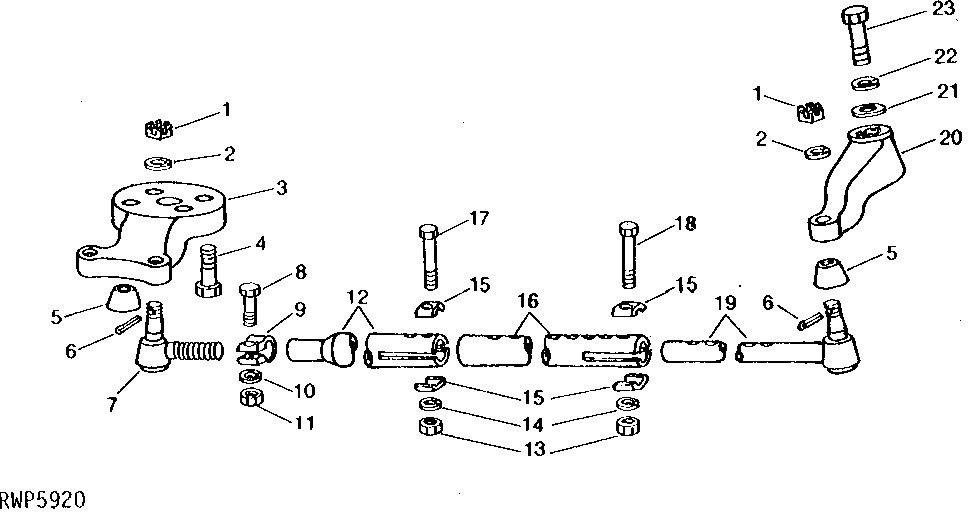

ADJUSTABLE FRONT AXLE STEERING ARMS AND TIE RODS [02J14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H918	4	NUT	5/8"
2	12H294	4	Lock Washer	5/8"
3	R27808	1	ARM	-
4	19H2663	4	CAP SCREW	3/4" X 2-1/8"
5	R40589	4	COVER	-
6	11M7083	4	Cotter Pin	0.126" X 1.969"
7	AR27351	2	BALL JOINT	-
8	19H1990	2	Cap Screw	1/2" X 2-1/4"
9	R28023	2	CLAMP	-
10	12H301	2	Lock Washer	1/2"
11	14H1040	2	Nut	1/2"
12	R28021	2	TUBE	(A)
12	R30748	2	TUBE	(A) (USED WITH KNEE EXTENSION) (NLA)
12	R28743	2	TUBE	(B) (SUB R47843)
13	C744DN	4	LOCK NUT	(SUB FOR T11234)
14	12H304	4	Lock Washer	3/8"
15	R28024	8	Half Clamp	-
16	R28022	2	TUBE	-
16	R31573	2	TUBE	(A) (WITH 2235MM (88") ADJUSTABLE TREAD FRONT AXLE)
17	19H2128	2	CAP SCREW	3/8" X 3"
18	19H1733	2	CAP SCREW	3/8" X 2-1/2"
19	AR51584	2	TIE ROD ASSEMBLY	(SUB FOR AR27350)
20	R47765	1	STEERING ARM	R.H. (SUB FOR R27806)
20	R47766	1	STEERING ARM	L.H. (SUB FOR R27807)
21	B3310R	2	WASHER	(USE WITH AR28050 OR AR28817)
21	R20135	2	Washer	(USE WITH AR50984, AR50981 OR AR55180)
22	12H236	2	Lock Washer	3/4", (USE WITH AR28050 OR AR28817)
23	19H1798	2	Cap Screw	3/4" X 1-3/4", (USE WITH AR28050 OR AR28817)
23	19H1890	2	Cap Screw	(A) 5/8" X 2-3/4", (USE WITH AR50984, AR50981 OR AR55180)

ADJUSTABLE FRONT AXLE STEERING ARMS AND TIE RODS [02J14]

Нет текстового описания
