Открытый узел

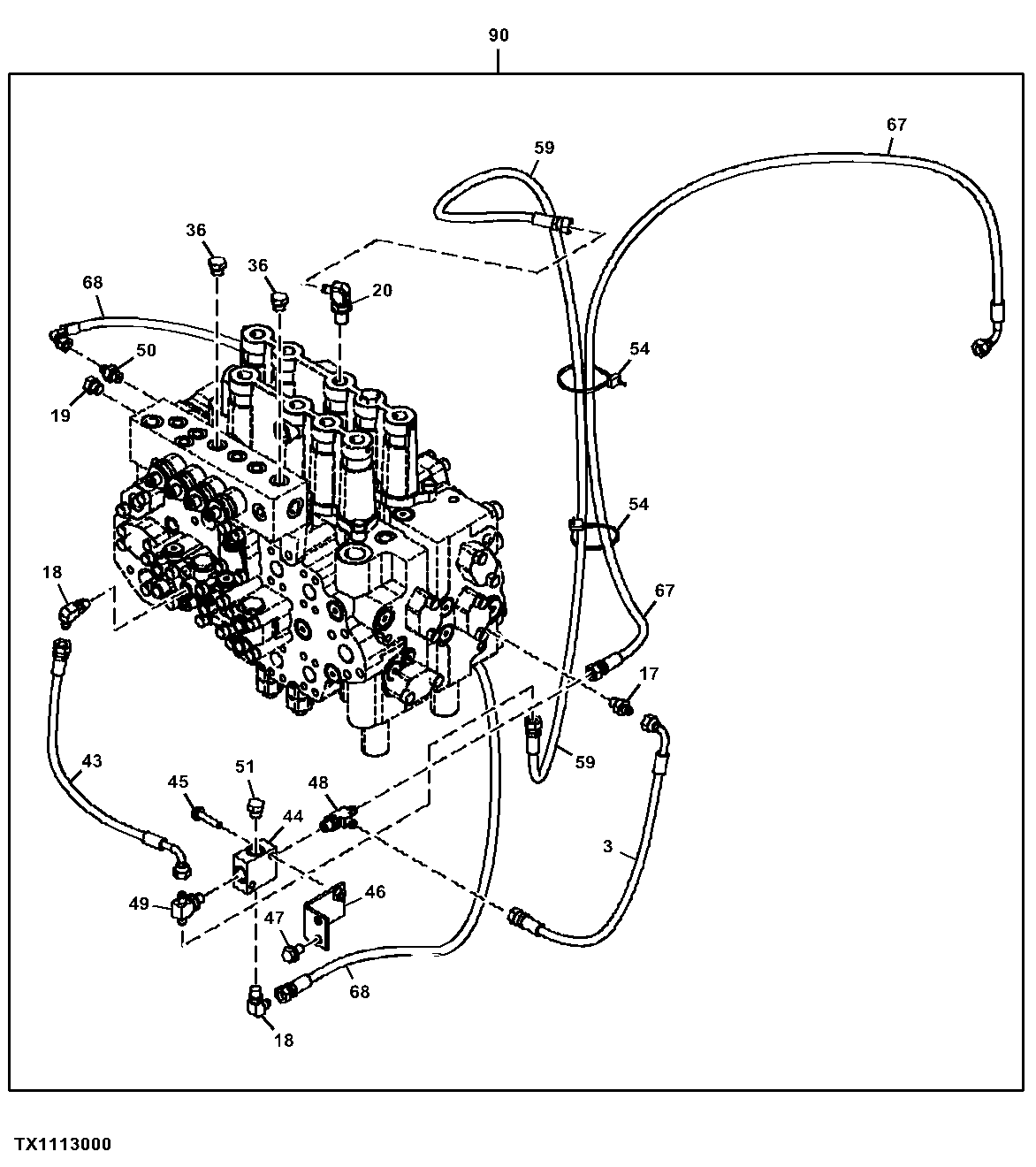

Pilot Lines Flow Rate Selector, 1 of 3

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
3	4387624	1	Hydraulic Hose	SUB FOR 4217317-S
17	A852122	1	Adapter Fitting	SUB FOR 957366, INCLUDES M800650
17	M800650	1	Packing	-
18	4154670	2	Elbow Fitting	SUB FOR A852322, INCLUDES M800650
18	M800650	2	Packing	SUB FOR 957366
19	A885002	1	Plug	INCLUDES M800650
19	M800650	1	Packing	SUB FOR 957366
20	4351281	1	Fitting	INCLUDES CH11570
20	CH11570	1	O-Ring	SUB FOR 4509180
36	A885002	2	Plug	INCLUDES M800650
36	M800650	1	Packing	SUB FOR 957366
43	4655448	1	Hydraulic Hose	SUB FOR 4313240
44	4411001	1	Flow Control Hyd. Valve	-
45	-	2	Part 14	J260845 NLA
45	19M8359	2	Cap Screw	M8 X 45, SUB FOR J900845
45	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
46	9764485	1	Bracket	-
47	-	2	Part 18	J271035 NLA
47	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
47	19M7550	2	Cap Screw	M10 X 35, SUB FOR J901035
48	A852422	1	Tee Fitting	INCLUDES M800650
48	M800650	1	Packing	SUB FOR 957366
49	A852522	1	Tee Fitting	INCLUDES M800650
49	M800650	1	Packing	-
50	A852122	1	Adapter Fitting	INCLUDES M800650
50	M800650	1	Packing	SUB FOR 957366
51	A885002	1	Plug	INCLUDES M800650
51	M800650	1	Packing	SUB FOR 957366
54	4055312	2	Clip	-
59	4648456	1	Hydraulic Hose	-
67	-	1	Part 31	9265190 NLA
67	4648455	1	Hydraulic Hose	-
67	4327315	1	Hose Guard	4327293 NLA
68	4648457	1	Hydraulic Hose	-
90	AT327836	1	Field Installation Kit	Whole Goods Two Pump Combined Flow Kit Additional Components On Separate Page

Pilot Lines Flow Rate Selector, 1 of 3
