Открытый узел

Labels and Decals (French and Spanish)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

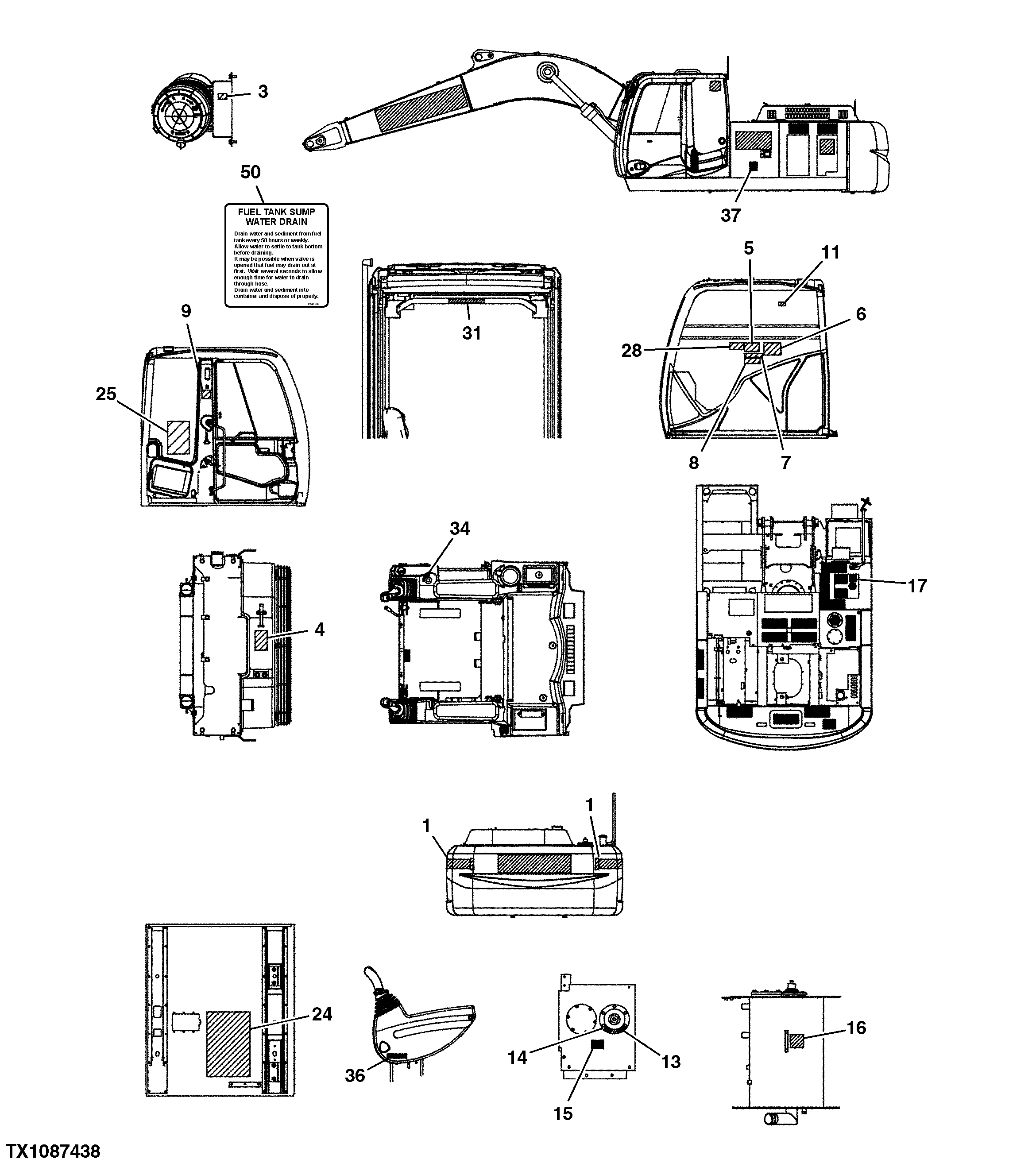

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T238191	2	Label	Spanish Warning - Stay Clear
1	T238194	2	Label	French Warning - Stay Clear
3	-	1	Part 4	Spanish Air Cleaner, T222758 NLA, ORDER T302226
3	T302226	1	Safety Sign	Air Cleaner No Text, SUB FOR T222757 AND T222758
3	-	1	Part 3	French Air Cleaner, T222757 NLA, ORDER T302226
4	T187758	1	Label	French Warning - Fan Guard
4	T187759	1	Label	Spanish Warning - Fan Guard
5	T222831	1	Label	French Electric Danger
5	T222832	1	Label	Spanish Electric Danger
6	T248564	1	Label	French Caution
6	T248566	1	Label	Spanish Caution
7	T222825	1	Label	Spanish Warning - Avoid Crushing
7	T222823	1	Label	French Warning - Avoid Crushing
8	T201548	1	Label	French Pilot Control
8	T201547	1	Label	Spanish Pilot Control
9	T387695X28	1	Label	French Secondary Exit, SUB FOR T222927
9	T387695X63	1	Label	Spanish Secondary Exit, SUB FOR T222928
11	T190799	1	Safety Sign	French Front Window
11	T190803	1	Label	Spanish Front Window
13	T223028	1	Label	French Pressure Cap
13	T223029	1	Label	Spanish Pressure Cap
14	T222806	1	Label	Spanish Hydraulic Pump Damage
14	T222805	1	Label	French Hydraulic Pump Damage
15	T235837	1	Label	French Hydraulic Oil Only
15	T235838	1	Label	Spanish Hydraulic Oil Only
16	T222777	1	Label	French Hydraulic Oil Level
16	T222778	1	Label	Spanish Hydraulic Oil Level
17	T248473	1	Label	French Ultra Low Sulfur Fuel Only
17	T248475	1	Label	Spanish Ultra Low Sulfur Fuel Only
24	T393191X28	1	Label	French Periodic Maintenance, SUB FOR T248499
24	T393191X63	1	Label	Spanish Periodic Maintenance, SUB FOR T248501
25	T248513	1	Label	French Lift Chart
25	T248515	1	Label	Spanish Lift Chart
28	T248549	1	Label	French Engine Operation
28	T248551	1	Label	Spanish Engine Operation
31	T223133	1	Safety Sign	French Caution - Handle
31	T223124	1	Safety Sign	Spanish Caution - Handle
34	T222837	1	Label	French Key Switch
34	T222838	1	Label	Spanish Key Switch
36	T222833	1	Label	French Hydraulic Lockout
36	T222834	1	Label	Spanish Hydraulic Lockout
37	T222746	1	Label	French Warning - Tip Over
37	T222747	1	Label	Spanish Warning - Tip Over
50	T247869	1	Label	French Water Drain
50	T247870	1	Label	Spanish Water Drain
