97T3 Sulfur Compatibility Solution

97T3 Sulfur Compatibility Solution

97T3 Sulfur Compatibility Solution

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

97T3 Sulfur Compatibility Solution

Нет текстового описания

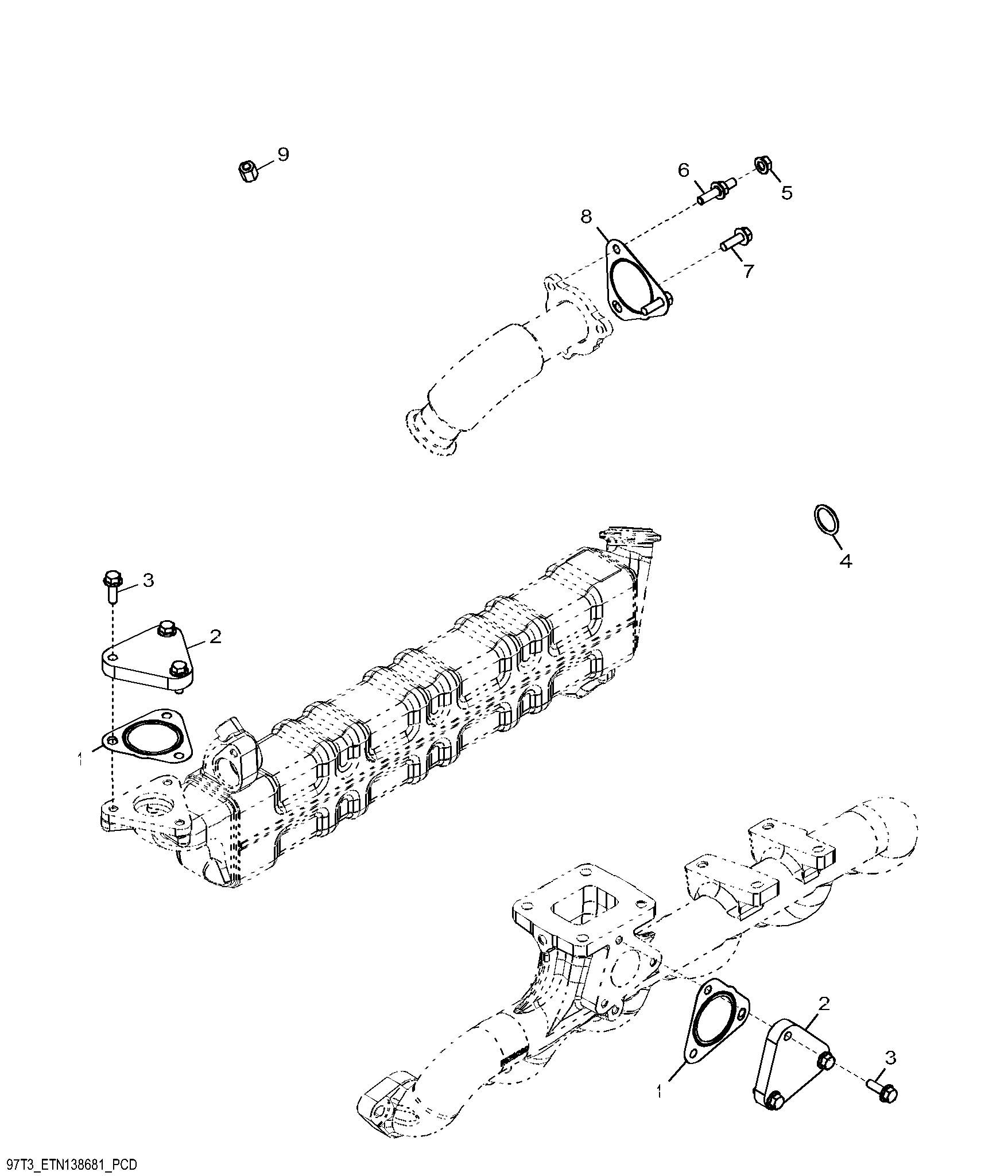

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R526831	2	Gasket	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
2	DZ100050	2	Exhaust Cap	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
3	R542509	6	Cap Screw	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
4	R532304	1	O-Ring	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
5	14M7298	1	Flange Nut	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section) M8
6	R529573	1	Stud	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
7	19M7867	2	Screw	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section) M8 X 25
8	DZ101875	1	Gasket	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
9	DZ101874	1	Fitting	(For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
10	RE567686	1	Envelope	(Not Illustrated)
11	38H1414	1	Fitting	(Not Illustrated) (For Additional Parts, Refer to Appropriate Vehicle Catalog Section)
