Batteries, Support and Cables (Engine 6068HT082-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4190277	1	Clamp	-
2	AT131725	1	Clip	SUB FOR 4190291
3	R50454	1	Clamp	SUB FOR 4192034
4	R134002	1	Clamp	SUB FOR 4193816
5	4255762	1	Relay	Battery, SUB FOR 8943795431
6	4397839	1	Ground Cable	SUB FOR 4392330
7	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
8	24M7055	5	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
9	24M7028	1	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
10	AT322385	1	Wiring Harness	Starter Jumper Harness
11	AT375832	1	Wiring Harness	Starter Protection
12	TY23020	2	Dry Charged Battery	SUB FOR DH100015
13	DH400240	5	Tie Band	-
14	DH400410	1	Battery Cable	-
15	24M7346	11	Washer	11 X 20 X 2 mm, SUB FOR DH400703
16	DH400866	4	Bolt	-
17	DH400872	1	Cable	-
18	FF100273	2	Bracket	-
19	FF100290	4	Spacer	-
20	FF101678	1	Battery Cable	-
21	FF101679	2	Cover	-
22	FF510981	1	Cover	-
23	FF104372	1	Battery Cable	-
24	19M7560	2	Cap Screw	M6 X 16, SUB FOR J900616
25	19M7162	3	Cap Screw	M8 X 16, SUB FOR J900816
26	19M7288	2	Cap Screw	M8 X 30, SUB FOR J900830
27	19M7938	3	Cap Screw	M10 X 20, SUB FOR J901020
28	19M7662	1	Cap Screw	M10 X 30, SUB FOR J901030
29	14M7274	9	Nut	M10, SUB FOR J950010
30	14M7025	4	Wing Nut	M10, SUB FOR M570010
31	R205544	1	Grommet	-
32	AT145341	1	Relay	Starter

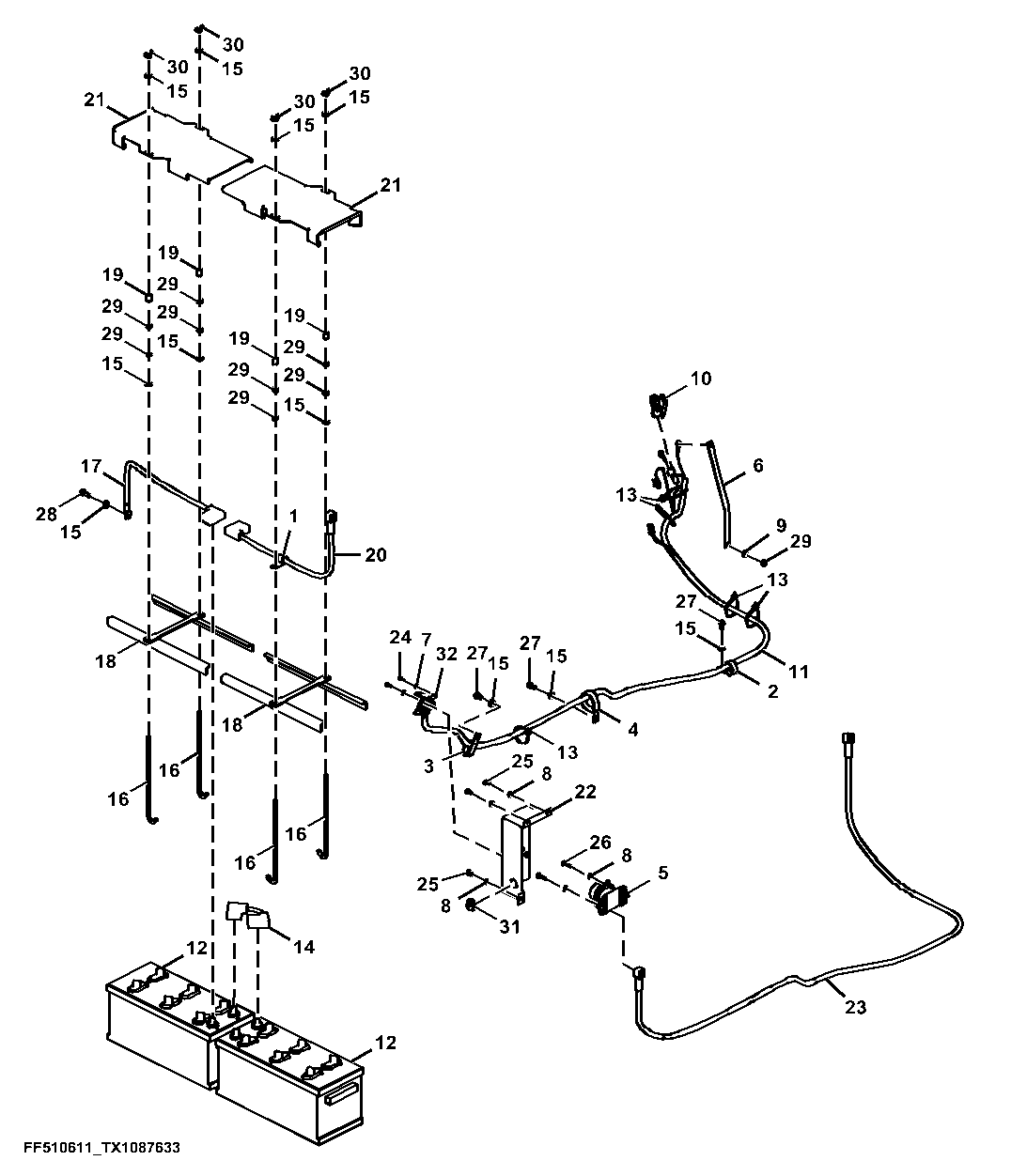

Batteries, Support and Cables (Engine 6068HT082-)
