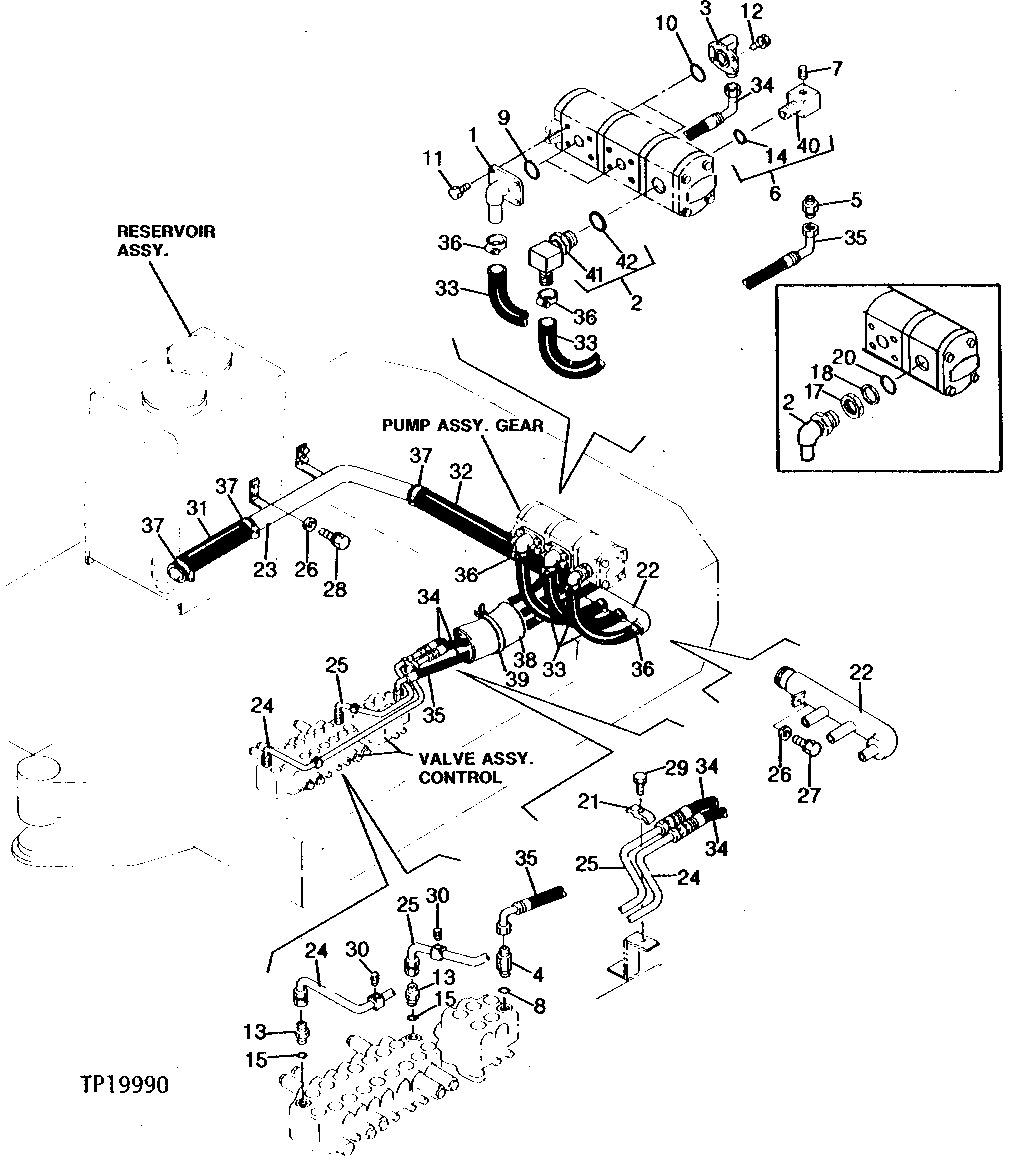

HYDRAULIC SYSTEM VALVE LINES AND HOSES [G16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T110287	2	FLANGE	-
2	AT110070	1	FITTING	-
2	AT111533	1	FITTING	-
3	T111092	2	FLANGE	-
4	T111097	1	ADAPTER FITTING	-
5	4154653	1	ADAPTER FITTING	(SUB FOR T110871) (SUB FOR TH100989)
6	AT111511	1	FITTING	-
7	T110873	1	PLUG	-
8	CH11570	1	O-Ring	-
9	CH11566	2	O-Ring	-
10	CH11566	2	O-Ring	-
11	12M7066	8	Lock Washer	10 MM
11	19M7166	8	Cap Screw	M10 X 20
12	12M7066	8	Lock Washer	10 MM
12	19M7166	8	Cap Screw	M10 X 20
13	T110589	2	FITTING	-
14	T110590	1	Packing	-
15	T110590	2	Packing	-
17	T110597	1	NUT	-
18	T110598	1	BACK-UP RING	-
20	T118681	1	O-Ring	(SUB FOR T110604)
21	T110033	1	RETAINER	-
22	AT110073	1	TUBE	-
23	AT110074	1	TUBE	-
24	AT110446	1	OIL LINE	-
25	AT110447	1	OIL LINE	-
26	24M7028	5	Washer	10.500 X 20 X 2 MM
27	12M7066	1	Lock Washer	10 MM
27	19M7402	1	Cap Screw	M10 X 25
28	12M7066	4	Lock Washer	10 MM
28	19M7402	4	Cap Screw	M10 X 25
29	12M7006	1	Lock Washer	6 MM
29	19M7167	1	Cap Screw	M10 X 25
30	T110873	2	PLUG	-
31	T110185	1	HYDRAULIC HOSE	-
32	T110186	1	HYDRAULIC HOSE	-
33	T110187	3	HYDRAULIC HOSE - FABRICATE	-
34	T111102	2	HYDRAULIC HOSE - FABRICATE	-
35	T111103	1	HYDRAULIC HOSE - FABRICATE	-
36	TY22467	6	Clamp	(SUB FOR T110428 OR AT145650)
37	TY22472	4	Clamp	(SUB FOR AT145651 OR AR21999)
38	T111651	1	BUSHING	-
39	T110612	1	TIE BAND	-
40	-	1	Part 44	(SUB AT111511)
41	-	1	Part 45	(SUB AT111533)
42	T118681	1	O-Ring	(SUB FOR T110604)

HYDRAULIC SYSTEM VALVE LINES AND HOSES [G16]
