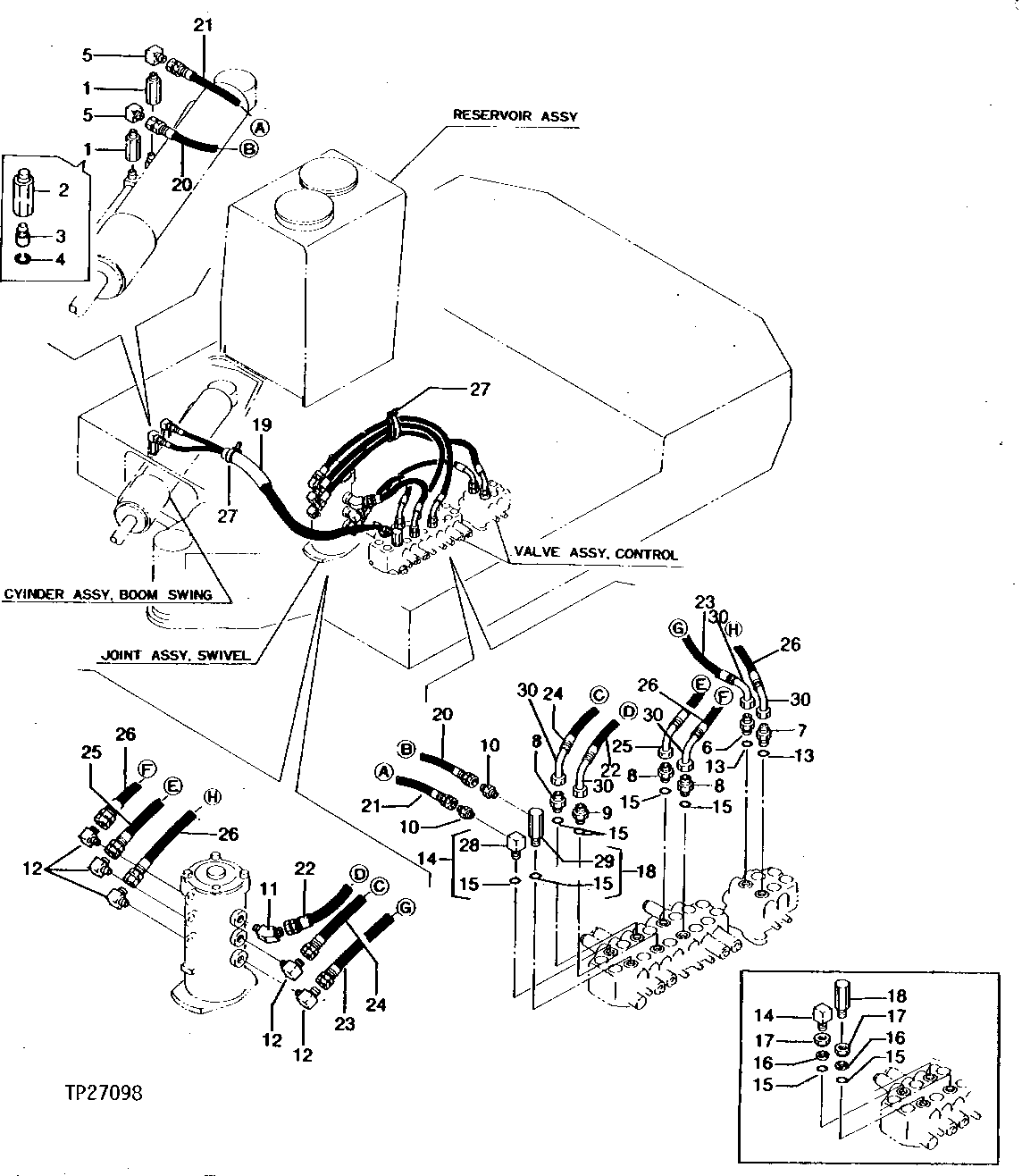

HYDRAULIC SYSTEM SWIVEL LINES AND HOSES [G20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT110156	2	FLOW CONTROL HYD. VALVE	-
2	T110290	2	FLOW CONTROL HYD. VALVE	-
3	T110291	2	SPOOL	-
4	T110414	2	RING	-
5	T111179	2	ELBOW FITTING	-
6	T111093	1	SELF-OPERATING VALVE	-
7	T110900	1	FITTING	-
8	T111096	3	ADAPTER	-
9	T110872	1	FITTING	-
10	T115957	2	ADAPTER FITTING	(SUB FOR T110867) (FOR USE WITHOUT THIRD FUNCTION VALVE)
11	T115887	1	ELBOW FITTING	(SUB FOR T110865)
12	T115889	5	ELBOW FITTING	(SUB FOR T110866)
13	CH11570	2	O-Ring	-
14	T110592	1	CONNECTOR	(FOR USE WITHOUT THIRD FUNCTION VALVE) (SUB AT111535)
14	AT111535	1	FITTING	-
15	T110593	6	Packing	-
16	T110594	2	BACK-UP RING	(FOR USE WITHOUT THIRD FUNCTION VALVE) (SUB AT111535 OR AT111536)
17	T110595	2	NUT	(FOR USE WITHOUT THIRD FUNCTION VALVE) (SUB AT111535 OR AT111536)
18	T110616	1	ELECTRICAL CONNECTOR ASSY	(FOR USE WITHOUT THIRD FUNCTION VALVE) (SUB AT111536)
18	AT111536	1	FITTING	-
19	T111014	1	HOSE	-
20	T111180	1	HYDRAULIC HOSE - FABRICATE	(FOR USE WITHOUT THIRD FUNCTION VALVE) SWING
21	4283567	1	HYDRAULIC HOSE	(SUB FOR T111181, AT66084) (FOR USE WITHOUT THIRD FUNCTION VALVE) SWING
22	AR50603	1	Hydraulic Hose	LEFT PROPEL (SUB FOR T111110, ALONG WITH AE24616)
23	AR98204	1	Hydraulic Hose	(SUB FOR T111111, ALONG WITH AE24616)
24	AR98204	1	Hydraulic Hose	LEFT PROPEL (SUB FOR T111111, ALONG WITH AE24616)
25	T111112	1	Hydraulic Hose	RIGHT PROPEL
26	AT67064	2	Hydraulic Hose	(RIGHT PROPEL) (SUB FOR T111113, ALONG WITH AE24616)
27	T110612	2	TIE BAND	-
28	-	1	Part 30	(SUB AT111535)
29	-	1	Part 31	(SUB AT111536)
30	AE24616	5	Elbow Fitting	-

HYDRAULIC SYSTEM SWIVEL LINES AND HOSES [G20]
