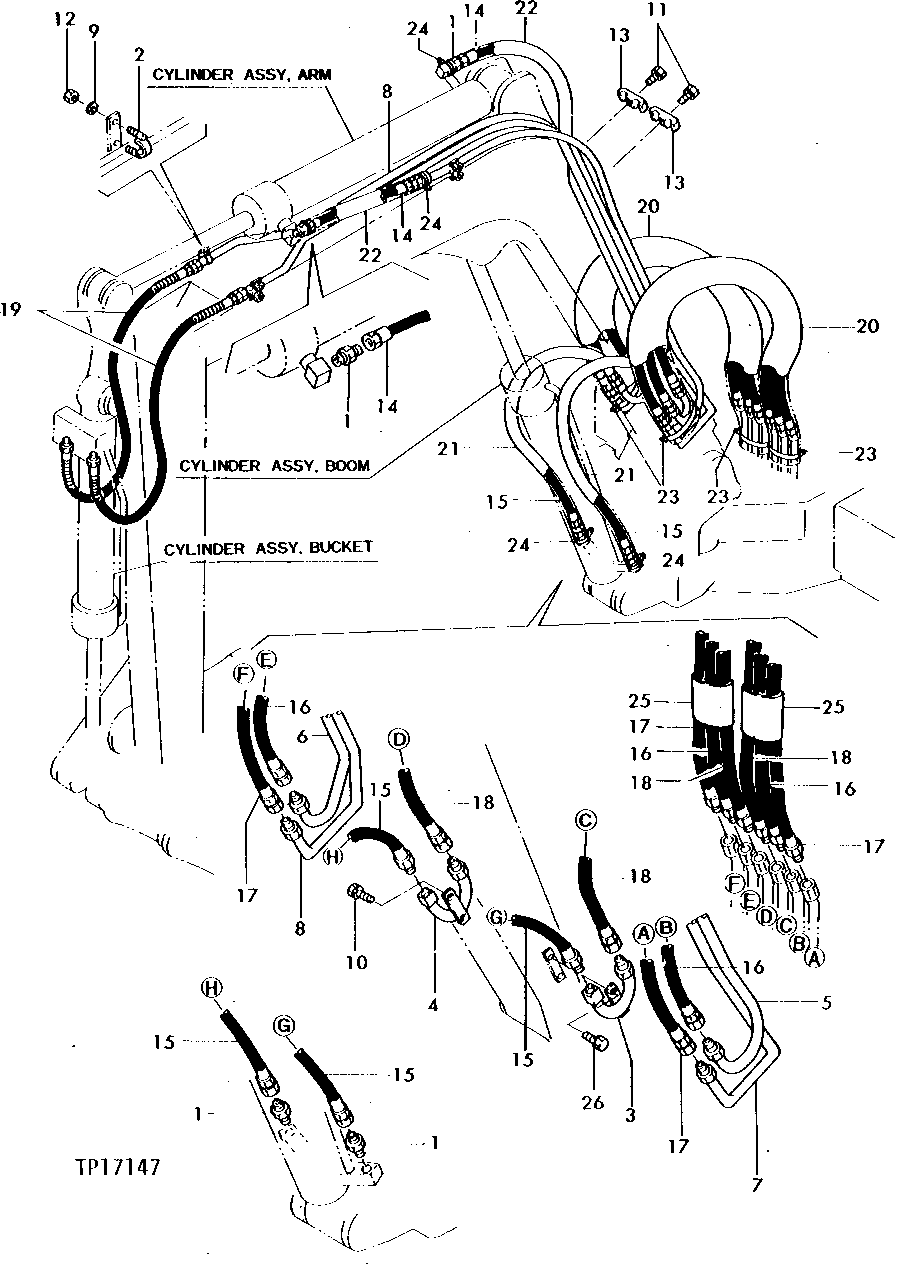

HYDRAULIC SYSTEM BOOM LINES AND HOSES [H01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T115957	4	ADAPTER FITTING	(SUB FOR T110867)
2	T110034	3	RETAINER	-
3	T111652	1	OIL LINE	BOOM
4	AT110455	1	OIL LINE	BOOM
5	AT111516	1	OIL LINE	(SUB FOR AT110456) ARM
6	AT110457	1	OIL LINE	ARM
7	AT111517	1	OIL LINE	(SUB FOR AT110458) BUCKET
8	AT110459	1	OIL LINE	BUCKET
9	12M7056	6	Lock Washer	8 MM, (SUB FOR 12M7065)
10	19M8324	2	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
10	24M7296	2	Washer	10.500 X 30 X 2.500 MM, (SUB FOR T110607)
11	M800452	4	SCREW WITH WASHER	-
12	14M7273	6	Nut	M8
13	T110599	4	CLAMP	-
14	T111104	2	HYDRAULIC HOSE - FABRICATE	ARM
15	T111105	2	HYDRAULIC HOSE - FABRICATE	BOOM
16	T111106	2	HYDRAULIC HOSE - FABRICATE	ARM
17	T111106	2	HYDRAULIC HOSE - FABRICATE	BUCKET
18	T111106	2	HYDRAULIC HOSE - FABRICATE	BOOM
19	T111107	2	HYDRAULIC HOSE - FABRICATE	BUCKET
20	T111124	2	SLEEVE	(FOR USE WITH CANOPY)
21	T111125	2	SLEEVE	(FOR USE WITH CANOPY)
22	T111123	2	SLEEVE	(FOR USE WITH CANOPY)
23	T111653	4	Tie Band	(FOR USE WITH CANOPY)
24	T111126	8	Clamp	-
25	T111014	2	HOSE	-
26	12M7066	2	Lock Washer	10 MM
26	19M7166	2	Cap Screw	M10 X 20

HYDRAULIC SYSTEM BOOM LINES AND HOSES [H01]
