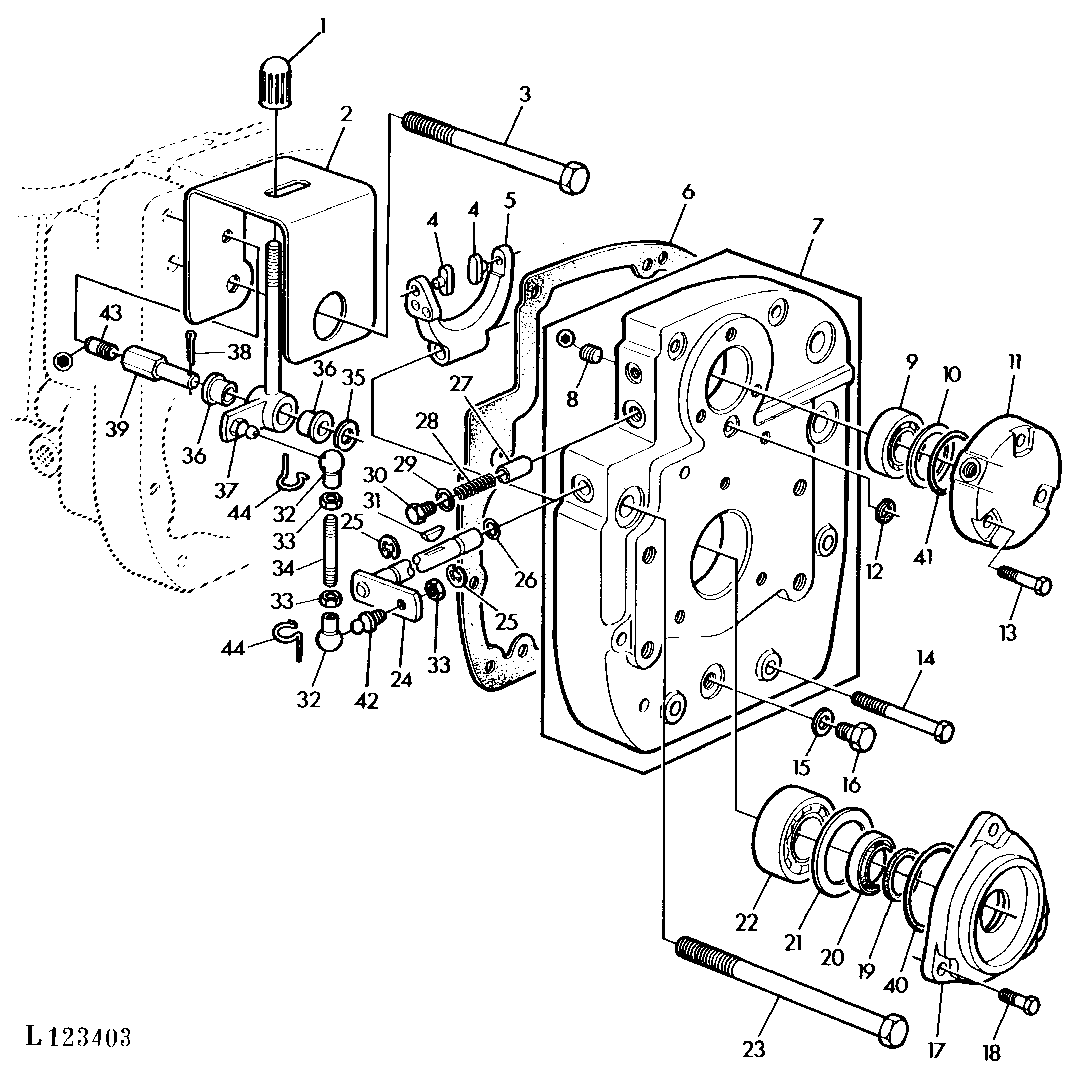

FRONT PTO/SHIFT LINKAGE AND BEARING COVER [03C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR62028	1	Knob	(SUB FOR L57987)
2	L102069	1	Guard	(SUB FOR L41437, L100268)
3	19H3307	1	Cap Screw	3/4"X6"
4	T21841	2	Shoe	-
5	L41430	1	Shifter	-
6	L62428	1	Gasket	(SUB FOR L41433)
7	AL39725	1	Cover	(MARKED L41450) (ORD AL78370)
7	AL78370	1	Cover	(MARKED L79194) (SUB FOR AL39725)
8	U40054	1	Pipe Plug	(SUB FOR T35599 APPL)
9	JD10137	1	ROLLER BEARING	-
10	24M7221	1	Shim	TK= 0,3MM (.012")
10	24M4813	1	Washer	TK= 1,0MM (.04")
10	24M7220	1	Shim	TK= 0,2MM (.008")
10	L36302	1	Shim	TK= 0,15MM (.006")
10	24M7219	1	Shim	TK= 0,1MM (.004")
11	AL39727	1	Cover	-
12	A4847R	1	Washer	-
13	19M7288	3	Cap Screw	M8X30
14	19M7385	6	Cap Screw	M10X70
15	R64857	1	Washer	-
16	R64929	1	Drain Plug	-
17	L101588	1	Bearing Housing W/O Bearing	(SUB FOR L41435)
18	19M7139	3	Cap Screw	M8X20
19	L39491	1	Washer	-
20	48M7038	1	Seal	-
21	L33247	1	Shim	TK= 0,15MM (.006")
21	L33260	1	Shim	TK= 0,5MM (.02")
21	L33252	1	Shim	TK= 0,2MM (.008")
22	JD37047	1	Tapered Roller Bearing	-
23	08H4422	3	Cap Screw	3/4"X7-1/2"
24	AL57873	1	Shifter Rod	-
25	F2863R	2	Snap Ring	-
26	L53813	1	O-Ring	-
27	L41431	1	Pin Fastener	-
28	L41432	1	Spring	-
29	R26448	1	O-Ring	-
30	R45010	1	Fitting	-
31	26H77	1	Shaft Key	-
32	56M7003	2	Ball Joint Socket	-
33	14M7273	3	Nut	M8
34	42M7057	1	Stud	-
35	24M7047	1	Washer	13X24X2,5MM
36	L30470	2	Bushing	-
37	AL39730	1	Lever	-
38	11M7059	1	Cotter Pin	3,2X20MM
39	L41438	1	Weld Stud	-
40	L33257	1	O-Ring	-
41	L41434	1	O-Ring	-
42	L57005	1	Ball Stud	-
43	22M7108	1	Set Screw	M10X35
44	56M7004	2	Ball Joint Retainer	-

FRONT PTO/SHIFT LINKAGE AND BEARING COVER [03C19]
