Открытый узел

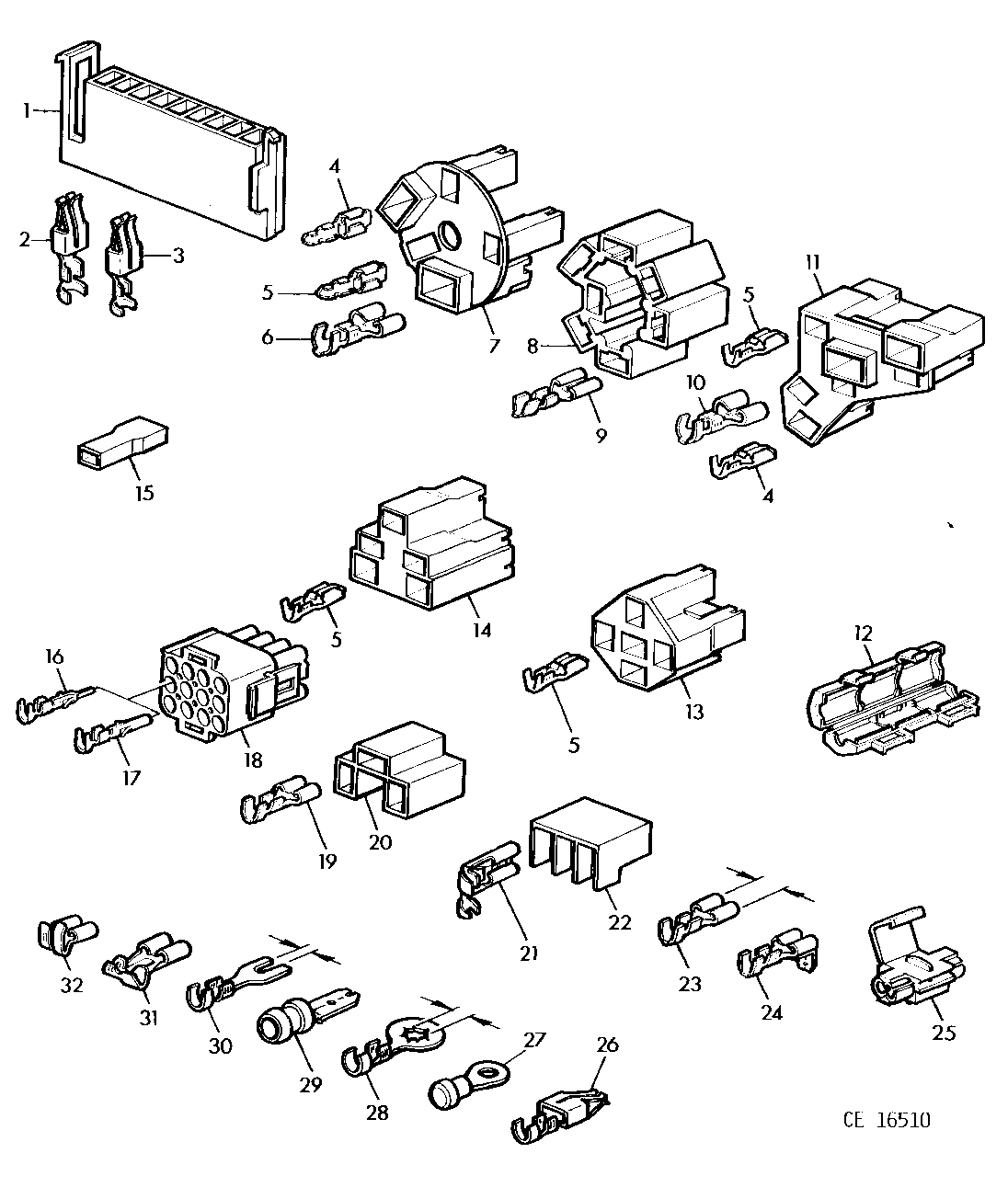

CABLE CLIPS CONNECTORS AND PLUGS [02D09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L37949	1	Elec. Connector Housing	-
2	57M7090	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG25
3	57M7100	1	Elec. Connector Terminal	(A) -1,0MM2/6,3MM PACKG25
4	57M7106	1	Elec. Connector Terminal	(A) -4,0MM2/6,3MM PACKG25
5	57M7089	1	Elec. Connector Terminal	(A) -2,0MM2/6,3MM PACKG25
6	57M7108	1	Elec. Connector Terminal	(A) -5,3MM2/9,5MM PACKG25
7	L37848	1	Elec. Connector Terminal	-
8	L36996	1	Elec. Connector Housing	-
9	57M7041	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG25
10	57M7108	1	Elec. Connector Terminal	(A) -5,3MM2/9,5MM PACKG25
10	57M7071	1	Elec. Connector Terminal	(A) -10MM2/9,5MM PACKG25
11	L37847	1	Elec. Connector Housing	-
12	L31124	1	Elec. Connector Accessory	(A) - /6,3MM
13	L35168	1	Elec. Connector Housing	PACKG 3
14	L38622	1	Elec. Connector Housing	-
15	57M7033	1	Elec. Connector Accessory	(A) - /6,3MM
15	57M7072	1	INSULATING SLEEVE	(A) - /9,5MM
16	L36682	1	PIN CONTACT	(A) -2,5MM2/2,1MM PACKG25
17	L36668	1	Electrical Conductor	(A) -2,5MM2/2,1MM PACKG25
18	L36667	1	CONNECTOR BODY,(PIN&SOCKET)	-
19	57M7038	1	Elec. Connector Terminal	(A) -1,5MM2/8,0MM PACKG25
20	57M7064	1	Elec. Connector Housing	-
21	57M7069	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG25
22	57M7062	1	Elec. Connector Housing	-
23	57M7044	1	Elec. Connector Terminal	(A) -1,0MM2/6,3MM PACKG5 \|
23	57M7045	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG25 \|
23	57M7080	1	Elec. Connector Terminal	(A) -6,0MM2/6,3MM PACKG50 \|
23	57M7098	1	Elec. Connector Terminal	(A) -5,3MM2/9,5MM PACKG25 \|
23	57M7046	1	Elec. Connector Terminal	(A) -6,0MM2/9,5MM PACKG25 \|
24	57M7070	1	Electrical Connector Assy	(A) -1,0MM2/6,3MM PACKG25 \|
25	57M7095	1	Electrical Connector Assy	(A) -1,5MM2/ - PACKG10 \|
26	57M7100	1	Elec. Connector Terminal	(A) -1,0MM2/6,3MM PACKG25 \|
26	57M7090	1	Elec. Connector Terminal	(A) -2,5MM2/6,3MM PACKG25 \|
27	57M7097	1	Elec. Connector Terminal	(A) -2,5MM2/5,3MM PACKG25 \|
28	57M7087	1	Elec. Connector Terminal	(A) -1,0MM2/8,4MM PACKG5 \|
28	57M7083	1	Elec. Connector Terminal	(A) -2,5MM2/10,5MM PACKG5 \|
29	57M7096	1	Elec. Connector Terminal	(A) -3,4MM2/6,3MM PACKG25 \|
30	57M7093	1	Elec. Connector Terminal	(A) -1,0MM2/4,0MM PACKG10 \|
31	57M7078	1	Elec. Connector Terminal	(A) -2,5MM2/8,0MM PACKG25 \|
32	57M7109	1	Elec. Connector Terminal	(A) -1,5MM2/6,3MM PACKG25 \|

CABLE CLIPS CONNECTORS AND PLUGS [02D09]

Нет текстового описания
