WINDSHIELD WIPER (SERIAL NO. 000154- ) (000154 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT202568	1	Motor	-
2	19H1227	2	Cap Screw	1/4" X 1/2"
3	24H1287	2	Washer	9/32" X 5/8" X 0.065"
4	12H302	2	Lock Washer	1/4"
5	AT202567	1	Wiper Arm	-
6	PM91-20	1	Wiper Blade	(SUB FOR AT202566)
11	AT202544	1	Lamp	-
12	AT202543	4	Screw	-
13	AT202548	4	Washer	-
14	24M7105	2	Washer	6 X 12 X 1.600 mm
14	12M7006	2	Lock Washer	6 mm
14	21M7246	2	Screw	M6 X 16
17	AT108154	1	Pump	(A)
18	T116246	1	Bracket	(A)
19	12M7006	2	Lock Washer	(A) 6 mm
21	AT302624	1	Bracket	(A)
21	AT302621	1	Washer Kit	(INCLUDES PARTS MARKED (A))
21	AT302622	2	Elec. Connector Terminal	(A)
21	AT302623	2	Elec. Connector Housing	(A)
22	AT202506	2	Switch	(DOME LIGHT AND HEATER)
23	AT202507	2	Switch	(FRONT WIPER AND 3 SPEED HEATER)
24	AT202565	1	Switch	(WINDSHIELD WASHER PUMP)
25	AT151008	1	KIT	(NOZZLE)
26	AT202570	1	Hydraulic Hose	-
28	19H1648	1	Cap Screw	3/8" X 3/4"
29	AT202558	1	Washer	-
37	AT202531	1	Wiring Harness	-
41	-	1	Part 32	-
42	21H1302	8	SCREW	1/4" X 5/8"
45	21H1295	2	Screw	0.190" X 5/8"
51	AT202497	2	Plate	-
52	M68340	2	Washer	4.940 X 11.913 X 1.219 mm (0.194" X 15/32" X 0.048")
53	12H302	8	Lock Washer	1/4"
54	24H1287	8	Washer	9/32" X 5/8" X 0.065"
55	AT202532	8	Bulb	-
56	14H605	4	Nut	0.164"
58	AT202554	4	Bolt	-
59	AT202555	4	Washer	-
60	24H1287	4	Washer	9/32" X 5/8" X 0.065"
61	RE36215	1	Plate	(SUB FOR AT115596)
62	Z45961	1	FRAME	-
71	Z45833	1	Cover	-
73	M68689	2	Nut	4.826 mm (0.190")
74	AT202564	2	Nut	-
75	19H2335	2	Cap Screw	1/4" X 2-3/4"
76	M68340	6	Washer	4.940 X 11.913 X 1.219 mm (0.194" X 15/32" X 0.048")
77	AT202498	2	Spacer	-
16A	AT202509	1	Tank	-
16B	AT108153	1	Tank	(A)
20A	AT202545	2	Screw	-
20B	19M8425	2	Cap Screw	(A) M6 X 16

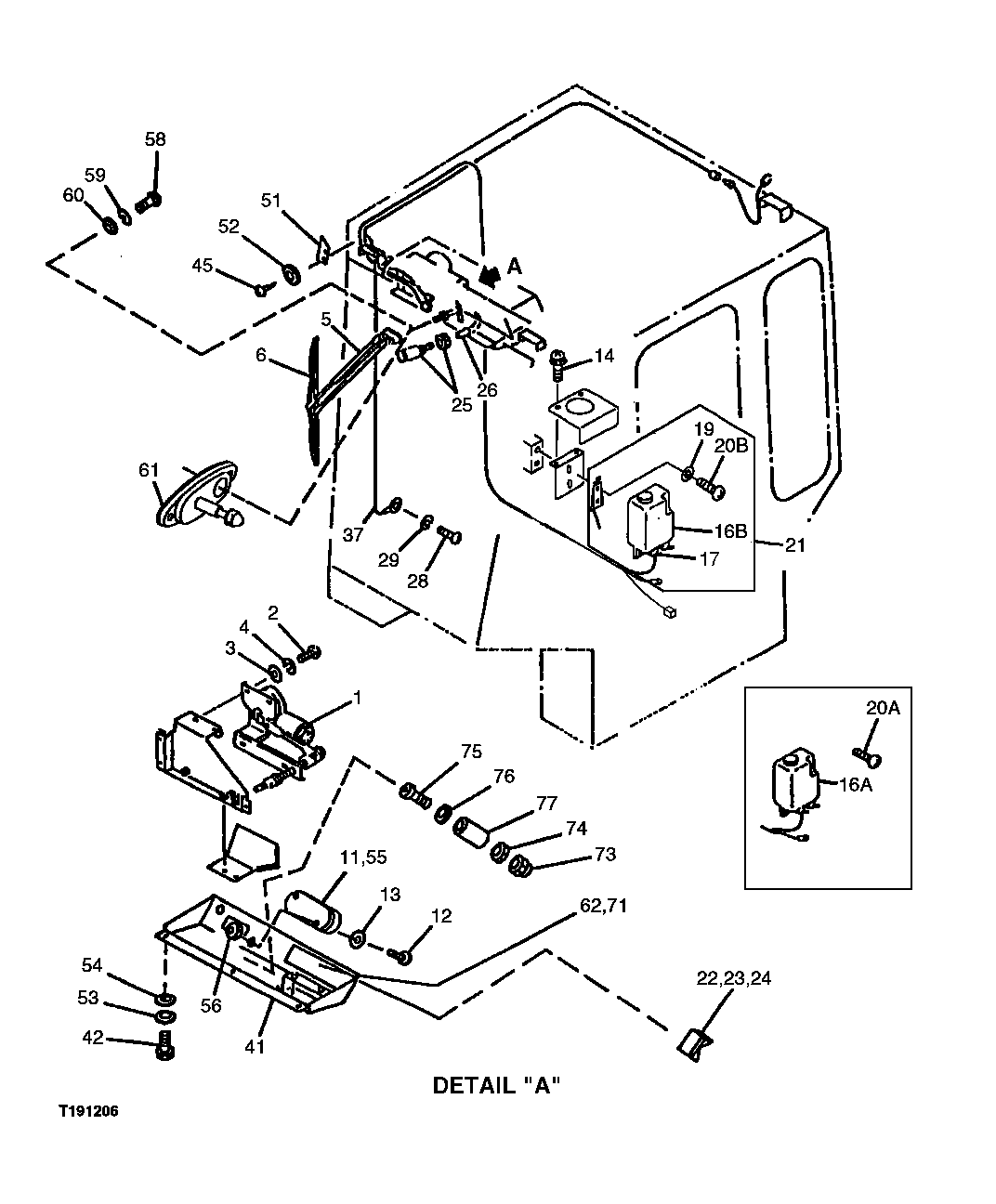

WINDSHIELD WIPER (SERIAL NO. 000154- ) (000154 - )
