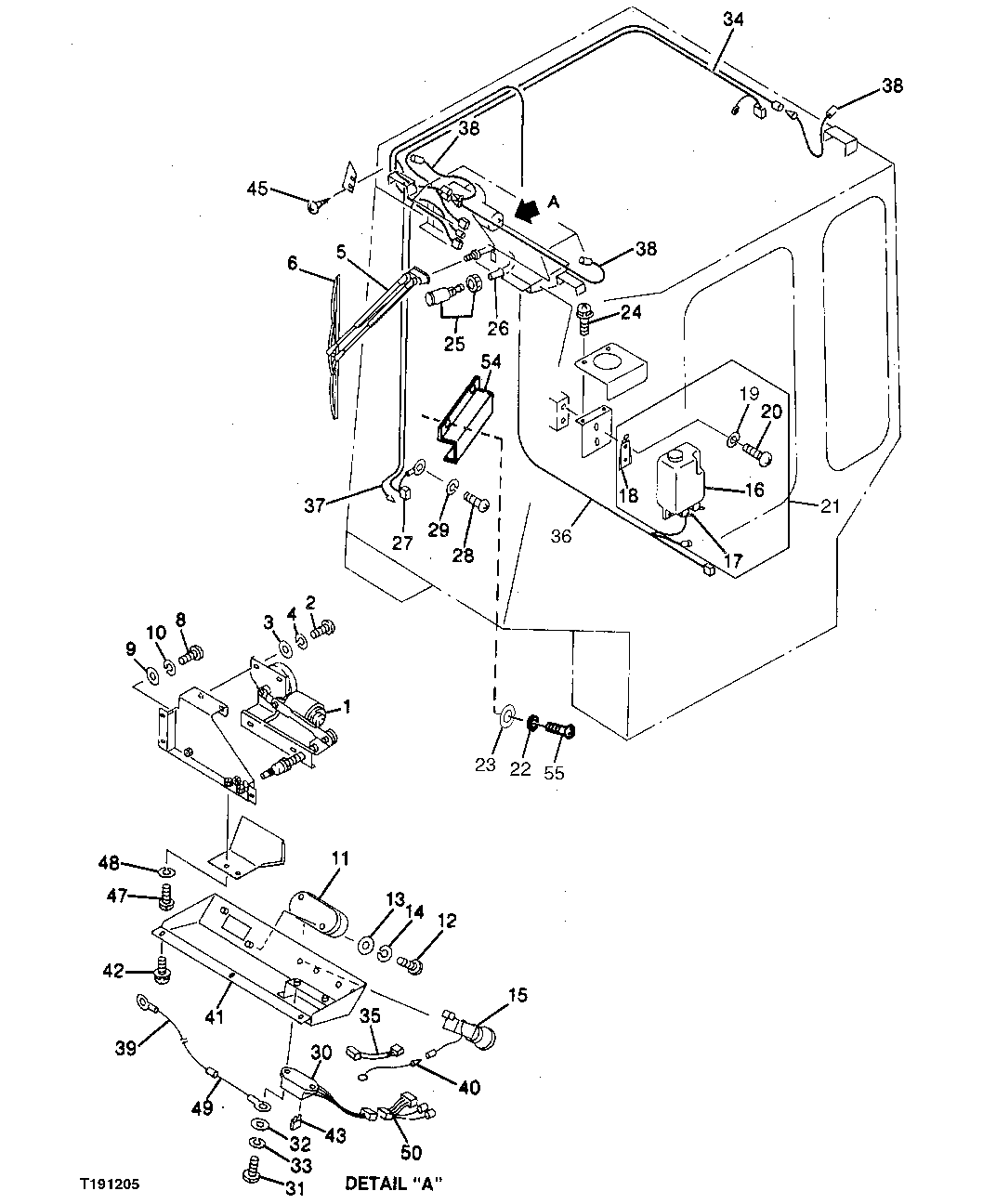

WINDSHIELD WIPER (SERIAL NO. -000153) ( - 000153)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT170076	1	Motor	-
1	AT153326	1	Wiper Motor	-
2	21M7246	4	Screw	M6 X 16
3	24M7054	4	Washer	6.400 X 12 X 1.600 mm
4	12M7006	4	Lock Washer	6 mm
5	AT121193	1	Wiper Arm	(SUB FOR AT153266)
5	AT170442	1	Wiper Arm	-
6	TY16305	1	Wiper Blade	(ALSO ORDER TY25006 AND TY16313 FOR FIRST TIME INSTALLATION), (SUB FOR AT153267)
8	21M7246	3	Screw	M6 X 16
9	24M7054	3	Washer	6.400 X 12 X 1.600 mm
10	12M7006	3	Lock Washer	6 mm
11	57M7123	1	BULB	-
12	21M7265	2	Screw	M5 X 12
13	24M7027	2	Washer	5.300 X 10 X 1 mm
14	12M7064	2	Lock Washer	5 mm
15	AT153327	1	Switch	-
16	AT108153	1	Tank	(A)
17	AT108154	1	Pump	(A)
18	T116246	1	Bracket	(A)
19	12M7006	2	Lock Washer	(A) 6 mm
20	19M8425	2	Cap Screw	(A) M6 X 16
21	AT302621	1	Washer Kit	(INCLUDES PARTS MARKED (A))
21	AT302622	2	Elec. Connector Terminal	(A)
21	AT302623	2	Elec. Connector Housing	(A)
21	AT302624	1	Bracket	(A)
22	12M7006	2	Lock Washer	6 mm
23	24M7105	2	Washer	6 X 12 X 1.600 mm
24	12M7006	2	Lock Washer	6 mm
24	21M7246	2	Screw	M6 X 16, (SUB FOR T116125, ALONG WITH 24M7105 AND 12M7006)
24	24M7105	2	Washer	6 X 12 X 1.600 mm
25	T116110	1	NOZZLE	-
26	T116359	1	Hose	-
27	AT153271	1	Wiring Harness	-
28	21M7246	1	Screw	M6 X 16
29	12M7006	1	Lock Washer	6 mm
30	AT153272	1	Wiring Harness	-
31	21M7271	2	Screw	M5 X 16
32	24M7027	2	Washer	5.300 X 10 X 1 mm
33	12M7064	2	Lock Washer	5 mm
34	AT153273	1	Wiring Harness	-
35	AT153274	1	Wiring Harness	-
36	AT153275	1	Wiring Harness	-
37	AT153276	1	Wiring Harness	-
38	AT153277	3	Wiring Harness	-
39	AT153278	1	Wiring Harness	-
40	AT153279	1	Wiring Harness	-
41	AT153280	1	Panel	-
42	21M7246	6	Screw	M6 X 16, (SUB FOR T116125, ALONG WITH 24M7105 AND 12M7006)
42	24M7105	6	Washer	6 X 12 X 1.600 mm
42	12M7006	6	Lock Washer	6 mm
43	99M7065	9	Fuse	-
45	T116079	2	Screw	-
47	21M7246	2	Screw	M6 X 16
48	12M7006	2	Lock Washer	6 mm
49	AT153283	1	Wiring Harness	-
50	AT153284	1	Wiring Harness	-
54	AT158790	1	Cover	-
55	21M7246	2	Screw	M6 X 16

WINDSHIELD WIPER (SERIAL NO. -000153) ( - 000153)
