Открытый узел

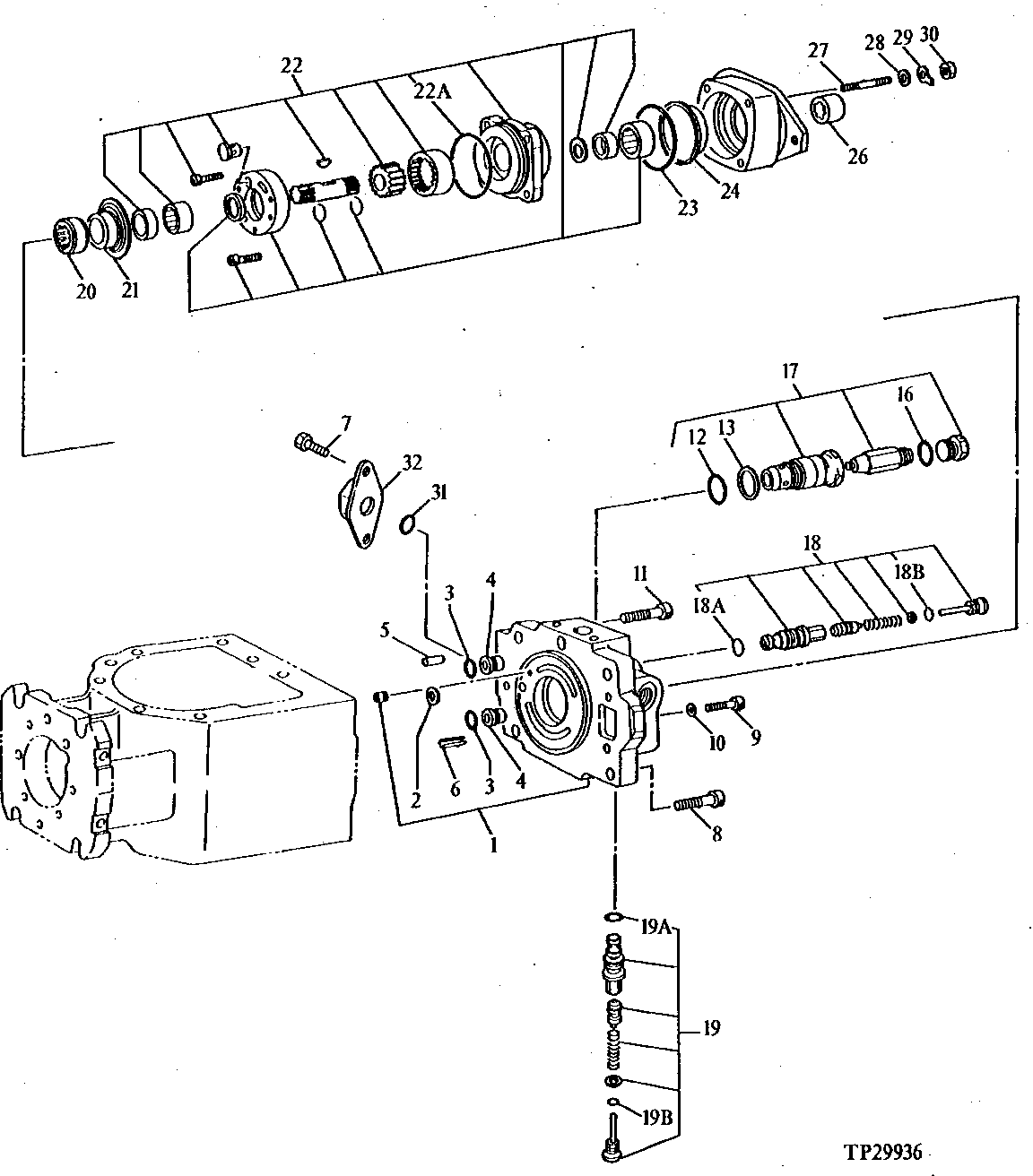

HYDROSTATIC CHARGE PUMP AND RELIEF VALVES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT108915	1	Flange	-
2	-	1	Part 2	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
3	-	2	Part 3	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
4	AT108916	2	Bushing	-
5	AT108917	1	Dowel Pin	-
6	AT108918	1	Pin	-
7	19M8446	2	Screw	M8 X 20
8	19M8448	2	Screw	M12 X 35
9	19M8735	1	Screw	M8 X 30, (SUB FOR AT136458)
10	-	1	Part 10	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
11	19M8580	2	Screw	M12 X 50
12	-	2	Part 12	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
13	-	2	Part 13	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
16	-	2	Part 14	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
17	AT108919	2	Pressure Relief Valve	350 BAR
18	AT108920	1	Pressure Relief Valve	16 BAR
19	AT108921	1	Pressure Relief Valve	32 BAR
20	AT108922	1	Splined Coupling	-
21	AT108923	1	Strainer	-
22	AT108924	1	Oil Pump	-
23	-	1	Part 25	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
24	AT108925	1	Strainer	-
26	AT108926	1	Splined Coupling	-
27	AT108927	4	Stud	-
28	AT108928	4	Washer	-
29	12M1358	4	Lock Plate	(SUB FOR AT108929)
30	14M7273	1	Nut	M8
31	-	1	Part 32	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
32	AT108931	1	Flange	-
18A	-	1	Part 17	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
18B	-	1	Part 18	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
19A	-	1	Part 20	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)
19B	-	1	Part 21	(<service-part>AT108910</service-part> SEAL KIT INCLUDES ALL (R) PARTS FOR ENTIRE PUMP)

HYDROSTATIC CHARGE PUMP AND RELIEF VALVES

Нет текстового описания
