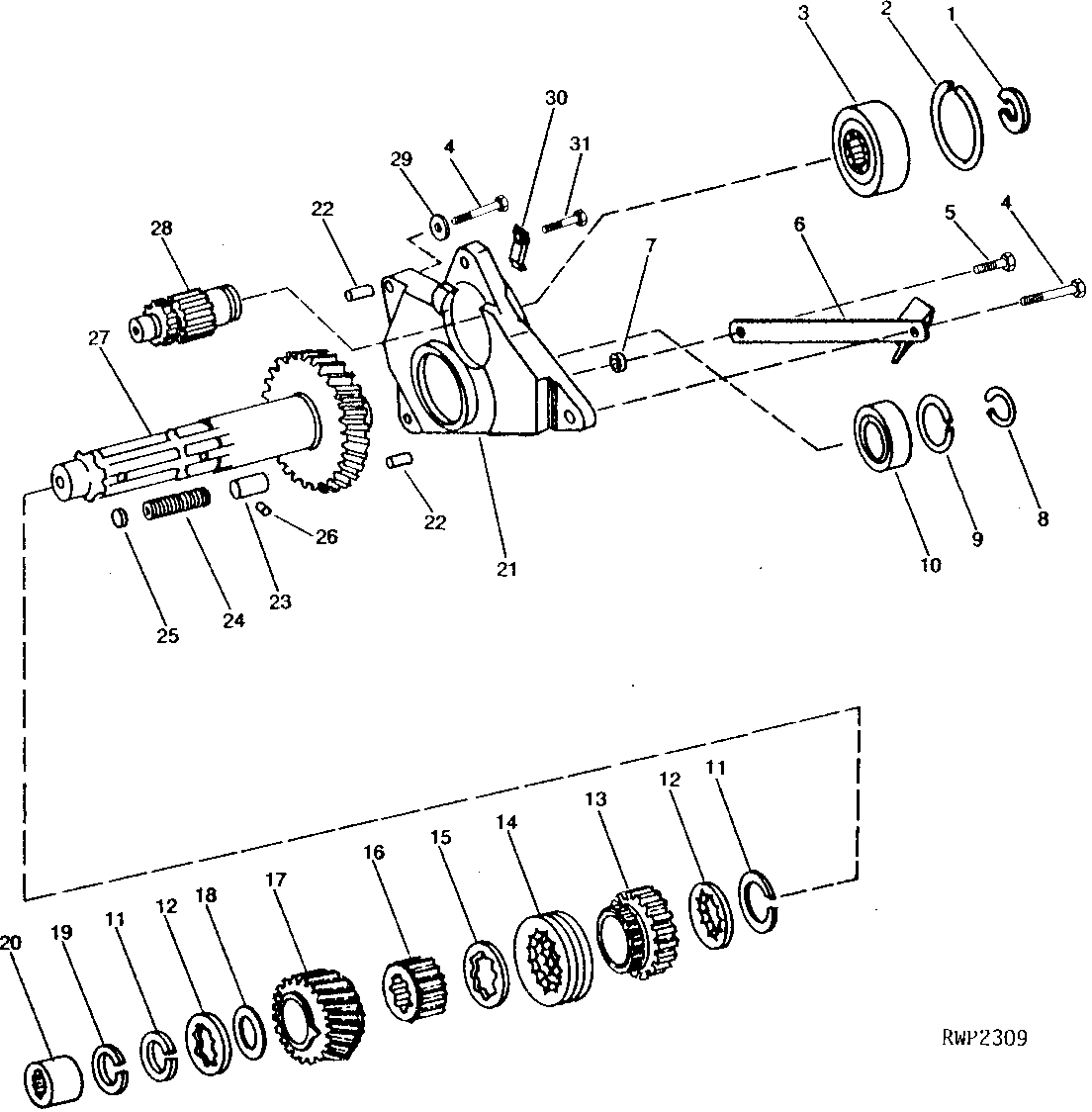

COUNTERSHAFT AND BEARING SUPPORT (HI-LO, REVERSER OR CONTINUOUS PTO) [01J16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A364R	1	Snap Ring	(HI-LO)
1	T25621	1	SNAP RING	(HI-LO)
1	A364R	1	Snap Ring	(REVERSER OR CONTINUOUS PTO)
2	T24737	1	SNAP RING	-
3	JD9361	1	BALL BEARING	(HI-LO)
3	JD7672	1	BALL BEARING	(HI-LO)
3	JD7672	1	BALL BEARING	(REVERSER OR CONTINUOUS PTO)
4	19H1801	2	CAP SCREW	3/8" X 2"
5	19H1732	1	Cap Screw	3/8" X 1-1/4"
6	AL32976	1	Retainer	-
7	28H1518	1	Washer	0.493" X 0.675" X 5/16"
8	F215R	1	RING	-
9	B190R	1	SNAP RING	-
10	JD9258	1	Ball Bearing	-
11	T19242	1	SNAP RING	-
12	T19245	1	THRUST WASHER	-
13	T21981	1	GEAR	REVERSE RANGE (NOT USED WITH REVERSER)
14	R50655	1	SHIFT COLLAR	-
15	R55721	1	THRUST WASHER	-
16	T21964	1	SLEEVE	-
17	T30065	1	GEAR	LOW RANGE
18	T69323	1	WASHER	-
19	L29048	1	SNAP RING	-
20	JD9878	1	NEEDLE BEARING	-
21	L36557	1	Bearing Housing W/O Bearing	(SUB FOR T24691)
22	T24729	2	Bushing	-
23	T21969	2	FRICTION PLUG	-
24	T24732	2	SPRING	-
25	T24521	2	DISK	-
26	T16573	1	Pin	-
27	L28671	1	COUNTERSHAFT	-
28	R67339	1	GEAR	(HI-LO)
28	R67340	1	GEAR	(HI-LO)
28	R67340	1	GEAR	(REVERSER OR CONTINUOUS PTO)
29	R1870R	1	Washer	(SUB R57696)
30	T24736	1	CLAMP	-
31	19H1732	1	Cap Screw	3/8" X 1-1/4"

COUNTERSHAFT AND BEARING SUPPORT (HI-LO, REVERSER OR CONTINUOUS PTO) [01J16]

Нет текстового описания
