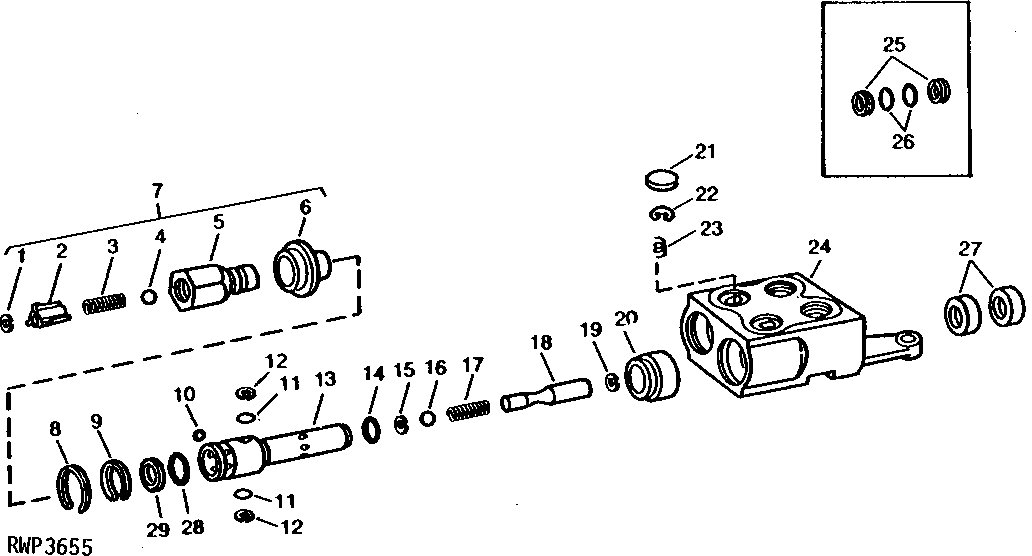

SELECTIVE CONTROL VALVE BREAKAWAY COUPLER [02E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59633	2	WEAR RING	-
2	R28085	2	GUIDE	(SUB AR93819 OR AR93820, THIS APPLICATION)
3	R28084	2	SPRING	-
4	D2361R	2	Ball	13MM (1/2")
5	R27430	1	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
5	R45630	1	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
6	R28006	2	CAP	-
7	AR30210	1	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
7	AR47643	1	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)
8	R34399	2	Snap Ring	-
9	R32356	2	SNAP RING	-
10	400R	12	Ball	6MM (1/4")
11	R65286	4	O-RING	(SUB FOR A3917R, THIS APPLICATION)
12	R26484	4	Back-Up Ring	-
13	R34397	2	SOCKET OUTLET	-
14	R375R	2	O-Ring	-
15	R26482	2	Ring	-
16	D2361R	2	Ball	13MM (1/2")
17	R28084	2	SPRING	-
18	R34400	2	PLUG	-
19	R26483	2	SNAP RING	-
20	R34398	2	SLEEVE	-
21	30H15	2	PLUG	1-1/8"
22	R72653	2	Snap Ring	(SUB FOR M2396T)
23	R31890	2	Spring	-
24	AR52621	1	COUPLING	(SINGLE) (MARKED R39109)
24	AR52622	1	COUPLING	(DUAL) (MARKED R39110) (SUB R39110, R49191, R72654, 12H10 AND 24H1286)
25	R26480	4	BACK-UP RING	(SUB R79311, THIS APPLICATION)
26	A4730R	4	O-Ring	(SUB R79311, THIS APPLICATION)
27	R79311	4	SEAL	(SUB FOR R65285 OR R74530)
28	R495R	2	O-Ring	(SUB R59343, THIS APPLICATION)
29	R26485	2	BACK-UP RING	-

SELECTIVE CONTROL VALVE BREAKAWAY COUPLER [02E14]
