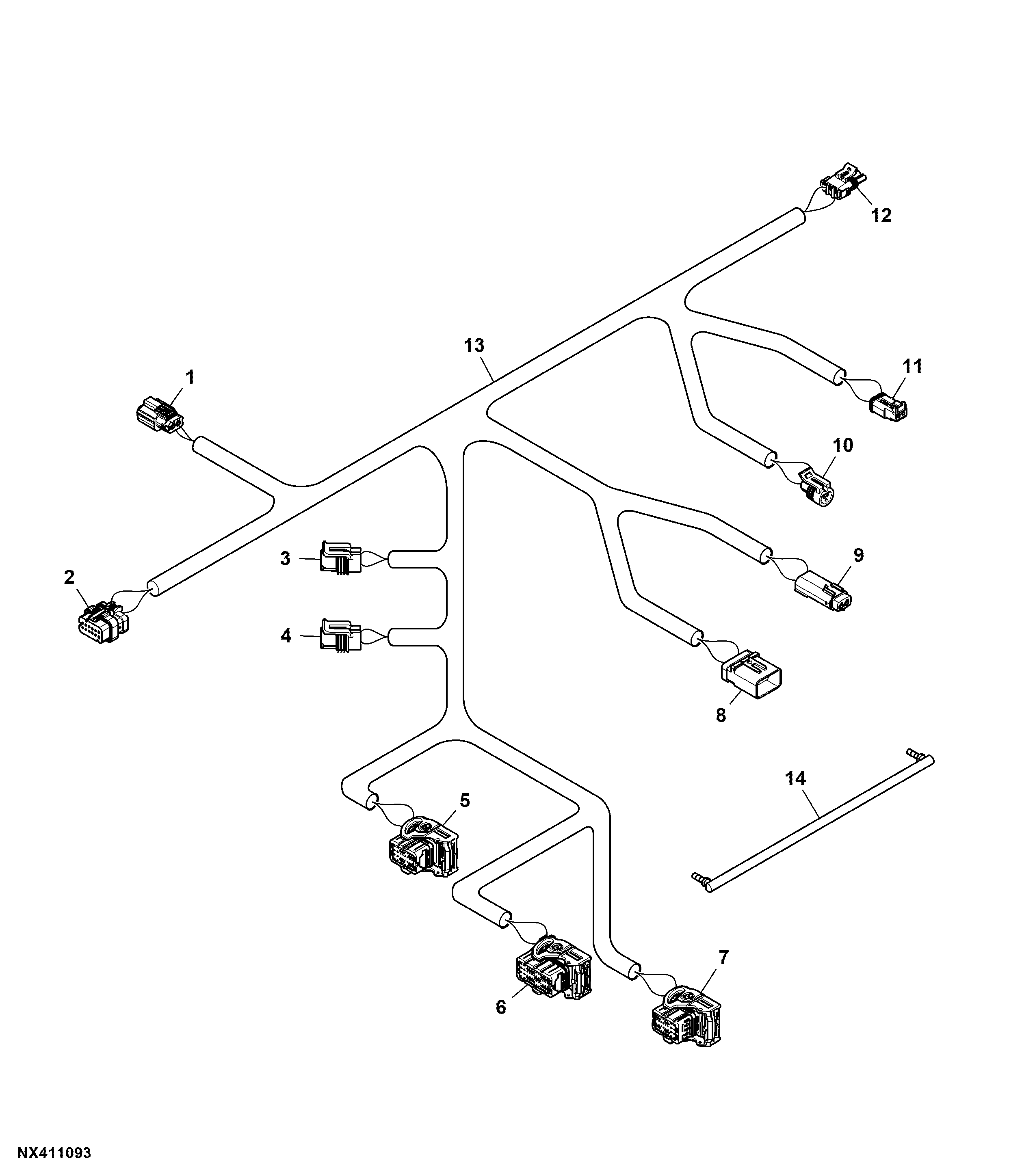

Wiring Harness, TruSet™, 5 Section

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10927	2	Elec. Connector Terminal	-
1	57M9683	1	Elec. Connector Housing	Power Extension
2	57M9800	1	Elec. Connector Housing	CAN Extension
2	57M9806	4	Elec. Connector Terminal	-
2	57M9808	4	Elec. Connector Terminal	-
2	57M9814	4	Elec. Connector Cavity Plug	-
3	57M8267	1	Elec. Connector Housing	Fuse 1
3	57M12652	1	Elec. Connector Accessory	-
3	57M8487	1	Electrical Connector Cap	-
3	R104933	2	Elec. Connector Terminal	-
4	57M12652	1	Elec. Connector Accessory	-
4	R104933	2	Elec. Connector Terminal	-
4	57M8487	1	Electrical Connector Cap	-
4	57M8267	1	Elec. Connector Housing	Fuse 2
5	57M10607	1	Elec. Connector Housing	Flex J3
5	57M10604	1	Elec. Connector Housing	-
5	57M10333	24	Elec. Connector Cavity Plug	-
5	57M10331	2	Elec. Connector Terminal	-
5	57M10334	6	Elec. Connector Cavity Plug	-
6	57M10334	3	Elec. Connector Cavity Plug	-
6	57M10331	7	Elec. Connector Terminal	-
6	57M10330	12	Elec. Connector Terminal	-
6	57M10613	1	Elec. Connector Housing	-
6	57M10614	1	Elec. Connector Housing	Flex J2
6	57M10333	26	Elec. Connector Cavity Plug	-
7	57M10609	1	Elec. Connector Housing	Flex J1
7	57M10604	1	Elec. Connector Housing	-
7	57M10333	26	Elec. Connector Cavity Plug	-
7	57M10330	1	Elec. Connector Terminal	-
7	57M10334	5	Elec. Connector Cavity Plug	-
7	57M10617	3	Elec. Connector Housing	-
8	57M9804	1	Elec. Connector Housing	CAN
8	57M9810	4	Elec. Connector Terminal	-
8	57M9812	4	Elec. Connector Terminal	-
8	57M9814	4	Elec. Connector Cavity Plug	-
9	57M9685	1	Elec. Connector Housing	Power
9	57M10669	2	Elec. Connector Terminal	-
10	57M7796	1	Elec. Connector Housing	Basket Pressure Sensor
10	L208939	1	Elec. Connector Accessory	-
10	57M10925	3	Elec. Connector Terminal	-
11	57M7534	1	Elec. Connector Housing	Basket Pressure Valve
11	57M11230	1	Elec. Connector Accessory	-
11	57M7620	1	Electrical Connector Assy	-
11	57M7546	2	Elec. Connector Terminal	-
12	RE12364	1	Electrical Connector Assy	MainFrame Sensor
12	57M7251	3	Elec. Connector Terminal	-
12	57M9219	3	Elec. Connector Seal	-
13	AKK25332	1	Wiring Harness	-
14	KK56153	1	Tie Rod Assembly	-
