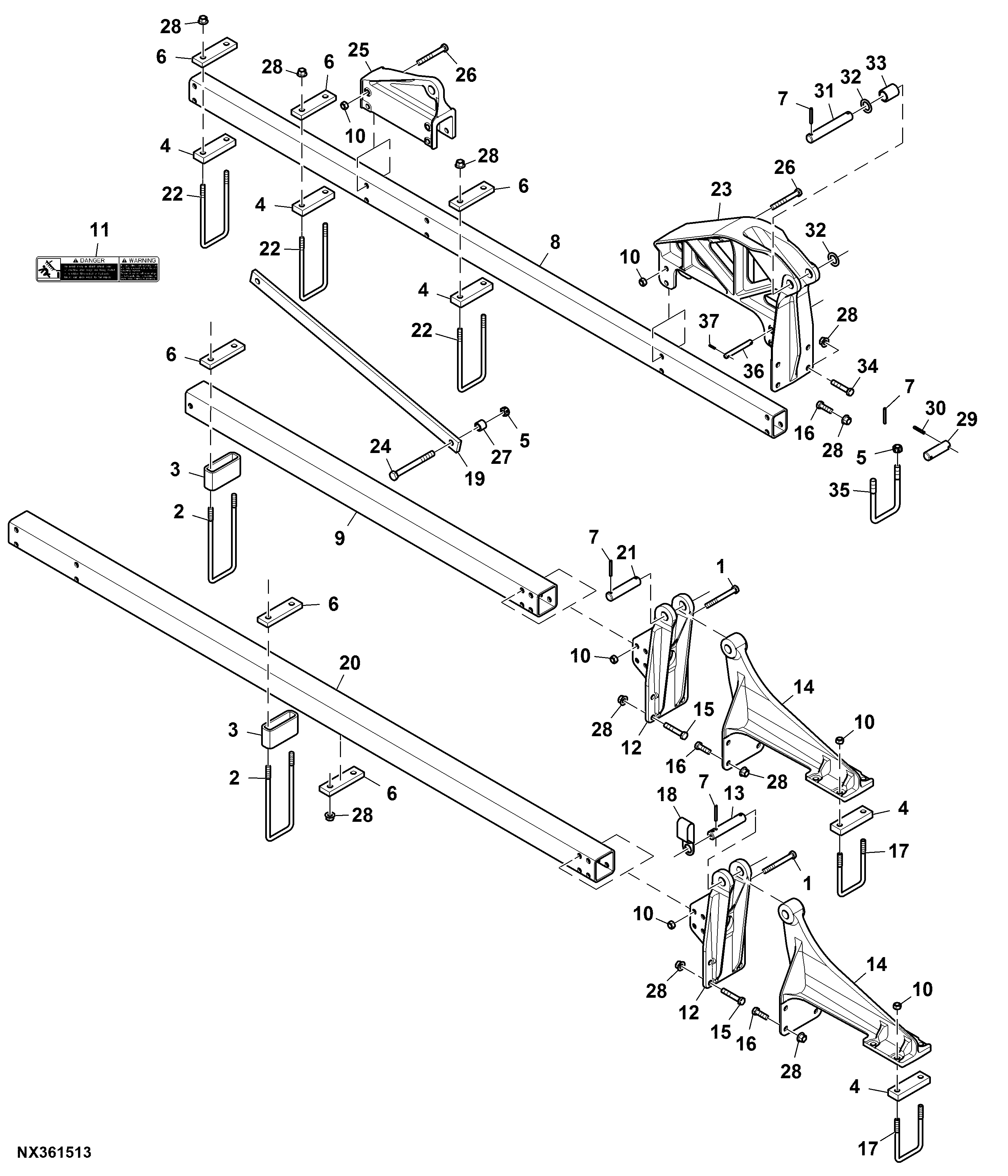

Wing Fold Hinges and Stop, Flat Fold

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3225	4	Cap Screw	3/4" X 6-1/2"
2	N237799	1	U-Bolt	-
3	N238011	1	Structural Tube	-
4	N237370	1	Strap	1st Rank Only
5	K40016	1	Lock Nut	-
6	N237371	1	Strap	-
7	W30317	2	Spring Pin	5/16" X 2-1/2"
8	KK17192	1	Structural Tube	11' Wing Frame, 3rd Rank Truss
8	AN233554	1	Structural Tube	12' Wing Frame, 3rd Rank Truss
8	AN233555	1	Structural Tube	10' Wing Frame, 3rd Rank Truss
9	N236676	1	Structural Tube	1st Rank Truss
10	K40015	1	Lock Nut	-
11	N237336	2	Sign	-
12	N236611	1	Hinge	-
13	N236966	1	Pin Fastener	-
14	N235933	1	Hinge	-
15	19H2969	4	Cap Screw	5/8" X 3-1/2"
16	19H2706	4	Cap Screw	5/8" X 2"
17	N141548	1	U-Bolt	-
18	N236813	1	Clamp	-
19	N238483	1	Strap	10' or 11' Inner Wing
19	N238461	1	Strap	12' Inner Wing
20	N236766	1	Structural Tube	10' Inner Wing, 2nd Rank Truss
20	N236701	1	Structural Tube	12' Inner Wing, 2nd Rank Truss
20	KK16412	1	Structural Tube	11' Inner Wing, 2nd Rank Truss
21	N187500	1	Pin Fastener	-
22	N236988	1	U-Bolt	5 Section
23	KK22135	1	Carrying Strap	-
23	N239459	1	Support	-
24	N237827	1	Spacer	-
24	19H3740	1	Cap Screw	3/4" X 7-1/2"
25	19H3666	1	Cap Screw	7/8" X 8"
25	N236512	1	Anchor	-
26	19H3353	6	Cap Screw	5/8" X 5"
27	N237240	1	Spacer	-
28	N169024	1	Lock Nut	-
29	N236989	1	Pin	-
30	34H334	2	Spring Pin	5/16" X 2"
31	N238376	1	Pin Fastener	-
32	24H1245	2	Washer	1-9/32" X 2" X 0.105"
33	N238490	1	Spacer	-
34	19H2641	4	Cap Screw	5/8" X 3-1/4"
35	N236901	1	U-Bolt	-
36	N198810	2	Pin Fastener	-
37	34H283	4	Spring Pin	3/16" X 1-1/8"

Wing Fold Hinges and Stop, Flat Fold
