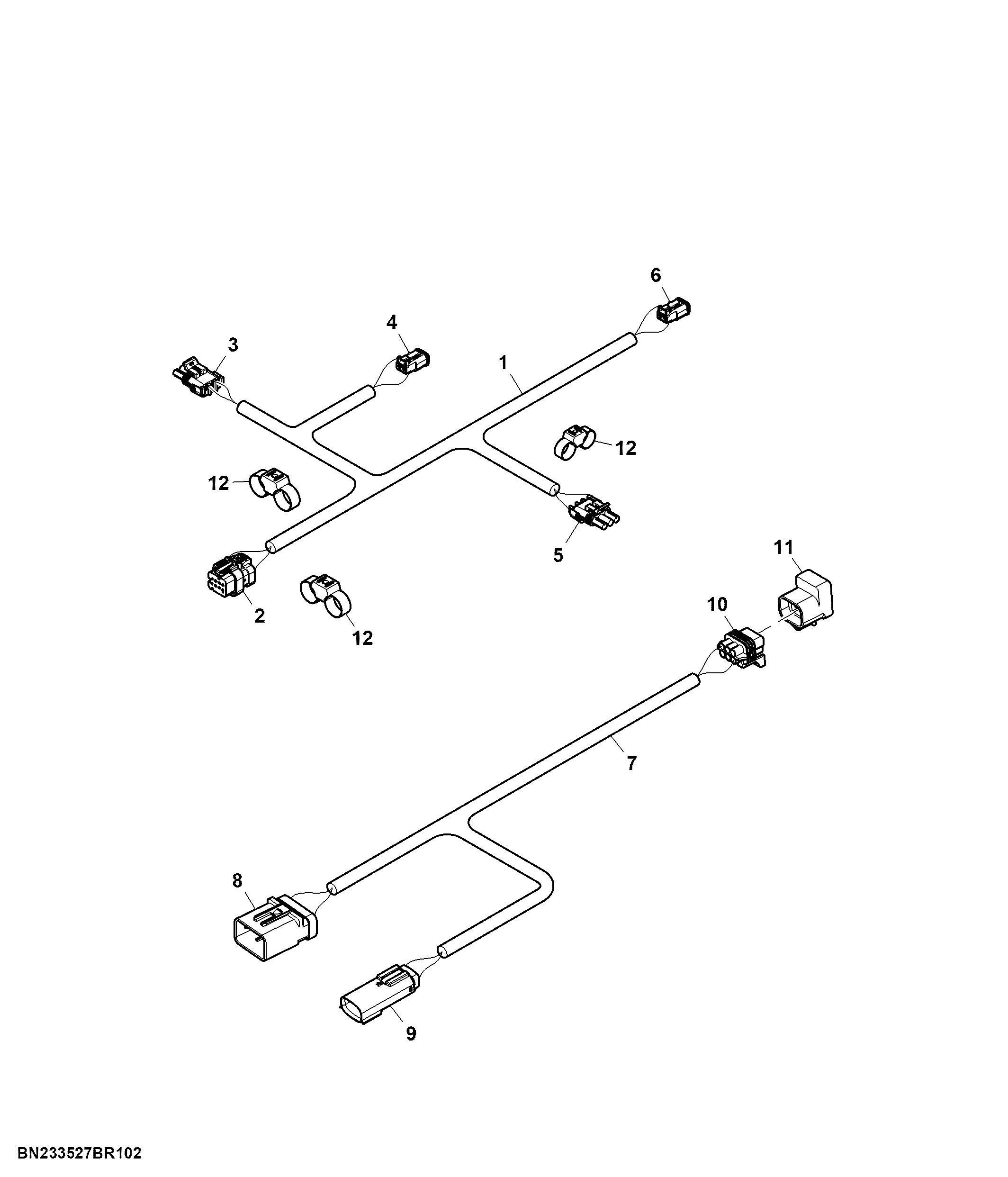

TruSet™ Wing and Main Frame Harness, 25 Row

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK45965	1	Wiring Harness	-
2	57M9792	1	Elec. Connector Housing	Inline Outer Wing
2	57M9808	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8
2	57M14601	1	Elec. Connector Accessory	-
3	RE12364	1	Electrical Connector Assy	Wing Sensor
3	57M7251	3	Elec. Connector Terminal	Cavity A, B, C
3	57M9219	3	Elec. Connector Seal	Cavity A, B, C
4	57M7534	1	Elec. Connector Housing	Wing Valve
4	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
4	57M7620	1	Electrical Connector Assy	-
4	57M12162	1	Elec. Connector Accessory	-
4	57M12163	1	Elec. Connector Accessory	-
5	57M7251	3	Elec. Connector Terminal	Cavity A, B, C
5	57M9219	3	Elec. Connector Seal	Cavity A, B, C
5	RE12364	1	Electrical Connector Assy	Outer Wing Sensor
6	57M7534	1	Elec. Connector Housing	Outer Wing Valve
6	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
6	57M7620	1	Electrical Connector Assy	-
6	57M12162	1	Elec. Connector Accessory	-
6	57M12163	1	Elec. Connector Accessory	-
7	PF81137	1	Wiring Harness	Implement Pigtail Terminator
8	57M9804	1	Elec. Connector Housing	CAN / ECU Power
9	57M9685	1	Elec. Connector Housing	Valve Power
10	57M7260	1	Elec. Connector Housing	-
10	57M7291	1	Electrical Connector Assy	-
11	RE207311	1	Electronic Control Unit	-
12	T252445	5	Clamp	-
