Открытый узел

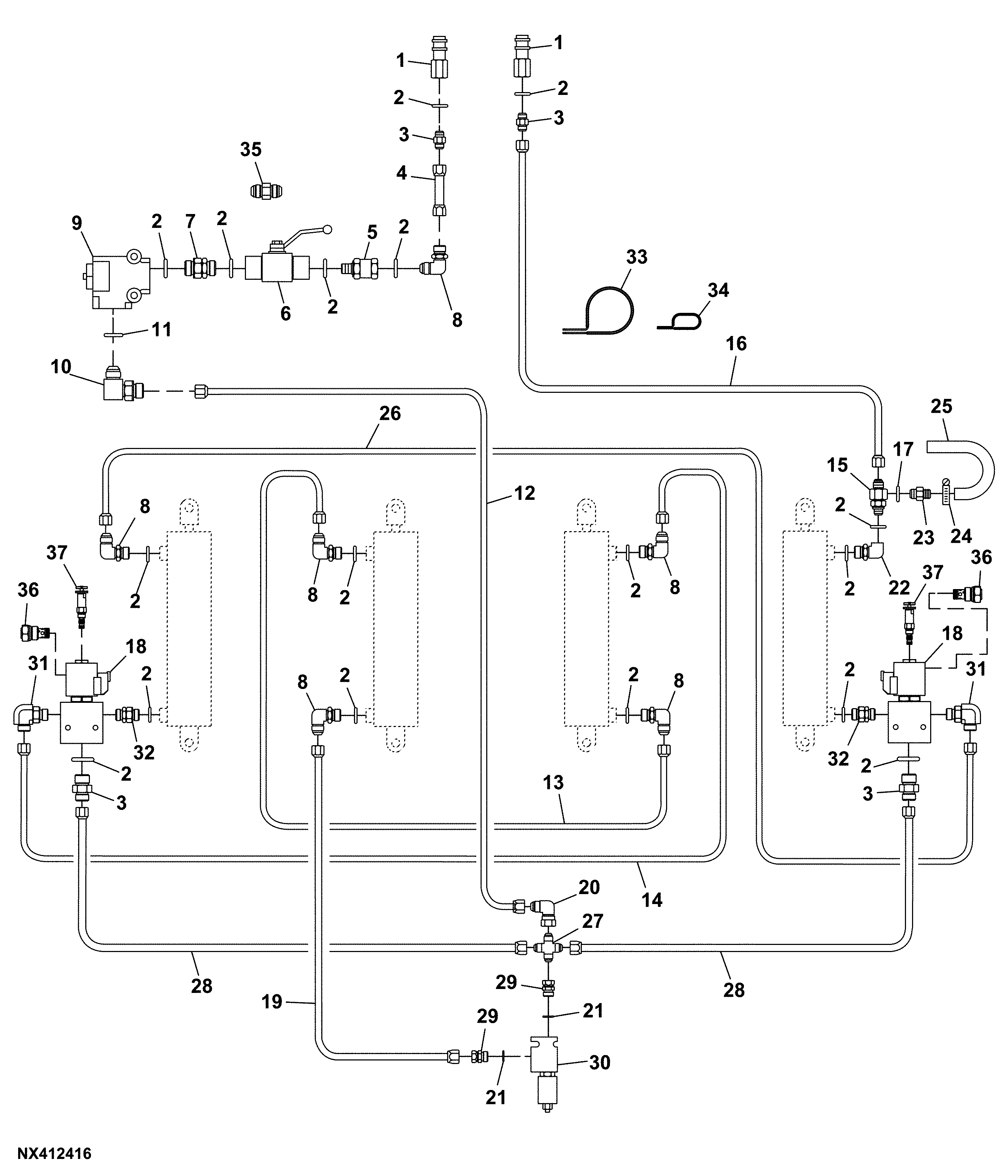

Single Point Depth Control System (3 - Section Machine) W/ TruSet™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR94522	2	Hydr. Quick Coupler Plug	-
2	R26375	17	O-Ring	-
3	R27237	2	Fitting	-
4	AA44235	1	Hydraulic Hose	10' Main Frame, 6' Wing 10' Main Frame, 8' Wing
4	AN235137	1	Hydraulic Hose	12' Main Frame, 6' Wing 12' Main Frame, 8' Wing 12' Main Frame, 10' Wing 12' Main Frame, 12' Wing
4	AN235118	1	Hydraulic Hose	15' Main Frame, 8' Wing 15' Main Frame, 10' Wing 15' Main Frame, 13' Wing
5	AN260207	1	Filter	-
6	AN281426	1	Valve	ORDER AFH216499
6	AFH216499	1	Valve	-
7	AN131153	1	Union Fitting	-
8	AT32332	8	Elbow Fitting	-
9	AN235086	1	Check Valve	SUB FOR AN231883
10	AH20193	1	Elbow Fitting	-
11	R26906	1	O-Ring	-
12	AA29975	1	Hydraulic Hose	15' Main Frame, 8' Wing 15' Main Frame, 10' Wing 15' Main Frame, 13' Wing
12	AA56897	1	Hydraulic Hose	12' Main Frame, 6' Wing 12' Main Frame, 8' Wing 12' Main Frame, 10' Wing 12' Main Frame, 12' Wing
12	AA40440	1	Hydraulic Hose	10' Main Frame, 6' Wing 10' Main Frame, 8' Wing
13	AN230288	1	Hydraulic Hose	10' Main Frame, 6' Wing 10' Main Frame, 8' Wing
13	AN230290	1	Hydraulic Hose	12' Main Frame, 6' Wing 12' Main Frame, 8' Wing 12' Main Frame, 10' Wing 12' Main Frame, 12' Wing
13	AN230323	1	Hydraulic Hose	15' Main Frame, 8' Wing 15' Main Frame, 10' Wing 15' Main Frame, 13' Wing
14	AA48889	1	Hydraulic Hose	10' Main Frame, 6' Wing
14	AN230318	1	Hydraulic Hose	10' Main Frame, 8' Wing 12' Main Frame, 6' Wing
14	AN230320	1	Hydraulic Hose	12' Main Frame, 8' Wing
14	AN230332	1	Hydraulic Hose	12' Main Frame, 10' Wing
14	AA39371	1	Hydraulic Hose	12' Main Frame, 12' Wing
14	AN233515	1	Hydraulic Hose	15' Main Frame, 8' Wing
14	AN233516	1	Hydraulic Hose	15' Main Frame, 10' Wing
14	AA36231	1	Hydraulic Hose	15' Main Frame, 13' Wing
15	AW16707	1	Union Fitting	INCLUDES R27449 WASHER, R26375 O-RING, R27448 NUT
16	AN235115	1	Hydraulic Hose	12' Main Frame, 12' Wing
16	AN235515	1	Bearing With Housing	15' Main Frame, 8' Wing
16	AN235119	1	Hydraulic Hose	15' Main Frame, 10' Wing
16	AN235120	1	Hydraulic Hose	15' Main Frame, 13' Wing
16	AN234893	1	Hydraulic Hose	12' Main Frame, 8' Wing
16	AN235121	1	Hydraulic Hose	12' Main Frame, 10' Wing
16	AA44751	1	Hydraulic Hose	10' Main Frame, 6' Wing
16	AN231624	1	Hydraulic Hose	12' Main Frame, 6' Wing
16	AN235122	1	Hydraulic Hose	10' Main Frame, 8' Wing
17	R26448	1	O-Ring	-
18	AKK21701	2	Needle	-
19	AA60259	1	Hydraulic Hose	10' Main Frame, 6' Wing 10' Main Frame, 8' Wing
19	AA40444	1	Hydraulic Hose	12' Main Frame, 6' Wing 12' Main Frame, 8' Wing 12' Main Frame, 10' Wing 12' Main Frame, 12' Wing
19	AA60258	1	Hydraulic Hose	15' Main Frame, 8' Wing 15' Main Frame, 10' Wing 15' Main Frame, 13' Wing
20	AH75164	1	Elbow Fitting	-
21	R26906	2	O-Ring	-
22	AE14428	1	Elbow Fitting	-
23	AA29209	1	Pressure Relief Valve	-
24	AR21837	1	Clamp	-
25	R38556	1	Hose	-
26	AN233528	1	Hydraulic Hose	15' Main Frame, 13' Wing
26	AN233525	1	Hydraulic Hose	15' Main Frame, 10' Wing
26	AN233535	1	Hydraulic Hose	15' Main Frame, 8' Wing
26	AN233526	1	Hydraulic Hose	12' Main Frame, 12' Wing
26	AN230334	1	Hydraulic Hose	12' Main Frame, 8' Wing
26	AA35041	1	Hydraulic Hose	12' Main Frame, 6' Wing
26	AN233517	1	Hydraulic Hose	10' Main Frame, 8' Wing
26	AN233515	1	Hydraulic Hose	10' Main Frame, 6' Wing
26	AN233532	1	Hydraulic Hose	12' Main Frame, 10' Wing
27	T72256	1	Union Fitting	-
28	AKK11575	2	Hydraulic Hose	10' Main Frame, 6' Wing
28	AKK11487	2	Hydraulic Hose	10' Main Frame, 8' Wing 12' Main Frame, 8' Wing 12' Main Frame, 10' Wing 15' Main Frame, 8' Wing
28	AA65076	2	Hydraulic Hose	12' Main Frame, 6' Wing
28	AKK34238	2	Hydraulic Hose	12' Main Frame, 12' Wing 15' Main Frame, 13' Wing SUB FOR APPL AKK11476
28	AA40459	2	Hydraulic Hose	15' Main Frame, 10' Wing
29	AFH210065	2	Adapter Fitting	ORDER AKK33936
29	AKK33936	2	Adapter Fitting	-
30	AKK20165	1	Solenoid Hydraulic Valve	ORDER AKK36317
30	AKK36317	1	Solenoid Hydraulic Valve	-
31	AT32334	4	FITTING	-
32	AN131153	2	Union Fitting	-
33	N205452	3	Clamp	-
34	R49921	11	Clamp	-
35	R34063	1	Fitting	-
36	AN403452	2	Check Valve	-
37	AN403453	2	Valve	-

Single Point Depth Control System (3 - Section Machine) W/ TruSet™

Нет текстового описания
