Открытый узел

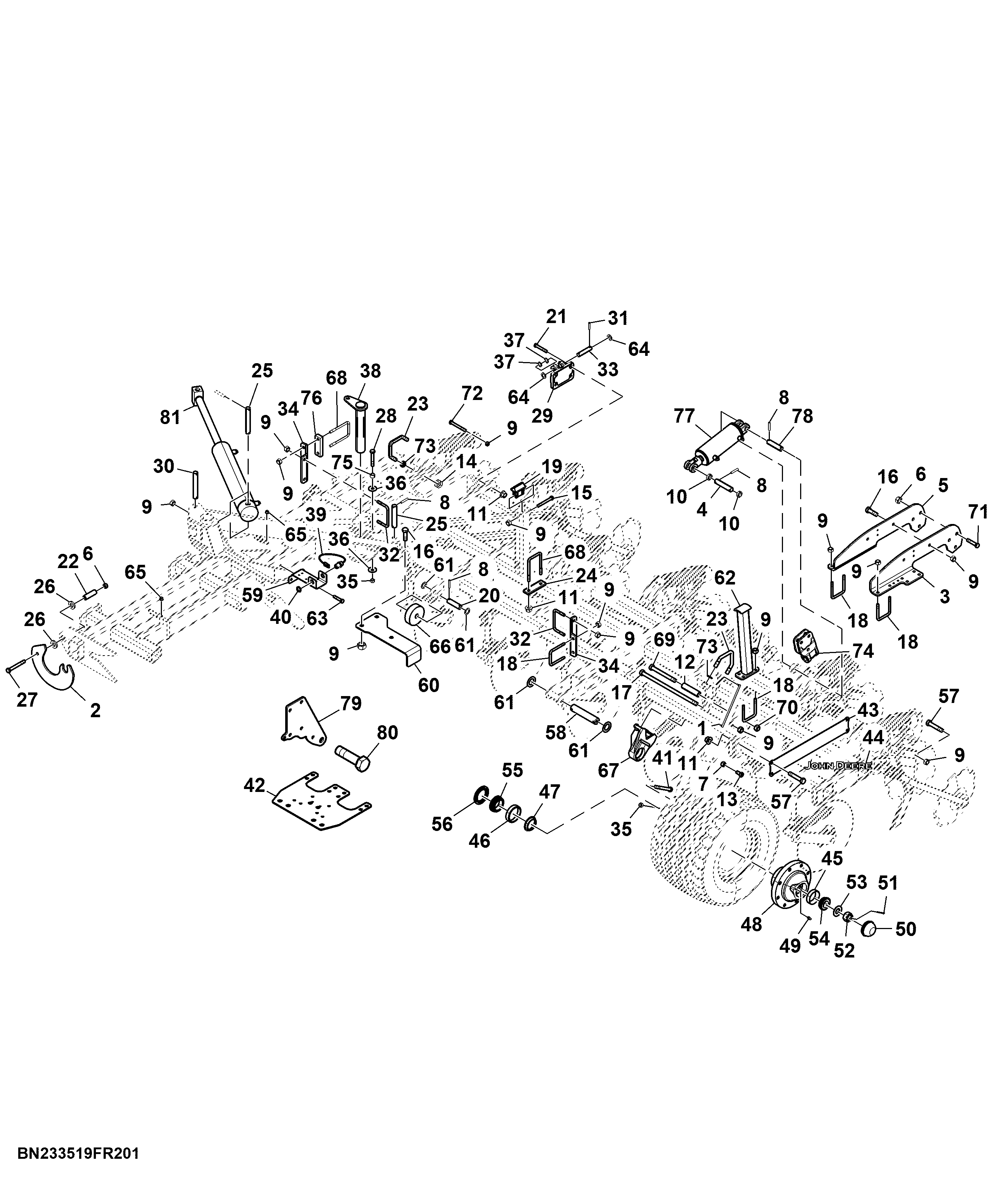

Sensor and Hardwares, 25 Row (1 of 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AN233140	1	Tie Rod Assembly	-
2	KK80267	1	Washer	-
3	KK80832	1	Bracket	-
4	N185294	1	Pin Fastener	-
5	KK80386	1	Bracket	-
6	K40016	30	Lock Nut	-
7	14H809	2	Nut	1/2"
8	E63018	24	Spring Pin	-
9	K40015	96	Lock Nut	-
10	N236526	2	Bushing	-
11	N169024	38	Lock Nut	-
12	N207407	1	Spacer	-
13	E11327	1	Bolt	-
14	K40017	22	Lock Nut	-
15	19H3174	5	Cap Screw	5/8" X 5-1/4"
16	19H1734	5	Cap Screw	5/8" X 2"
17	19H3470	1	Cap Screw	5/8" X 14"
18	N141174	8	U-Bolt	-
19	N236130	1	Stop	-
20	E73499	1	Pin Fastener	-
21	19H2726	8	Cap Screw	5/8" X 4"
22	N237339	1	Spacer	-
23	N331926	9	U-Bolt	-
24	N187451	1	Strap	-
25	N238352	1	Pin Fastener	-
26	N231749	14	Washer	-
27	19H1988	1	Cap Screw	3/4" X 6"
28	19H1820	1	Cap Screw	1/2" X 3"
29	N236105	2	Hinge	-
30	N238492	1	Pin Fastener	-
31	A36284	4	Pin	-
32	A20491	4	U-Bolt	-
33	N233905	2	Pin Fastener	-
34	KK83180	4	Bracket	-
35	K40014	14	Lock Nut	-
36	24M7180	2	Washer	13 X 37 X 3 mm
37	24H1448	4	Washer	1-1/32" X 1-1/2" X 0.120"
38	AA62235	1	Pin Fastener	-
39	AN372931	2	Sensor	-
40	KK84671	2	Nut	-
41	19H1739	1	Cap Screw	1/2" X 4-1/2"
42	KK89902	1	Plate	-
43	KK84213	1	Plate	-
44	JD5744	1	Label	-
45	JD8251	1	Bearing Cup	-
46	JD9170	1	Bearing Cup	-
47	R26632	1	Bushing	-
48	R49841	1	Hub	-
49	JD7844	10	Lubrication Fitting	-
50	R50992	1	Cap	-
51	11H213	1	Cotter Pin	3/16" X 1-3/4"
52	14H920	1	Nut	1"
53	M60706	1	Washer	-
54	JD8929	22	Bearing Cone	-
55	JD9041	25	Bearing Cone	-
56	AR26480	1	Seal	-
57	19H2641	18	Cap Screw	5/8" X 3-1/4"
58	N231296	1	Pin Fastener	-
59	KK85356	1	Bracket	-
60	KK85355	1	Bracket	-
61	24H1245	4	Washer	1-9/32" X 2" X 0.105"
62	AKK45499	1	Structural Tube	-
63	19H1863	2	Cap Screw	5/8" X 3"
64	24H1463	4	Washer	1-1/16" X 1-3/4" X 0.134"
65	N10215	14	Lock Nut	-
66	KK86551	1	Sleeve	-
67	N236398	2	Bracket	-
68	N141548	3	U-Bolt	-
69	19M7954	5	Cap Screw	M16 X 150
70	A31869	5	Lock Nut	-
71	19H1735	3	Cap Screw	3/4" X 3-1/2"
72	19H1923	8	Cap Screw	5/8" X 5-1/2"
73	R52006	16	Washer	-
74	N237243	1	Bracket	-
75	28H3400	1	Spacer	0.546" X 0.840" X 9/16"
76	N237370	2	Strap	-
77	AHC22848	1	Hydraulic Cylinder	-
78	N187499	1	Pin Fastener	-
79	KK90183	1	Anchor	-
80	19H3244	1	Cap Screw	5/8" X 2-1/4"
81	AH175702	1	Hydraulic Cylinder	-

Sensor and Hardwares, 25 Row (1 of 4)

Нет текстового описания
