Открытый узел

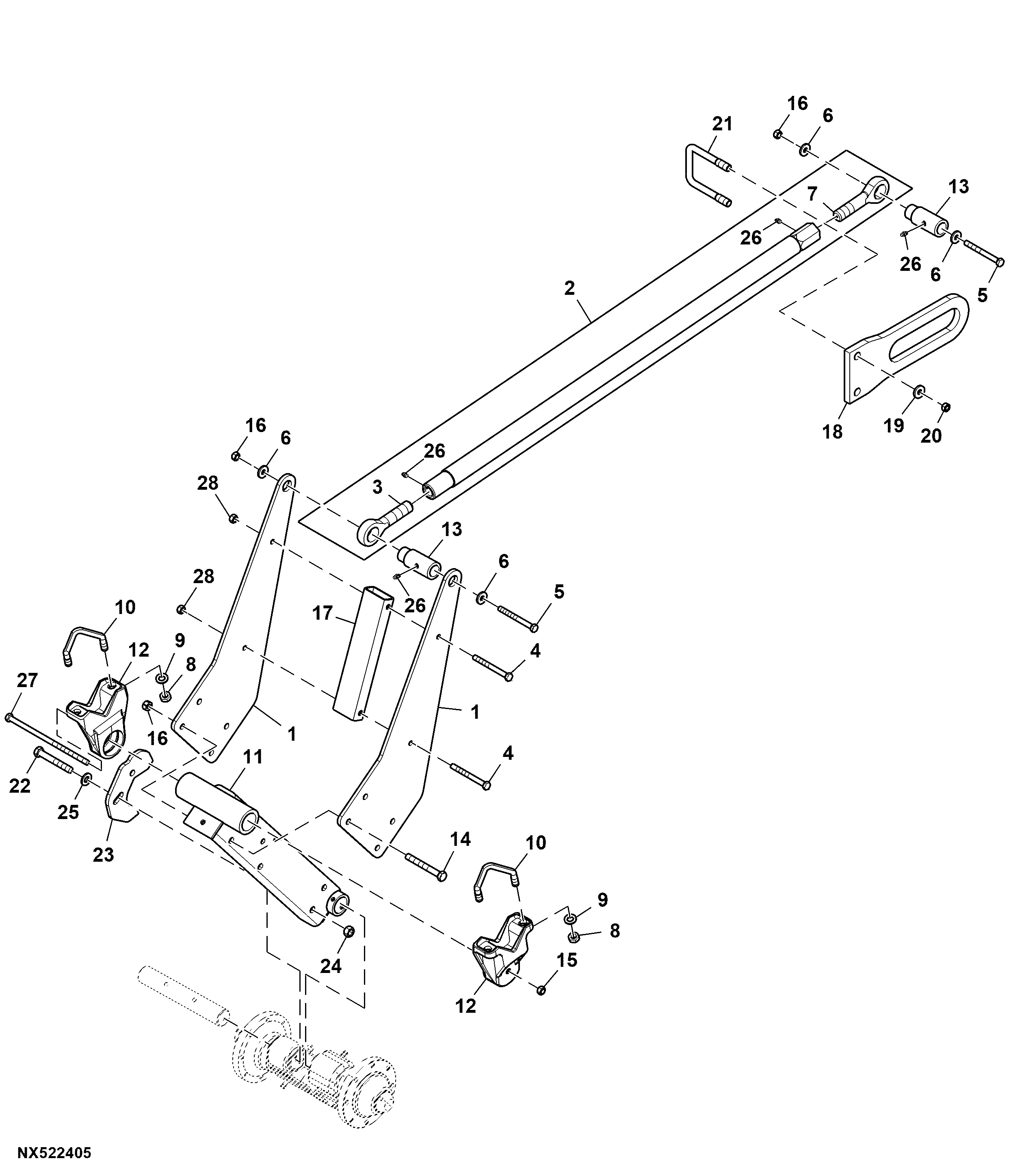

Rear Swing Arm, Walking Beam, 8 Bolt

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KK45927	2	Anchor	-
2	AN235107	1	Lift Link	INCLUDES N236029 AND N236028, 47’ to 62.5’ Base Machine, 5 Section
2	AN235109	1	Lift Link	INCLUDES N237741 AND N237740, 47’ to 62.5’ Base Machine, 5 Section
3	N236029	1	Eyebolt	USE WITH AN235107, LH
3	N237741	1	Eyebolt	USE WITH AN235109, LH
4	19M7954	2	Cap Screw	M16 X 150
5	19H3225	2	Cap Screw	3/4" X 6-1/2"
6	T119912	4	Washer	-
6	T151797	4	Washer	USE WITH (2) K40016 AND (2) 19H3225
7	N236028	1	Eyebolt	USE WITH AN235107, RH
7	N237740	1	Eyebolt	USE WITH AN235109, RH
8	K40017	4	Lock Nut	-
9	R52006	4	Washer	-
10	N331926	2	U-Bolt	-
11	AKK27032	1	Arm	-
12	N236398	2	Bracket	-
13	N237573	2	Bushing	44’ Base Machine and Larger
13	N237449	2	Bushing	-
14	19H3307	4	Cap Screw	3/4" X 6"
15	K40015	1	Lock Nut	-
16	K40016	6	Lock Nut	-
17	N237515	1	Structural Tube	-
18	N239054	1	Plate	Turnbuckle Lock 2.00
18	N239053	1	Plate	Turnbuckle Lock 1.25
19	T108039	2	Washer	-
20	K40014	2	Lock Nut	-
21	N131641	1	U-Bolt	-
22	19M7907	2	Screw	M20 X 140
23	KK46124	1	Stop	-
24	A31870	2	Lock Nut	-
25	24M7242	2	Washer	21.400 X 42 X 5 mm
26	JD7844	4	Lubrication Fitting	-
27	19H3470	1	Cap Screw	5/8" X 14"
28	A31869	2	Lock Nut	M16

Rear Swing Arm, Walking Beam, 8 Bolt
