Main Frame Wiring Harness, TruSet™

Нет текстового описания

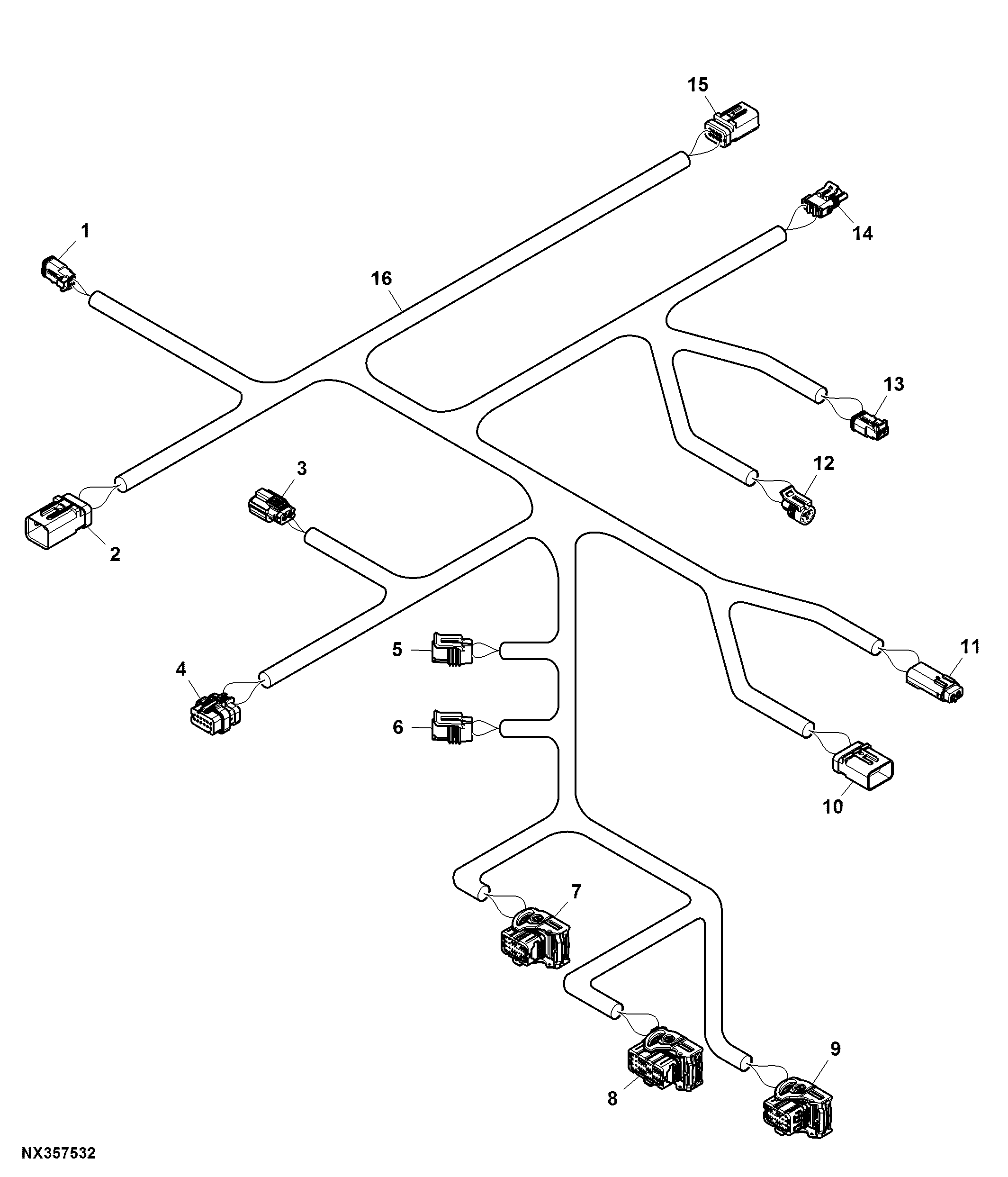

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7620	1	Electrical Connector Assy	-
1	57M7546	2	Elec. Connector Terminal	-
1	57M7534	1	Elec. Connector Housing	Mainframe Valve
2	57M9796	1	Elec. Connector Housing	RH Wing
2	57M9940	1	Elec. Connector Accessory	-
2	57M9813	8	Elec. Connector Terminal	-
3	57M9683	1	Elec. Connector Housing	Power Extension
3	57M10927	2	Elec. Connector Terminal	-
4	57M9800	1	Elec. Connector Housing	CAN Extension
4	57M9806	4	Elec. Connector Terminal	-
4	57M9808	4	Elec. Connector Terminal	-
4	57M9814	4	Elec. Connector Cavity Plug	-
5	57M8487	1	Electrical Connector Cap	-
5	R104933	2	Elec. Connector Terminal	-
5	57M12652	1	Elec. Connector Accessory	-
5	57M8267	1	Elec. Connector Housing	Fuse 1
6	57M8267	1	Elec. Connector Housing	Fuse 2
6	57M12652	1	Elec. Connector Accessory	-
6	57M8487	1	Electrical Connector Cap	-
6	R104933	2	Elec. Connector Terminal	-
7	57M10607	1	Elec. Connector Housing	Flex J3
7	57M10604	1	Elec. Connector Housing	-
7	57M10333	21	Elec. Connector Cavity Plug	-
7	57M10330	3	Elec. Connector Terminal	-
7	57M10331	2	Elec. Connector Terminal	-
7	57M10334	6	Elec. Connector Cavity Plug	-
8	57M10331	7	Elec. Connector Terminal	-
8	57M10334	3	Elec. Connector Cavity Plug	-
8	57M10330	12	Elec. Connector Terminal	-
8	57M10613	1	Elec. Connector Housing	-
8	57M10614	1	Elec. Connector Housing	Flex J2
8	57M10333	26	Elec. Connector Cavity Plug	-
9	57M10609	1	Elec. Connector Housing	Flex J1
9	57M10604	1	Elec. Connector Housing	-
9	57M10333	18	Elec. Connector Cavity Plug	-
9	57M10330	6	Elec. Connector Terminal	-
9	57M10331	1	Elec. Connector Terminal	-
9	57M10334	4	Elec. Connector Cavity Plug	-
9	57M10617	3	Elec. Connector Housing	-
10	57M9804	1	Elec. Connector Housing	CAN
10	57M9810	4	Elec. Connector Terminal	-
10	57M9812	4	Elec. Connector Terminal	-
10	57M9814	4	Elec. Connector Cavity Plug	-
11	57M10669	2	Elec. Connector Terminal	-
11	57M9685	1	Elec. Connector Housing	Power
12	57M7796	1	Elec. Connector Housing	Basket Pressure Sensor
12	L208939	1	Elec. Connector Accessory	-
12	57M10925	3	Elec. Connector Terminal	-
13	57M7534	1	Elec. Connector Housing	Basket Pressure Valve
13	57M11230	1	Elec. Connector Accessory	-
13	57M7620	1	Electrical Connector Assy	-
13	57M7546	2	Elec. Connector Terminal	-
14	RE12364	1	Electrical Connector Assy	MainFrame Sensor
14	57M7251	3	Elec. Connector Terminal	-
14	57M9219	3	Elec. Connector Seal	-
15	57M9796	1	Elec. Connector Housing	LH Wing
15	57M9940	1	Elec. Connector Accessory	-
15	57M9813	8	Elec. Connector Terminal	-
16	AKK25330	1	Wiring Harness	3 Section
16	AKK25331	1	Wiring Harness	5 Section
