Flow Control Valve and Lines, TruSet™, 5 Section

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A31869	16	Lock Nut	-
2	AA29209	1	Pressure Relief Valve	-
3	AKK22021	1	Hydraulic Hose	LGTH = 5550 mm
4	14M7260	8	Nut	M16
5	R125531	1	Cap	-
6	14M7273	4	Nut	M8
7	19M7862	8	Screw	M6 X 20
8	KK40762	4	Bracket	-
9	AKK22020	2	Hydraulic Hose	LGTH = 5025 mm
10	H224073	3	Tie Band	-
11	21H1176	4	Screw	0.112" X 1/2"
12	AH220366	1	Hyd. Quick-Connect Coupler	3/8"
13	T292583	1	Adapter Fitting	-
14	AR21837	1	Clamp	-
15	19M8225	4	Cap Screw	M12 X 280
16	KK40760	1	Bracket	-
17	R115850	1	Screw	-
18	38H5002	1	Adapter Fitting	-
19	KK28321	1	Cover	-
20	R132311	1	Brace	-
21	AN233013	1	Hyd. Quick-Connect Coupler	-
22	A58287	4	U-Bolt	-
23	AKK18713	1	Wiring Harness	Implement Valve Harness
24	N236868	1	Bracket	-
25	21H1383	4	Screw	0.190" X 2"
26	14H631	4	Nut	0.190"
27	12H378	4	Lock Washer	0.112"
28	KK28233	4	Plate	-
29	03M7185	4	Bolt	M8 X 25
30	AKK14514	1	Wiring Harness	SCV Extension Harness
31	N236870	1	Bracket	-
32	14M7397	8	Lock Nut	M6
33	14H1000	4	Nut	0.112"
34	KK27164	4	Spacer	-
35	AA59411	1	Hyd. Quick-Connect Coupler	-
36	KK28322	1	Cover	-
37	R124807	1	Cap	-
38	A31867	4	Lock Nut	-
39	19M7867	2	Screw	M8 X 25
40	37M7131	2	Screw	M6 X 20
41	R121965	1	Radiator Hose	-
42	AKK14519	1	Wiring Harness	SCV Lever Tractor Harness
43	14M7396	2	Lock Nut	M8
44	RE46689	2	Fitting Plug	-
45	AN233200	1	Wiring Harness	-
46	51M7041	1	O-Ring	11.300 X 2.200 mm
47	KK24758	4	Bracket	-
48	RE322903	2	Hyd. Quick-Connect Coupler	-
49	N237005	1	Adapter Fitting	-
50	24M7036	4	Washer	9 X 16 X 1.600 mm
51	T77613	1	O-Ring	-
52	AN400084	1	SCV Controller	-
53	R125878	1	Arm	-
54	R125879	1	Torsion Spring	-
55	R171535	1	Bracket	-
56	R217571	2	Torsion Spring	-
57	RE216530	1	Lever	-
58	RE267676	1	Potentiometer	-
59	19M7788	3	Screw	M12 X 25
60	N237525	1	Label	-
61	AKK13048	1	Electronic Control Unit	-
62	19M7696	8	Cap Screw	M16 X 380
63	38H1532	1	Tee Fitting	-
64	38H1163	1	Adapter Fitting	-
65	38H5005	2	Adapter Fitting	-
66	38H1178	1	Adapter Fitting	-
67	T77858	5	O-Ring	-
68	T77857	1	O-Ring	-
69	U12547	1	O-Ring	-
70	51M7047	2	O-Ring	23.600 X 2.900 mm
71	R26375	1	O-Ring	-
72	AN234783	1	Valve	-
72	AN234784	1	Valve	-
73	AKK22772	2	Hydraulic Hose	LGTH = 1050 mm, Extension Hose, TruSet™ Valve Stack

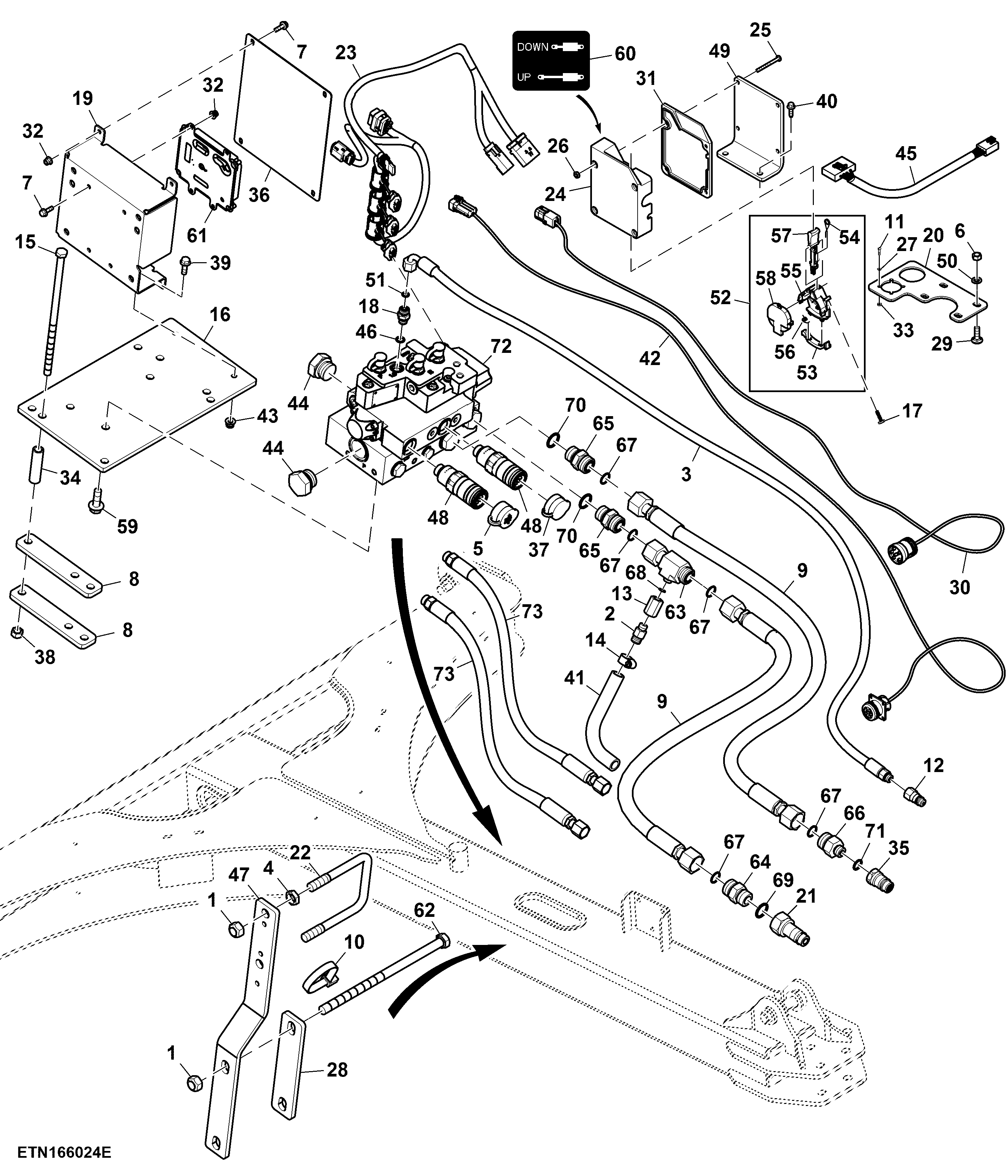

Flow Control Valve and Lines, TruSet™, 5 Section
