Flow Control Valve and Lines, TruSet™, 1 Section

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR21837	1	Clamp	-
2	KK28321	4	Cover	-
3	14H1000	4	Nut	0.112"
4	37M7131	2	Screw	M6 X 20
5	R115850	1	Screw	-
6	R121965	1	Radiator Hose	-
7	AN400084	1	SCV Controller	-
8	R125878	1	Arm	-
9	R125879	1	Torsion Spring	-
10	R171535	1	Bracket	-
11	R217571	2	Torsion Spring	-
12	RE216530	1	Lever	-
13	RE267676	1	Potentiometer	-
14	KK28322	1	Cover	-
15	14M7260	8	Nut	M16
16	A58287	4	U-Bolt	-
17	A31869	16	Lock Nut	-
18	AKK14519	1	Wiring Harness	SCV Lever Tractor Harness
19	14H631	5	Nut	0.190"
20	AKK14514	1	Wiring Harness	SCV Extension Harness
21	19M7867	4	Screw	M8 X 25
22	N236870	1	Bracket	-
23	KK40760	1	Bracket	-
24	AKK21506	2	Hydraulic Hose	LGTH = 4536 mm
25	H224073	3	Tie Band	-
26	21H1176	4	Screw	0.112" X 1/2"
27	AA29209	1	Pressure Relief Valve	-
28	KK28233	4	Plate	-
29	T292583	1	Adapter Fitting	-
30	AN233013	1	Hyd. Quick-Connect Coupler	-
31	AN234783	1	Valve	-
32	51M7041	1	O-Ring	11.300 X 2.200 mm
33	03M7185	4	Bolt	M8 X 25
34	A31867	4	Lock Nut	-
35	AN233200	1	Wiring Harness	-
36	R132311	1	Brace	-
37	21H1383	4	Screw	0.190" X 2"
38	R125531	1	Cap	-
39	AKK18713	1	Wiring Harness	Implement Valve Harness
40	KK24758	4	Bracket	-
41	14M7273	4	Nut	M8
42	19M8225	4	Cap Screw	M12 X 280
43	38H5002	1	Adapter Fitting	-
44	N237525	1	Label	-
45	AKK13048	1	Electronic Control Unit	-
46	T77613	1	O-Ring	-
47	24M7036	4	Washer	9 X 16 X 1.600 mm
48	RE46689	2	Fitting Plug	-
49	AA59411	1	Hyd. Quick-Connect Coupler	-
50	AH220366	1	Hyd. Quick-Connect Coupler	3/8”
51	N236868	1	Bracket	-
52	N237005	1	Adapter Fitting	-
53	19M7862	6	Screw	M6 X 20
54	12H378	4	Lock Washer	0.112"
55	KK27164	4	Spacer	-
56	RE322903	2	Hyd. Quick-Connect Coupler	-
57	19M7788	1	Screw	M12 X 25
58	19M8981	8	Cap Screw	M16 X 300
59	14M7397	6	Lock Nut	M6
60	R124807	1	Cap	-
61	14M7396	1	Lock Nut	M8
62	38H1532	1	Tee Fitting	-
63	38H1163	1	Adapter Fitting	-
64	38H5005	2	Adapter Fitting	-
65	38H1178	1	Adapter Fitting	-
66	T77858	5	O-Ring	-
67	T77857	1	O-Ring	-
68	KK40762	4	Bracket	-
69	51M7047	1	O-Ring	23.600 X 2.900 mm
70	R26375	1	O-Ring	-
71	AKK21505	1	Hydraulic Hose	LGTH = 4971 mm
72	AKK22772	2	Hydraulic Hose	LGTH = 1050 mm

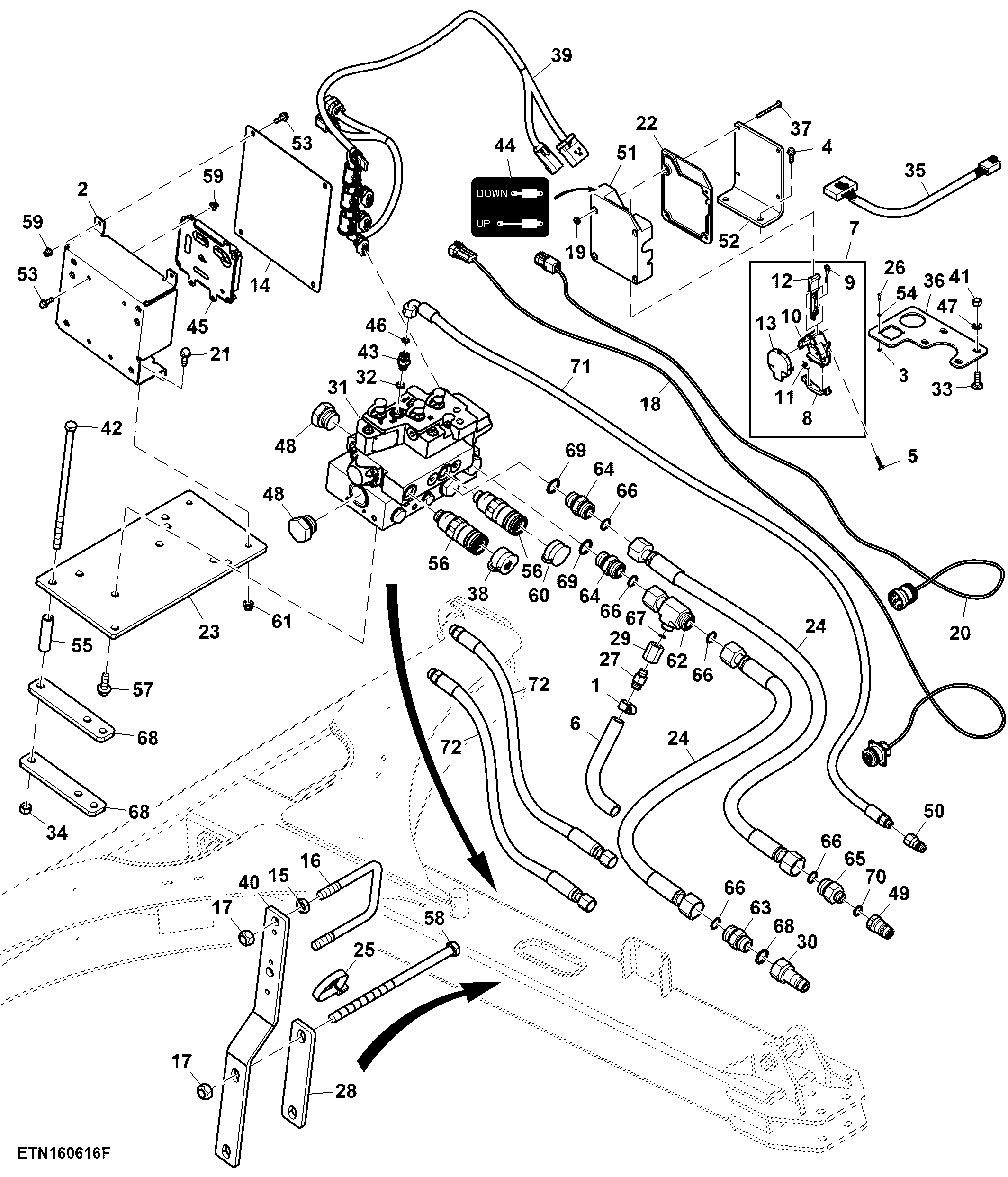

Flow Control Valve and Lines, TruSet™, 1 Section
